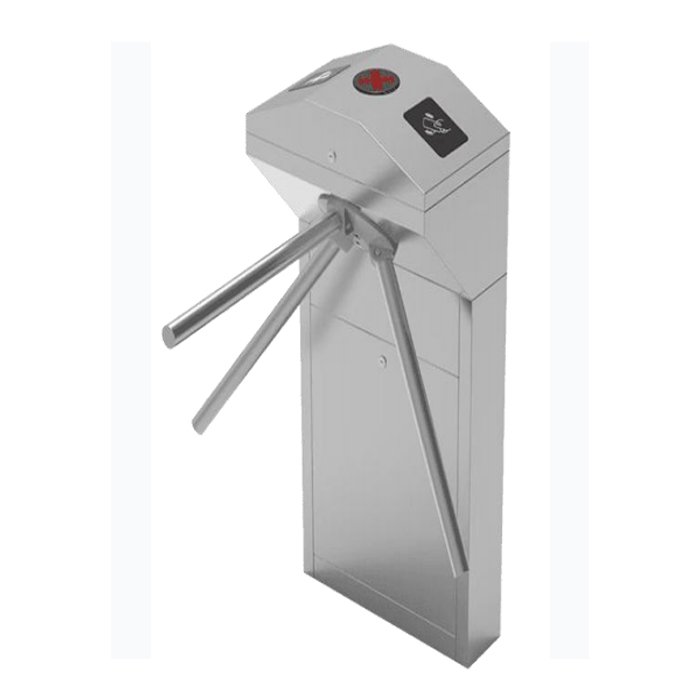

EW-TTG302
Tripod Turnstile Gate
EW-TTG302 is a Semi-Automatic Tripod Turnstile designed to ensure smooth and easy passage with minimal passing resistance. It offers versatile working modes, including One-Way Traffic and Two-Way Traffic operation, all configurable through buttons on the main control board.
In case of a power outage, the arms automatically drop for unimpeded emergency evacuation. Additionally, the turnstile features obstacle detection with automatic stopping for enhanced safety. It seamlessly integrates with facial recognition, fingerprint, biometric, and contactless access control systems.
Key Features
- Failure-proof electromagnetic solenoid valves rated for 5 million operation cycles
- Premium Grade SS304 stainless steel housing construction for life-time durability
- Automatic arm-drop mechanism in case of power failure / emergency
- High temperature resistant, zero-attrition drive mechanism for minimal maintenance
- Low noise operation with high-intelligence electronic control system
- Obstacle detection with automatic stopping function for enhanced user safety
- Seamless integration with RFID, Facial Recognition, Fingerprint, QR, and PIN readers
Description
Technical Specifications
| Specification | Details |
|---|---|
| Integration | Face, Finger, Card, PIN & QR |
| Housing Material | SS304 Stainless Steel |
| Passage Width | 500 mm |
| Dimension | 510 (L) × 310 (W) × 1010 (H) mm |
| Traffic Direction | Bi-Directional |
| Flow Rate | 25 – 30 People / min (Normally Open Mode) 15 – 20 People / min (Normally Closed Mode) |
| Opening Signal | Dry Contact Signal |
| Lifetime | 5 Million Cycles |
| Power Consumption | 30 – 60 W |
| Operating Temperature | -20°C to +75°C |
