EW-TTG301

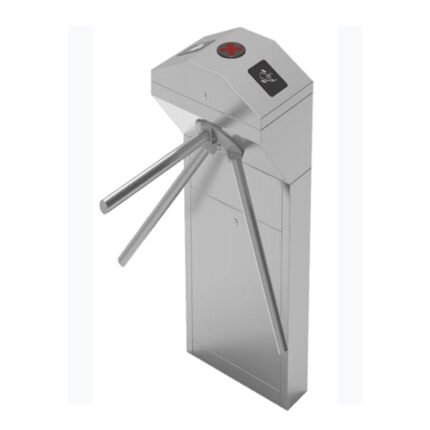

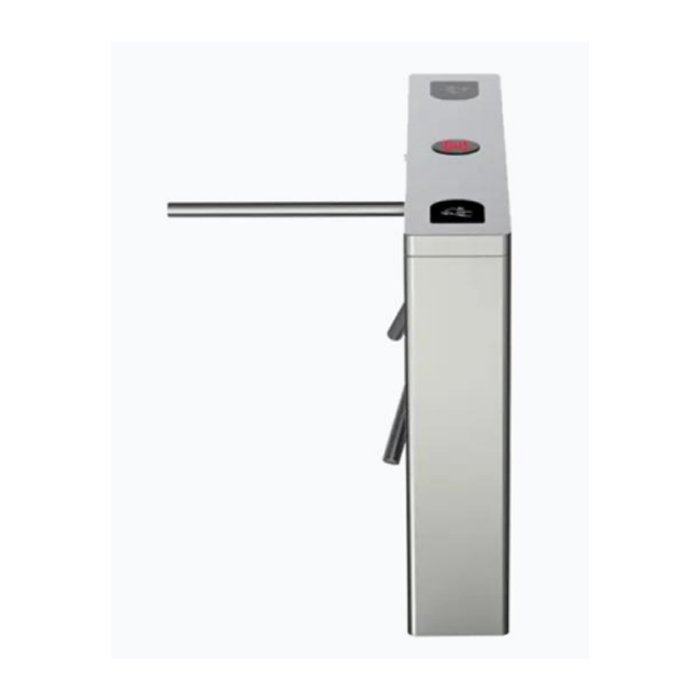

Bridge Type Tripod Turnstile Gate
EW-TTG301 is a Bridge Type Tripod Turnstile Gate designed to ensure effortless passage with minimal resistance. It offers multiple operational modes, including bi-directional and single-directional operation, all of which can be easily configured using buttons on the main control board.
In the event of a power outage, the arms automatically lower and rise again when power is restored. The gate also features automatic stopping upon detecting obstacles, ensuring safety. Additionally, it supports integration with facial recognition and other biometric systems for a seamless, contactless user experience.
Key Features
- Failure-proof electromagnetic solenoid valves rated for 5 million operation cycles
- Premium Grade SS304 stainless steel and acrylic construction for lifetime durability
- Automatic arm dropping on power outage and automatic rise upon power restoration
- High temperature resistant, zero-attrition drive mechanism for minimal maintenance
- Low noise operation with high-intelligence electronic control system
- Obstacle detection with automatic stopping function for enhanced safety
- Seamless integration with facial recognition, fingerprint, QR, and biometric readers
Description
Technical Specifications
| Specification | Details |
|---|---|
| Type | Bridge Type |
| Integration | Face, Finger, Card, PIN & QR |
| Housing Material | SS304, Acrylic |
| Passage Width | 520 mm |
| Dimension | 1200 (L) × 220 (W) × 980 (H) mm |
| Traffic Direction | Bi-Directional |
| Flow Rate | 25 – 30 People / min (Normally Open Mode) 15 – 20 People / min (Normally Closed Mode) |
| Opening Signal | Dry Contact Signal |
| Lifetime | 5 Million Cycles |
| Power Consumption | 30 – 60 W |
| Operating Temperature | -20°C to +70°C |
