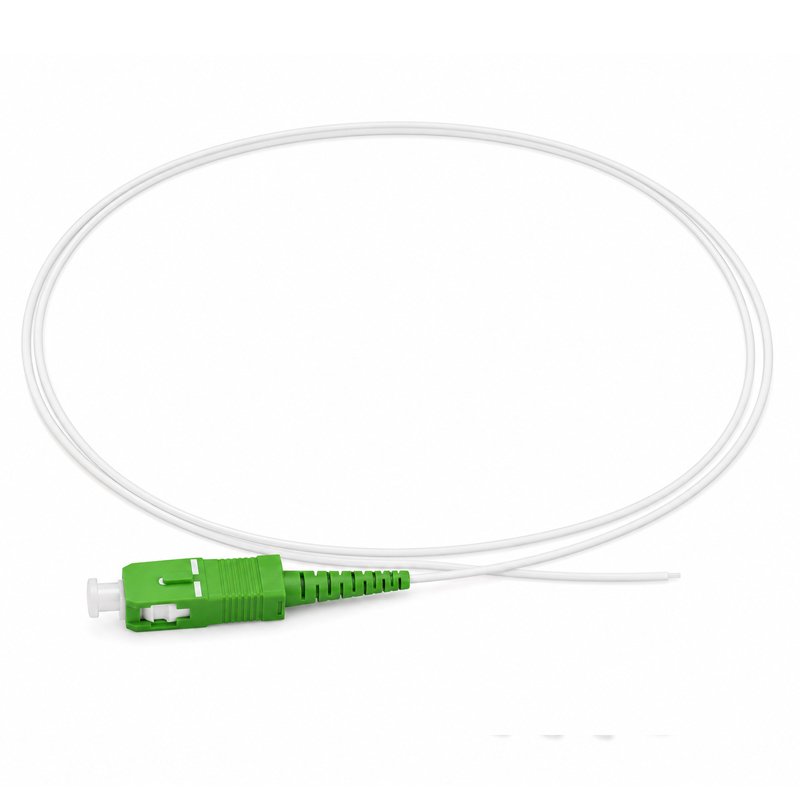

The SC/APC & SC/PC Simplex Single Mode Fiber Pigtail is a premium-quality fiber optic cable assembly designed for high-speed optical communication applications. Manufactured using high-grade optical fiber and precision ceramic ferrules, this pigtail ensures stable connectivity, low signal attenuation, and excellent transmission performance for telecom, broadband, CATV, and networking systems.

Equipped with SC/APC and SC/PC connectors, the pigtail provides secure and reliable optical connections with low reflection and high return loss. Its simplex single mode design is suitable for long-distance optical transmission and supports efficient data communication in various fiber optic environments.

The compact 0.9mm cable structure with 1.5-meter length makes it ideal for patch panels, splice closures, fiber distribution frames, and communication cabinets. Designed according to Telcordia GR-326-CORE standards, the product ensures high durability, excellent mechanical stability, and long service life.

Features:

• SC/APC and SC/PC connector support
• Simplex single mode fiber pigtail
• 0.9mm cable diameter
• 1.5-meter cable length
• APC and PC polishing options
• Low insertion loss and high return loss
• Ceramic ferrule for stable connectivity
• High tensile strength and durability
• Excellent bending performance
• Telcordia GR-326-CORE compliant

Technical Specifications:

• Single Mode Fiber: ITU-T G.652D
• Multi Mode Fiber: ITU-T G.651
• Cable Diameter: 0.9mm / 2.0mm / 3.0mm options
• Fiber Diameter: 9/125µm, 62.5/125µm, 50/125µm
• Insertion Loss: SM < 0.3dB, MM < 0.3dB
• Return Loss: PC > 45dB
• Tensile Strength: 10N
• Minimum Bending Radius: 35mm

Applications:

• Telecommunications systems
• Fiber optic patch panels
• CATV networks
• Data communication networks
• Fiber distribution frames
• Broadband optical communication systems
