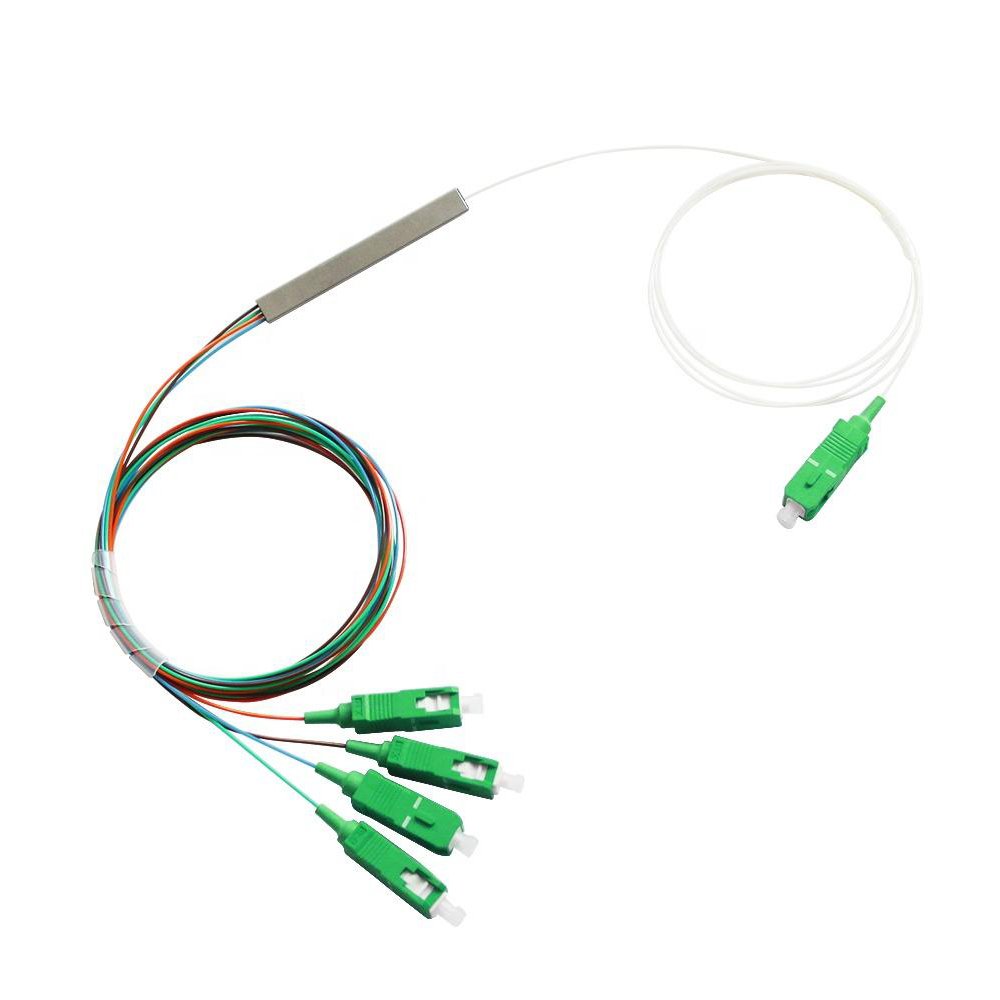

The 1*4 Splitter With SC/APC or SC/PC Connector is designed for FTTH optical communication networks and provides stable optical signal distribution with high reliability and low PDL.

The splitter supports compact installation and is suitable for telecom, broadband and fiber distribution applications.

Features:

• Low Insertion loss and Low PDL
• Uniform power splitting
• High reliability
• Excellent environmental stability
• Compact size and various package
• Use: FTTH
• Box material: Aluminum with paint spraying
• Connector: SC/APC, SC/PC
• Splitter type: 1*4
• Fiber diameter: 0.9mm
• Operation wavelength: 1260-1650
• Insertion loss: < 7.1dB
• PDL: < 0.15dB
• Return loss: >55dB
• Operating temperature: -40°C ~ 85°C
