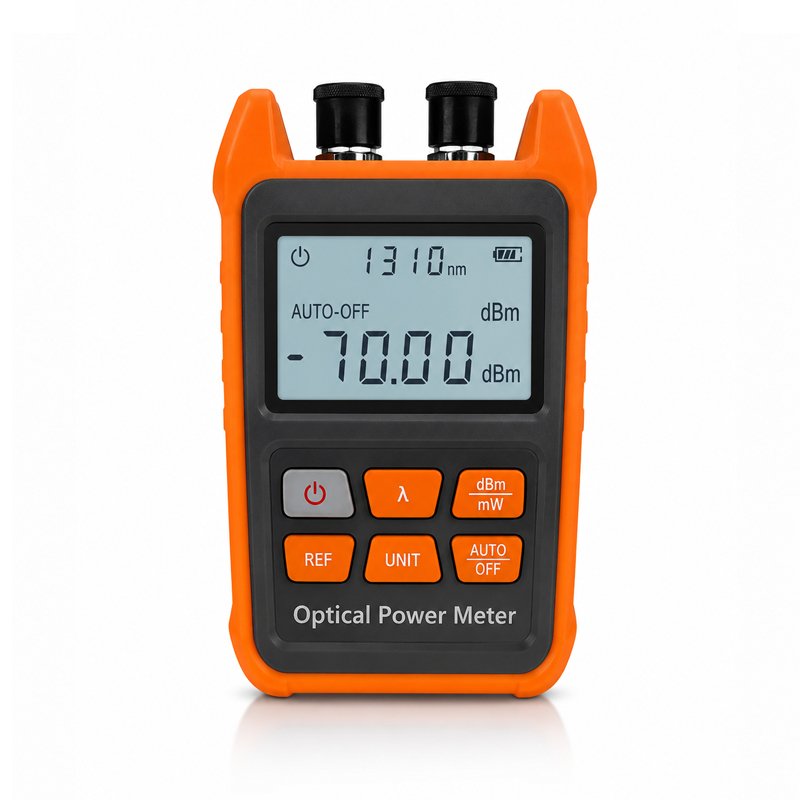

Power Meter
Features:
- Large LCD display with backlight function
- The function of both optical power meter and VFL
- Compact size, Portable and rugged, Easy to use
- 3xAA batteries or AC adapter power supply
- Optional Interchangeable Universal 2.5 & 1.25mm adaptor
Description
A 650 nm VFL fault finding laser is an option for the optical power meter. Compared to a conventional VFL pen, advantages include less equipment to carry, long battery life and additional connector safety & flexibility.
| OPM | ||
|---|---|---|
| Wave Range | 800nm~1700nm | 800nm~1700nm |
| Connector | Universal FC/SC/ST | Universal FC/SC/ST |
| Detector Type | InGaAs | InGaAs |
| Power Range | -70dBm ~ +6dBm | -50dBm ~ +26dBm |
| Uncertainty | ±5% | |
| Calibration Wave | 850/980/1300/1310/1490/1550/1625/1650nm | |
| Linear display: 0.1% Logarithmic display: 0.01dBm |
||
| VFL (Options) | ||
| Wave | 650nm ± 30nm | |
| Output Power | 2mW / 10mW / 30mW / 50mW | |
| Mode | CW / 1Hz / 2Hz | |
