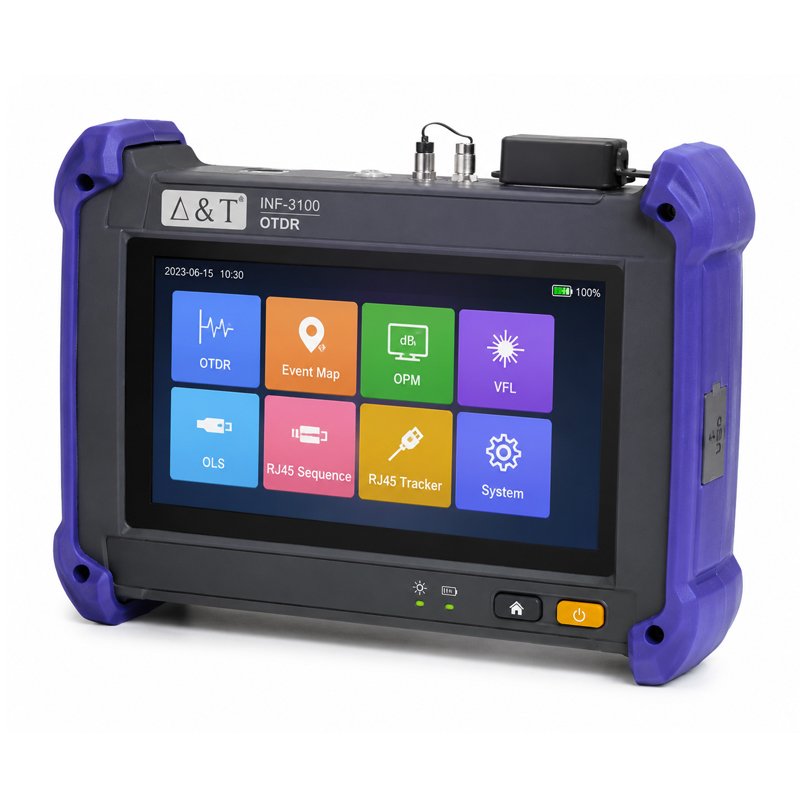

OTDR (INF-3100)
- Full touch-screen Design, realise super fast image processing. Finger combination control zoom in and out.
- Large-capacity Li-battery, can self-charging & reverse charging.
- One-button testing, Event map realise intelligent link analysis.
- Can be expanded to 150G with U disk, large capacity of trace storage.
- 5-inch HD capacitive screen, can comply Human-computer interaction unit perfectly.
- Multiple wavelengths available.
- Realise with light testing self protection system.
- Support testing under weak light conditions.
Description
Specifications:
- Wavelength(nm): 1310/1550nm
- Dynamic Range(dB): 24/22dB
- Pulse width:
5ns/10ns/20ns/50ns/100ns/300ns/1.0us/2.5us/10us/20us - Event Dead zone (M): 2
- Attenuation Dead zone (m): 10
- Distance range (km): 0.5~160 Km
- Distance uncertainty: ±(1+0.005% × Distance + Sampling Resolution)
- Loss Measurement Accuracy: ±0.05dB/dB
- Data sampling point: 12800
- Memory Capacity: 1000 Curves
- Fiber Type: SM
- LCD Size: 5-inch HD color touch screen
- Capacity of screen touched: >10 Million times
- Standard interface: FC/SC/ST/LC Optional
