EW-O6FC
Description
Specification

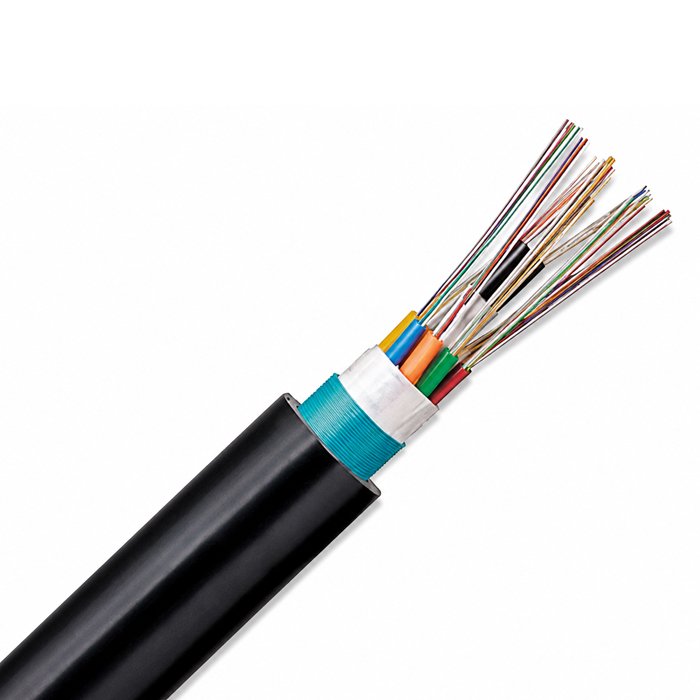

Fibre Cable for Networking
| Fibre count | 6 |
| Jacket material | LSZH (Low Smoke Zero Halogen) |
| Fibre type | Single-mode OS2 |
| Operational temperature range | -20°C to +70°C |
| Storage temperature range | -20°C to +70°C |
| Type of tube / no. of tube / no. of core per tube | Unitube1/6 |
| Cable Armouring | Armored with ECCS tape |
| Each meter printed with sequential length counter of cable apart from marking requirement as per relevant specifications and certifications | YES |
| Availability of complete and satisfactory type test Report from Central Government / NABL / ILAC accredited laboratory to conformity of the Specification | YES |
| Nominal Cable weight Kg/Km – Must declare | NA |
| Test report Number | NA |
| Report date | NA |
| Name and address of Lab | NA |
| All the test reports and certificates shall furnish to the buyer/consignee on demand | YES |
| Maximum Crush Resistance (short) | 9/125 lbs/in (220 N/cm) |
| Maximum Crush Resistance (long) | 63 lbs/in (110 N/cm) |
| Minimum Bend Radius (installation) | 20 × OD |
| Minimum Bend Radius (in service) | 10 × OD |
| Max Tensile load | Short term: 1600 N |
| Installation temperature range | -30°C to +70°C |
| Loose tube diameter | 2.5 ± 0.2 mm |
