EW-O6FC
Product Description:

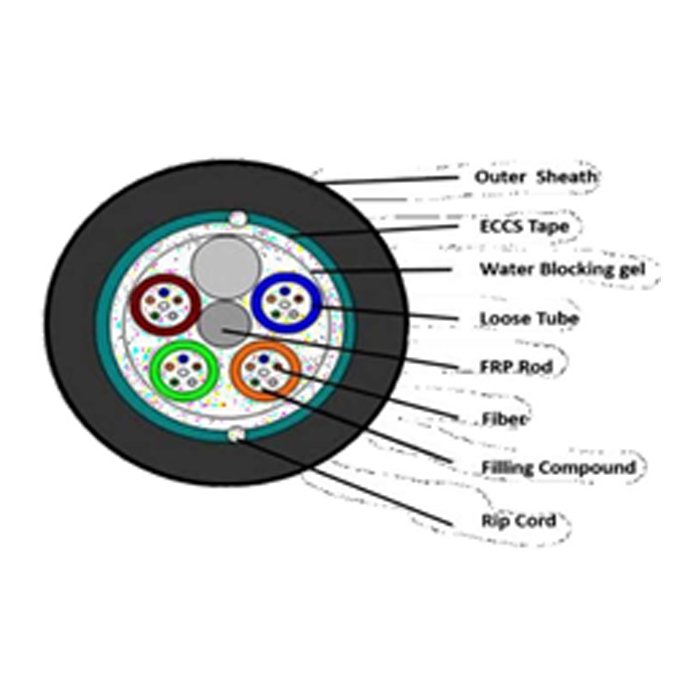

The Outdoor fiber optic cables are PBT unitube with colored fiber cores. The constructions are of water-blocking gel material with Non-Metallic Central Strength member. This cable has HDPE outer jacket makes it perfect for outdoor applications.
Product Application
- HDPE jacket.
- Water proof layer & excellent moisture resistance provided.
- Central Loose tube with jelly compound.
- Excellent consistence performance.
- Covered under 3C3 Performance Warranty.
- Each meter Printed Sequential Length, Certifications and Specification.
- Fiber colors: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Aqua.
Description
Mechanical
| Fiber Count | 06 |
| Model | EW-06FC |
| Outer Diameter (mm) | 6.8±0.3 / 6.2±0.3 |
| Thickness of Jacket (mm) | 1.8±0.2 / 1.4±0.2 |
| Nominal Cable Weight (kg/km) | 34 / 45 |
| Short Term Pulling Tension | 1500 (N) |
| Long Term Pulling Tension | 600 (N) |
| Crush Resistance (Short) | 1000 N / 100 mm |
| Crush Resistance (Long) | 300 N / 100 mm |
| Bend Radius (Short) | 20D |
Environment
| Bend Radius (Long) | 10D |
| Storage Temperature | -40°C to +60°C |
| Operating Temperature | -20°C to +60°C |
| Jacket Material | HDPE |
| Cable Size | Standard Length |
| Installation Temperature | -10°C ~ +40°C |
| Country of Origin | India |
| Certification & Standards | ISO / CE / FCC / ROHS |
| IEC 60793-1-2 / 60794-1-2 | |
| ITU-T REC G.652D | |
| Telcordia GR-20-core |
Optical Fiber
| Parameter | 1310Â nm | 1550Â nm |
|---|---|---|
| Fiber Type | 9/125 µm (OS2) | |
| Maximum Attenuation (dB/km) | 0.36 | 0.22 |
| Minimum Bandwidth (MHz·km) | — | |
Characteristics (cabled) Single-Mode – Matched-Cladded optical fibers (ITU)
| Fiber & Type | 9/125 / G.652D |
| Mode Field Diameter (µm) | 9.2 ± 0.4 |
| Cladding Diameter (µm) | 125 ± 0.7 |
| Dispersion (ps/nm·km) @ 1310 nm | ≤ 3.5 |
| Dispersion (ps/nm·km) @ 1550 nm | ≤ 18 |
| PMD (ps/√km) | ≤ 0.2 |
| Cable Cutoff Wavelength (nm) | ≤ 1260 |
