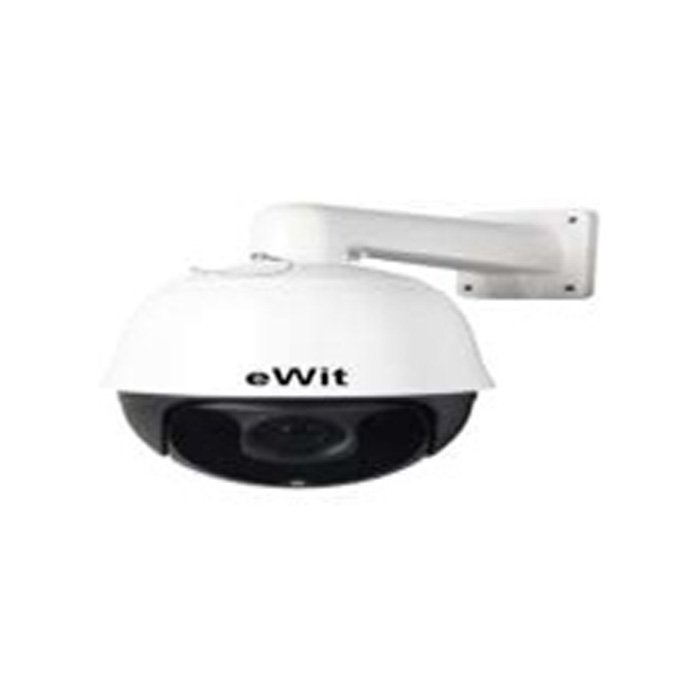

EW-IP40100Z-02
| FEATURES | |
|---|---|
| White Balance ( Indoor/Out door/Manual Selectable) | Yes |
| Auto Gain Control (On/Off selectable) | Yes |
| Back Light Compensation | Yes |
| Remote Administration (Remote configuration and status using web based tool) | Yes |
| Remote System Update Over Network | Yes |
| PC Client (PC application client with a channel recording feature support) | Yes |
| Web Client (Viewer through HTTP system configuration) | Yes |
| On Screen Display in English | Yes |
| ONVIF Support | Yes |
| Presets | 300 |
| Group Touring | 0 |
| Zones | 4 |
Description
| IMAGE SENSOR | |
|---|---|
| Image Sensor Type | Â CMOS |
| Â Image Sensor Size |
 0.4 inch |
| Â Camera Image Sensing capacity (Picture Mode) |
 4MP |
| Â Resolution |
 4MP(2560×1440),Full HD (1920 x 1080 Pixel) |
| Â Day/Night Capable |
 Yes |
| Â IR illumination Range(mtr) |
 100 |
| Camera | |
| Â Type of Camera Housing |
 DOME CAMERA |
| Â IP Camera |
 Yes |
| Â PTZ Camera |
 Yes |
| Optics | |
| Â Lens Type |
 Motorized Varifocal |
| Â Focal Length(mm) |
 4.3 – 129 |
| Â Iris Control |
 Yes |
| Â Focus Mode |
 Auto,Zooming,One Push,Auto back Focus |
| Video | |
| Â Frame Rate (fps) |
 25,30,15,20 |
| Â Video Compression |
 H.264,H.265,H.265+,MJPEG |
| Â Video Streaming |
 Triple compressed stream |
| PAN / TILT / ZOOM | |
| Â Panning Range |
 0-360 |
| Â Pan Speed (deg/sec) |
 320 |
| Â Tilt Range below horizontal (deg) |
 0-90 |
| Â Tilt Range above horizontal (deg) |
 0-5 |
| Â Tilt Speed (deg/sec) |
 120 |
| Â Optical Zoom |
 20X |
| Â Digital Zoom |
 16X |
| Security | |
| Â Multi Level User ID/Password |
 Yes |
| Â IP Address Filtering |
 Yes |
| Â Encrypted Data Transmission |
 HTTPS (SSL/TSL) |
| Performance | |
| Â Minimum Illumination for Capturing Color Image |
 0.005 lux |
| Â Electronic Shutter Speed(sec) |
 1/1 to 1/30,000 |
| Â WDR (Wide Dynamic Range) |
 DWDR |
| Â SNR (Signal to Noise Ratio) |
 50-60 |
| Network | |
| Â Supported Protocols |
 UDP,SNMP,IGMP,DHCP,RTP,RSTP,HTTP,SMTP,FTP,ICMP,HTTPS,DNS,DDNS,RTSP,RTCP,NTP,UPnP,QoS,T CP/IP |
| Â IP Support |
 Static,Dynamic |
| Â Signal Processing |
 Digital Signal Process |
| Â IPv6 ready |
 Yes |
| Â Wireless |
 No |
| Â Simultaneou s Connections |
 10 |
| Storage | |
| Â On Board SD Card Support |
 No |
| Â SD Card Memory(GB) |
 NA |
| Housing | |
| Â Installation Type |
 Indoor,Outdoor |
| Â Material of the Housing construction |
 Plastic |
| Â Protection |
 IP67 |
| Â Vandal Resistant Housing |
 Yes |
| Â If Yes, IK rating |
 NA |
| Â Mounting bracket |
 Pole Mounted |
| Â Weight |
 2.5 kilogram |
| Â Dimensions (mm x mm x mm) |
 – |
| Power Supply | |
| Â Power Input |
 12 V DC |
| Â Power Consumption |
 20 Watt |
| Â Suitable Adapter Shall be Supplied to Make the Equipment Work on 230 V (+/- 10 %), 50 Hz |
 NA |
| Operating | |
| Â Warranty |
 2 year |
| Â Time for Replacement of Defective Product During Warranty Period |
 72 hour |
| Â Supply of Compatible drivers and software included |
 Yes |
