EW-CT608
Product Description:

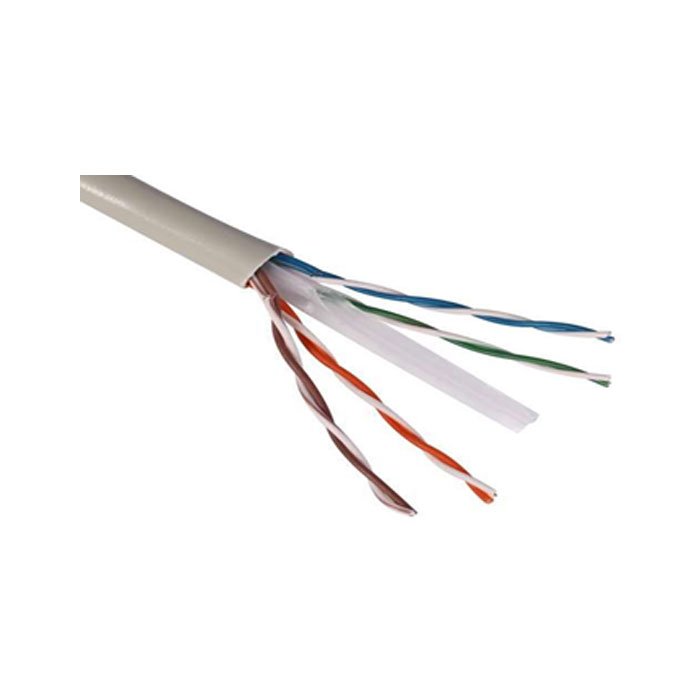

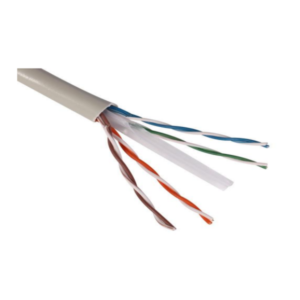

eWit 24/23 AWG copper wire insulated with Polyethylene. Two insulated conductors twisted together to form a pair and four such pairs seprated by a cross filler form the core unit jacketed with flame retardant PVC/LSZH. Enhanced performance cable enables delivering high speed network.
Flame Rating:
PVC-CM/CMR/CMX LSZH-IEC 60332-1; IEC 60754 1&2; IEC
61034-2 Specified and tested upto 250MHz or higher if required Compliant to ANSI/TIA 568-C.2 Cat6, ISO/IEC 11801 Class E
Description
Product Application:
10 Base T (IEEE 802.3)
100 Base T (IEEE 802.3U)
1000 BASE-T (IEEE 802.3ab)
1000 BASE-TX
TP-PMD (ANSI X3T9.5) 100 Mbps CDDI
ATM 155
4/16 Mbps Token Ring (IEEE 802.5) Meets IEEE802.3af & 802.3at PoE
| Features | Specification |
|---|---|
| Standard Length: | 305 Meters |
| Cable Type: | UTP Solid CAT6 |
| No of Wires: | 4 Pair |
| Insulation: | High Density Polyethylene |
| Rip Cord Material: | Nylon |
| Pairs: | 2 Insulated conductors twisted together |
| Construction: | 23AWG |
| Sheath: | FR-PVC Insulation thickness 0.2mm nominal |
| Insulation Thickness: | 0.22±0.02mm |
| Insulation Diameter: | 0.93±0.05mm |
| Characterstic Impedance | 100 ± 15Ω |
| Insulation Resistance: | Min. 5000 mega ohms-km at 20°C |
| Cable Diameter: | 6.1 mm nominal |
| Insulation Material: | Aluminium/ Polyester Foil + Tinned copper Braiding |
| Conductor Resistance: | ≤ 9.38 Ω/100m |
| Insulation Resistance: | 100M Ω |
| Delay Skew: | <45nS |
| NVP (%): | 69% |
| Mutual Capacitance: | ‹ 5.6nF/100m |
| Resistance Unbalance: | 5% Max |
| Capacitance Unbalance: | 330 pF/100m |
| Temperature Rating: | -20° to +70°C |
| Operating Voltage: | 72V |
| Bending Radius: | <25.4mm at -20°C +/-1°C |
| Pulling Force: | ≥ 11.5 Kg |
| Dielectric Strength: | 1.0KV dc or 0.75KV ac for 1min |
| Certification & Standards: Separator cable |
ISO, CE, FC, ROHSCross/ star spine to separate 4 pairs UTP cables Pull/ strip thread inside the UTP cable |
