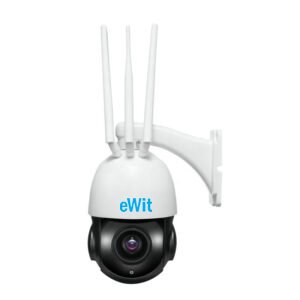

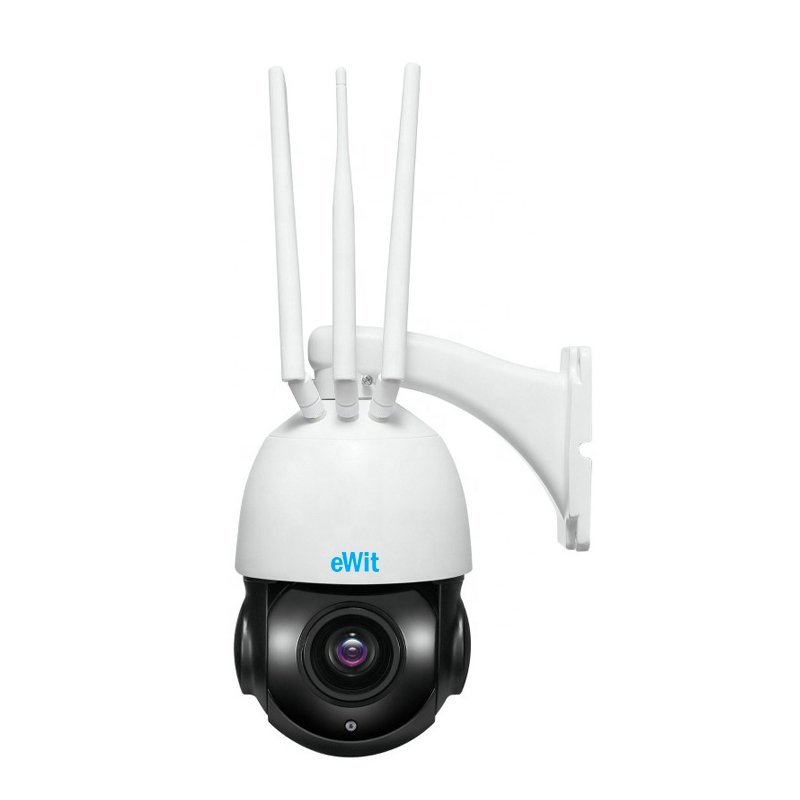

4.5 inch 20X 4G PTZ
Product description: 1.Adopt SONY high performance 1/2.8″ CMOS,6pcs SMD LED light,100m IR distance. 2.Support dual stream compression technology, support 5.0MP/3.0MP/2.0MP starlight/2.0MP resolution optional. 3.Rotate 3
4G/3G feature:
1.Use of industrial 4G module, stable, long life, Anti-interference ability; 4G main chip:ZX297520M,WIFI chip：RTL8192ES-CG;
- 4G all Netcom, support telecommunications, Unicom, mobile 4G / 3G / 2G, support Europe US Japan African 4G standards;
- Network type :FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE；
- Operating frequency: LTE B1/B3/B8/B38/B39/B40/B41，WCDMA 2100/900MHz，TD-SCDMA B34/B39，GSM/GPRS/EDGE: 900/ 1800MHz；
- Rate:FDD-LTE/TDD-LTE:up speed 50M / down speed 150Mbps,HSPA+:up speed 5.76M / down speed 21Mbps
TD-SCDMA: up speed 2.2Mbps / down speed 2.8Mbps; - Support network equipment using wired and wireless WIFI two access methods;With wireless router function, the maximum support 8 devices WIFI access (IPC phone computer);
- WIFI:2412MHz-2472MHz，802.11b/g/n,The maximum transfer rate is up to 72Mbps;USIM/SIM card: Micro SIM card
- Built-in WEB client, can view the 4G signal strength, modify the login password, wireless access password and others;
PTZ camera feature：
1.Adopt SONY high performance 1/2.8″ CMOS,6pcs SMD LED light,100m IR distance.
2.Support dual stream compression technology, support 5.0MP/3.0MP/2.0MP starlight/2.0MP resolution optional.
3.Rotate 355°in horizontal direction, driven by exact engine, operate stably with Precise position-setting.
4.The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance.
5.Vertical 90°continuous monitoring after auto reversing 180°.
6.Support TF card slot (Max support 128G),4G/WIFI 5DB WIFI antenna.
| Technical Parameter: | |||||
|---|---|---|---|---|---|
| Model | SMT-NM4RT-2MP | SMT-NM4RO4G-200S | SMT-NM4RO4G-300 | SMT-NM4RT-5MP | |
| Signal model | PAL/NTSC | ||||
| Image sensor | 1/2.8″ SONY CMOS | 1/2.9’’SONY Stavis COMS | 1/3’’OV CMOS | 1/2.7’’OV CMOS | |
| Chip | SC2322+HI3516E | IMX307+HI3516C | OV4689+HI3516E | SONY335+HI3516E | |
| Effective pixel | 1920*1080P | 1920*1080P | 2592*1520&20fps | 2560*1920&15fps | |
| Primary stream | 2.0MP,1920*1080&30fps | 2.0MP,1920*1080&30fps | 3.0MP,2592*1520&20fps | 5.0MP,2560*1920&15fps | |
| Deputy stream | 1280*720&30fps | 1280*720&30fps | 2048*1536&30fps 1920×1080&30fps | 2048*1536&30fps 1920×1080&30fps | |
| Minimum illumination | Color to B/W,Color:0.1Lux,B/W:0.01Lux | ||||
| S/N ratio | >60dB(Enhanced) | ||||
| Backlight compensation | On/Off | ||||
| White balance | Auto | ||||
| Electronic shutter | PAL:1/25~1/100000s NTSC:1/30~1/100000s | ||||
| Focus length | 4.7-94mm lens | ||||
| Optical focus | 20X optical zoom | ||||
| Focus | Auto / Manual / Push Auto , the use of high-performance DSP to realize complete digit and ultra-high speed focus function | ||||
| Preset | 128 pcs | ||||
| IR distance | 60m | ||||
| Patrol Track | 2 groups, each can record 3mins | ||||
| Cruise Track | 4 groups, each can add 16 presets | ||||
| Other scan | Support Horizontal scan, deuce area scan, scan random | ||||
| Rotation range | Horizontal 355° rotation, Vertical 90°,auto reversal | ||||
| Rotation speed | Horizontal & Vertical Min 0.01°,Max 60°/S | ||||
| Video compression | H.264 Main Profile encoding , MJPEG / JPEG Baseline encoding | ||||
| Audio compression | G.711, G.726 | ||||
| Video bit rate | 32Kbps-16Mbps continuously adjustable, support CBR / VBR | ||||
| Network protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | ||||
| ONVIF support | Support | ||||
| Power supply | DC12V/3A | ||||
| Work environment | -20°C~+50°C (select temperature control accessories), <95%RH | ||||
