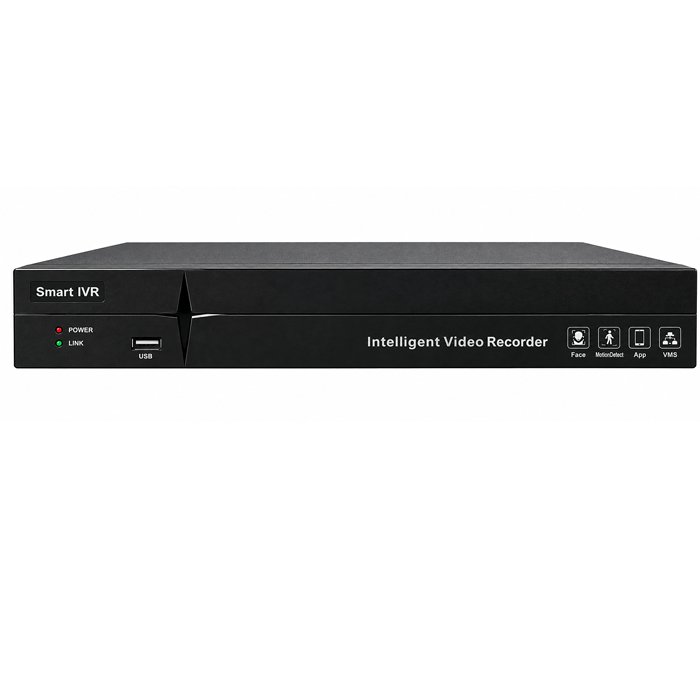

36CH 4K 4HDD NVR
36CH intelligent video recorder, support 36CH 4K IP camera input and output. Support IPC smart analysis: Line-crossing detection, Vehicle retrograde, Staff absence, Loitering, Area intrusion, Vehicle illegal parking. Support voice alarm function in various mode. Support modify
the light mode of private protocol IPC. Support online upgrade and U disk upgrade our camera, support maximum 2pcs 16TB hard disk, 1 HDMI and 1 VGA output interface, 3 USB port, support mobile phone monitoring.
Features：
● Support 36CH IPC input（8MP/D1+36CH Preview+9CH Playback）
● Support Smart265, H265, H264 decoding format
● Support synchronized recording, remote view, backup recording in MP4 format, mobile view
● Support VGA/HDMI output
● Support preview image and playback image electronic amplification
● Support standard ONVIF, RTSP, GB28181 protocol
● Support RTMP
● Support alarm capture, alarm email sending function
● Support DDNS、UPNP、NTP、P2P…etc
● Support WEB, mobile view, IMS surveillance
● Support IPC smart analysis: Line-crossing detection, Vehicle retrograde, Staff absence, Loitering,
Area intrusion, Vehicle illegal parking
● Support channel cruise grouping
● Support network inspection: network traffic monitoring, network diagnosis…etc
● Support maximum 9CH synchronous playback
● Support fast booting
● New UI interface, smooth operation
● Support 36CH 4K decoding and 4K display output
● Support to add IPC manually or automatically in LAN
● Support to upgrade IPC online and by U disk
● Support to maintain IPC under private protocol, including restore, restart, enable or disable all
netcom function
● New optimization, high quality compatibility with hard disk on the market
● Support ANR(Automatic Network Replenishment) function
● Support select the video stream mode
● Optimize incoming bandwidth up to 150M
| Specification | Details | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Video Mode |
|
||||||||||||||||||
| Incoming Bandwidth | 150 Mbps | ||||||||||||||||||
| Video Output |
1 HDMI output, 1 VGA output; Resolution: 3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×800, 1024×768 Support IMS client preview; Support mobile APP fast preview Support multi-screen split; 1/2/4/6/8/9/10/16/25/36 screen real-time preview |
||||||||||||||||||
| Recording Resolution | Support 720P/960P/1080P/3MP/4MP/5MP/4K | ||||||||||||||||||
| Video Decoding Parameter |
Support Smart265/H.265/H.264 decoding NVR synchronous playback (CH 1*4); IMS client support maximum 4CH remote video playback |
||||||||||||||||||
| Audio |
Standard G.711; Support HDMI audio output, audio output (3.5mm jack), audio input (3.5mm jack), and IMS client audio and video preview and playback |
||||||||||||||||||
| Storage Management |
4 SATA, each SATA maximum support 16TB hard disk (4pcs*16TB) Support timing recording, alarm recording, timing and alarm recording; Alarm recording includes (Motion detection, Human detection, Line-crossing detection, Vehicle redirection, Staff absence, Loitering, Area intrusion, Vehicle illegal parking) Support external USB storage device (such as ordinary U disk, mobile hard disk) backup |
||||||||||||||||||
| User Management | Maximum support 32 local user | ||||||||||||||||||
| Network Port |
1 RJ45 Ethernet port, 10/100/1000M adaptive; Support TCP/IP, IPv4, DHCP, NTP, RTP, ONVIF, P2P, SMTP, GB28181 etc. network protocol |
||||||||||||||||||
| External Port | 3 USB2.0 (rear 2, front 1); Support mouse, USB upgrade, import and export | ||||||||||||||||||
| Alarm Port | / | ||||||||||||||||||
| Front Panel | Support power, network transmission 2 status indicator | ||||||||||||||||||
| Buzzer | Support buzzer alarm | ||||||||||||||||||
| Service Function |
Support preview, recording, forwarding, and remote service, alarm linkage, and IMS client remote monitoring software. Support P2P cloud service |
||||||||||||||||||
| Working Temperature | -10°C ~ +55°C | ||||||||||||||||||
| Working Humidity | 10% ~ 90% | ||||||||||||||||||
| Power | DC12V 3A | ||||||||||||||||||
| Power Consumption | ≤30W | ||||||||||||||||||
| Size (mm) | 243*326*52mm (W×L×H) |
