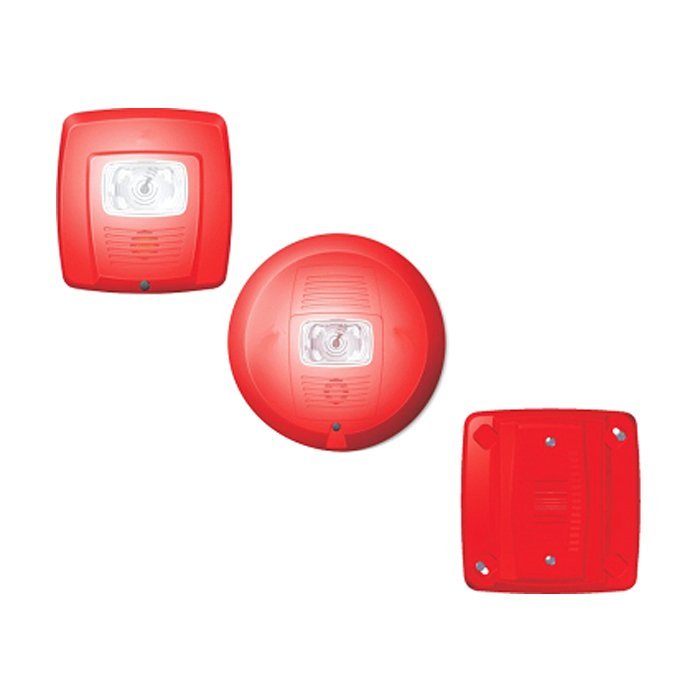

Selectable Output Horns, Strobes & Horn Strobes
EWit Sensor selectable output horns, strobes & horn strobes are rich with features guaranteed to reduce installation and maximize profits.
Features : Horn, Strobes & Horn Strobes
- Mounting plate included for compatibility with a wide range of back box sizes,
- Three field selectable candela settings: 15, 75, and 115,
- Easy  to  use  rotary  dials  for  selection  of  candela  and  horn settings,
- Built in synchronization feature keeps strobes in sync for up to 30 minutes,
- Strobes Listed to UL 1638; Horns Listed to UL 464,
- Horn settings on the horn strobe model include high and low volume, continuous or temporal 3 tone,
- Round trim ring available for ceiling mount applications,
- Universal Fire symbol is language independent,
- Trim plate allows mini horn to mount to a variety of backboxes and fit aesthetically with the horn strobe and strobe.
Features : Mini-HornÂ
- 12 and 24V operation,
- High and low volume settings,
- Temporal and non-temporal tones,
- Mounts to single gang back box,
- Compatible with MDL sunc module,
- Mechanically  and  electrically  compatible  with  PA400  series Mini-Alert TM sounders.
The EWit Sensor line of notification devices offers the most flexible and easy-to-use line of horns, strobes, and horn strobes in the industry. With red housing, universal fire symbol and a ceiling mount accessory available these devices can meet virtually any application. They also mount to a wide variety of back box sizes to offer the most flexibility in installation.
This line of devices features a wide variety of features that simplifies installations. The mounting plate allows the devices to be compatible with a wide range of back box sizes. Settings for the strobe and horn are done using easy to set rotary switches on the back of the device. Synchronization is achieved without the use of additional modules; when powered with a filtered DC source, the strobe portion is capable of self synchronization for 30 minutes per NFPA 72.
Devices work on 24 volts DC or full wave rectified power. Three candela options are available for the strobe. On the horn strobe model, high and low volume are options for the horn as well as a continuous tone or temporal 3 output. The mini horn model has a continuous tone output and one volume setting.
Available accessories include a round trim ring to adapt the wall device for ceiling mount applications. Simply install the round ring over the square device for a perfect fit on the ceiling. An adapter plate is also available for the mini horn. It fits to a wider range of back boxes and fits with the family look of the horn strobe and strobe devices.
EWit Sensor Specifications
Architect/Engineer Specifications
General
EWit Sensor strobe and horn strobes shall mount to a 2″x4″, 4″x4″, Single Gang, Double Gang, 4″ Octagon, 3.7″ x 3.7″, 2″ round, 2.36″ x 2.36″, 3.54″ x 2.6″, 1.77″ back box. System Sensor devices shall be powered from a non-coded notification appliance circuit output and shall operate on a nominal 24 volts. 24-volt-rated notification appliance circuit outputs shall operate between 17 and 33 volts. Devices operate between 32 and 120 degrees Fahrenheit from a regulated DC or full-wave rectified unfiltered power supply. Strobes and horn strobes shall have field-selectable candela settings including 15, 75 and 115 cd. The devices shall not operate on a coded power supply. Horn – strobe and strobe devices shall have built-in synchronization capability. Upon initial power up the devices shall be synchronized for up to 30minutes.
Strobe
The strobe shall be a EWit Sensor Model SYS-ST or SYS-ST-C listed to UL 1638 and shall be approved for fire protective service. The strobe shall be wired as a primary signaling notification appliance flashing at 1 Hz over the strobe’s entire operating voltage range. The strobe light shall consist of a xenon flash tube and associated lens/reflector system.
Horn Strobe Combination
The horn strobe shall be a EWit Sensor Model listed to UL 1638 and UL 464 and shall be approved for fire protective service. The horn strobe shall be wired as a primary-signaling notification appliance and comply with the Americans with Disabilities Act requirements for visible signaling appliances, flashing at 1 Hz over the strobe’s entire operating voltage range. The strobe light shall consist of a xenon flash tube and associated lens/reflector system. The horn shall have two audibility options and an option to switch between a temporal three-pattern and a non-temporal (continuous) pattern. These options are set by a multiple position switch.
Mini Horn
Mini-horns shall be a EWit Sensor Model MHR or MHW capable of operating at nominal 12 or 24VDC and shall mount to a deep single gang back box. Minihorn shall be listed to Underwriter’s Laboratories Standard UL464 for fire protective signaling systems. Mini-horns shall operate between 32 and 120 degrees Fahrenheit from a regulated DC, or full-wave rectified, unfiltered power supply. When used with the Sync•Circuit™ Module, 12-volt rated notification appliance circuit outputs shall operate between nine and 17.5 volts; 24-volt rated notification appliance circuit outputs shall operate between 17 and 33 volts.
Physical/Electrical Specifications: Horn, Strobes & Horn Strobes |
|
|---|---|
| Standard Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10 to 93% non-condensing |
| Strobe Flash Rate | 1 flash per second |
| Nominal Voltage | Regulated or regulated 24 DC/FWR1 |
| Operating Voltage Range2 | 16 to 33 V (24 V nominal) |
| Input Terminal Wire Gauge | 14 to 18 AWG* |
| Strobe and horn strobes dimensions(including lens) | 5.15″ L x 5.0″Wx 1.5″ D (131mmx 127mmx 38mm) |
| Ceiling trim ring dimensions (sold as a pack of 5) | 6.8 ” dia / 1.5″ depth (173mmdia / 1.5″ depth) |
Mini-Horn UL Sound Output and Current Draw DataSounder Output (dBA) |
||||||||
|---|---|---|---|---|---|---|---|---|
| Switch Setting | Pattern | Output Level | 8–17.5 VDC | 8–17.5 VFWR | Nominal 12 VDC | Nominal 12 VFWR | 16–33 VDC16–33 | VFWR |
| 1 | Temporal | High | 68 | 67 | 71 | 70 | 78 | 76 |
| 2 | Temporal | Low | 66 | 65 | 69 | 68 | 76 | 75 |
| 3 | Non-temporal | High | 72 | 71 | 75 | 74 | 80 | 89 |
| 4 | Non-temporal | Low | 70 | 69 | 73 | 72 | 78 | 77 |
| Sounder Current Draw (mA RMS) | ||||||
|---|---|---|---|---|---|---|
| 8–17.5 Volts | 16–33 Volts | |||||
| Switch Setting | Sound Pattern | Volume | DC | FWR | DC | FWR |
| 1 | Temporal | High | 12 | 10 | 17 | 15 |
| 2 | Temporal | Low | 10 | 9 | 14 | 13 |
| 3 | Non-temporal | High | 22 | 17 | 29 | 25 |
| 4 | Non-temporal | Low | 17 | 13 | 21 | 19 |
Full Wave Rectified (FWR) voltage is a non-regulated, time-varying power source that is used on some power supply and panel outputs.
UL Current Draw Data
| UL Max. Strobe Current Draw (mA RMS) | |||
|---|---|---|---|
| 16–33 Volts | |||
| Candela | DC | FWR | |
| Switch Position | Position 1 | 34 | 45 |
| Position 2 | 63 | 74 | |
| Position 3 | 79 | 89 | |
| UL Max. Current Draw Horn Strobe | |||
|---|---|---|---|
| 16–33 Volts | |||
| DC Input | 15 | 15/75 | 30 |
| Temporal High | 36 | 67 | 84 |
| Temporal Medium | 34 | 65 | 82 |
| Continuous High | 40 | 72 | 90 |
| Continuous Low | 37 | 68 | 85 |
| FWR Input | |||
| Temporal High | 51 | 77 | 83 |
| Temporal Medium | 49 | 75 | 92 |
| Continuous High | 55 | 82 | 98 |
| Continuous Low | 50 | 78 | 94 |
Horn Tones and Sound Output DataHorn Strobe Output (dBA) |
||||||||
|---|---|---|---|---|---|---|---|---|
| 24-Volt Nominal | ||||||||
| 16–33 Volts†| Reverberant | Anechoic | ||||||
| Switch Position | Sound Pattern | dB | DC | FWR | DC | FWR | DC | FWR |
| 1 | Temporal | High | 78 | 77 | 78 | 77 | 100 | 104 |
| 2 | Temporal | Low | 74 | 73 | 74 | 73 | 103 | 101 |
| 3 | Continuous | High | 82 | 80 | 82 | 80 | 100 | 104 |
| 4 | Continuous | Low | 80 | 78 | 80 | 78 | 103 | 101 |
Minimum dB rating for Operational Voltage Range as per UL 464.

| EWit Sensor Ordering Information | ||||
|---|---|---|---|---|
| Model | Description | Model | Description | |
| Wall Horn Strobes | Mini Horn | |||
| S YS-HS | Horn Strobe, Wall Mount | MH R1 | Mini-Horn, Red | |
| S YS-HS-C | Horn Strobe, Ceiling Mount | S YS-MH-TP | Trim Ring for use with the Mini Horn | |
| Wall Strobes | ||||
| S YS-ST | Strobe, Wall Mount | |||
| SYS-ST-C | Strobe, Ceiling Mount | |||
| S YS- CTP | Ceiling Mount Trim Plate | |||
