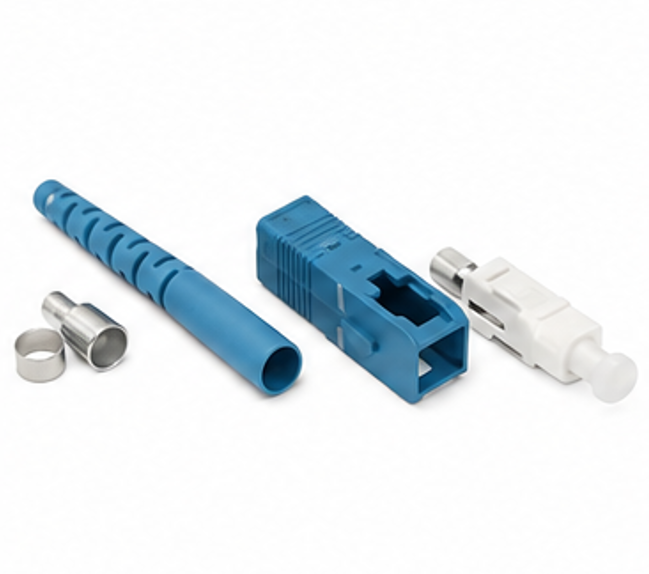

The SC/PC SX MM Connector is designed for multimode fiber optic communication applications and provides stable optical transmission with low insertion loss and high reliability.

Multi-mode versions come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end. The connector is suitable for 0.9mm, 2.0mm and 3.0mm fiber optic cable applications.

Features:

• Low insertion loss and back reflection loss
• Ferrule end surface predomed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Boots in a variety of colors
• Telcordia style boots
• Free-floating ceramic ferrule
• Insertion loss:
• 0.20dB (SM)
• 0.25dB (MM)
• Return loss: 55dB (PC)
