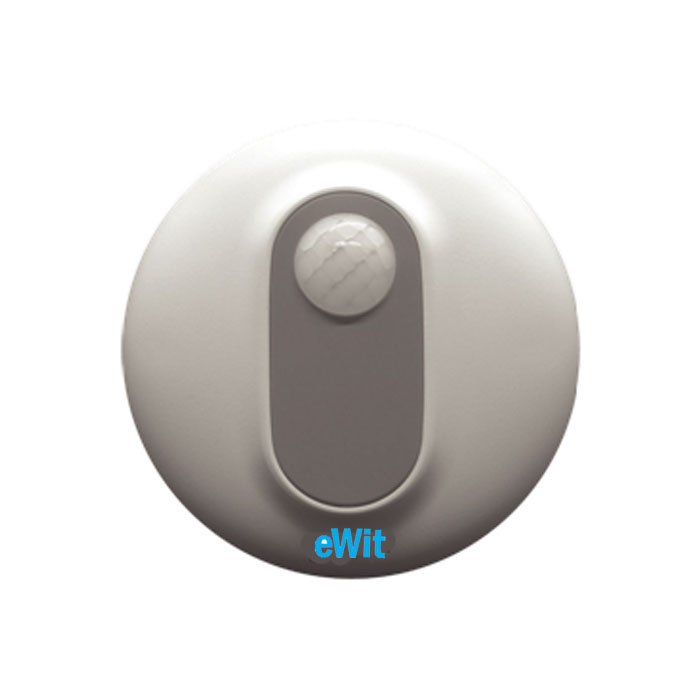

MOTION SENSOR ESS-100
Optimize the energy usage of your lighting system
The no built-in LED variant of the series, the ESS-100 can be integrated with external lighting, as a sensor that turns them on when it detects the presence of an occupant. The ESS-100 automatically switches lights on or off, using Pa-PIR passive infrared sensor technology; which detects motion as well as body temperature, ensuring spaces are illuminated only when they are occupied. This easy to install Motion Sensor is ideal for residential, commercial, and office spaces; allowing
you to save up to 60% of your lighting-related energy consumption. Now you can enhance both the sustainability and occupant experience of your built spaces, at the same time. Smart lighting was never so easy.
FEATURES AND BENEFITS
- Retro-fit – no need for a major cabling change
- Plug and play – light and motion detection with Pa-Pir sensor
- Energy savings-up to 60%
- Robust quality – backed by Honeywell standards
PRODUCT SPECIFICATIONS
| FEATURE | SPECIFICATION |
|---|---|
| Power Rating | ~230 V AC/50-60Hz |
| Detection Range | 92°(Vertical)/102°(Horizontal) |
| Detection Distance | Max.12m |
| Detection Speed | 0.6 ~ 1.5m/s |
| Average Load | Max.1150W (~220V AC ) |
| Environment Temperature | -20°C ~ +40°C |
| Environment Humidity | Max. 93% |
| Ambient Light | <3-2000 Lux (Adjustable) |
| Time-Delay | Min. 15 Seconds ~ Max. 9 Minutes (Adjustable) |
| Installation Height | 2m ~ 6m |
| Dimensions | 50 * 100 * 100 (in MM) |
| Weight | 127g ms |
| Lumens | NA (Depend Upon external Light used) |
| PRODUCT COMPARISON TABLE | ||||
|---|---|---|---|---|
| MODEL | ESS-100 | ESS-101-L | ESS-102-LD | ESS-103-LB |
| Â Photo |  |
 |
|
|
| Description | Motion sensor for existing light source | Combined motion sensor & light source | Combined motion sensor & light source with variable dimming control (30% to 100%) | Combined motion sensor & light source with rechargeable battery (no wires) |
| Light Source | External Light Required | In-Built LED | In-Built LED (with dimming) | In-Built LED |
| Power Rating | 230V AC | 15W/230V AC | 15W/230V AC | 5W/Battery Operated |
| Lumens | NA (Depend Upon external Light used) | 1600 Lumens | 450 / 1600 Lumens | 450 Lumens |
| Size ( Dimensions) | 50 * 100 * 100 (in MM) | 50 * 100 * 100 (in MM) | 50 * 100 * 100 (in MM) | 50 * 100 * 100 (in MM) |
| Weight (gms) | 127 gms | 273 gms | 270 gms | 233 gms |
SUGGESTED USER PRECAUTIONS
- Before installation, please read the instructions carefully, and preserve them for future
- Keep away from heating/streaming/ air conditioning
- Don’t impact the lens with any
INSTALLATION GUIDELINES
- Switch off the

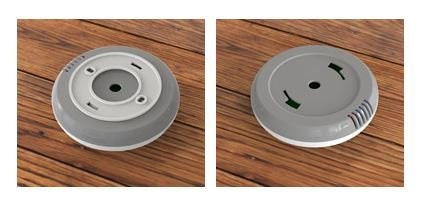

- Turn the bottom-stand Clockwise, and take it The power wire cross the hole in the middle of bottom-stand.
- Fix the bottom-stand onto the selected position with inflated screw

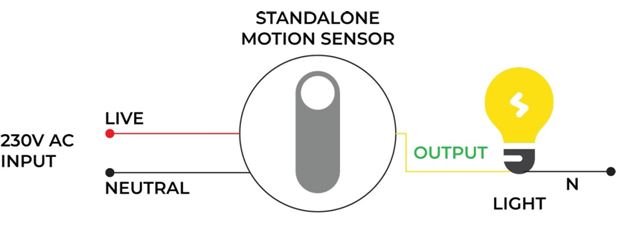

- Connect the power and the load into the connection-wire column of the sensor according to connection-wire
- Aim the Sensor towards the mouth of the bottom-stand and turn it anti-clockwise
OPERATION

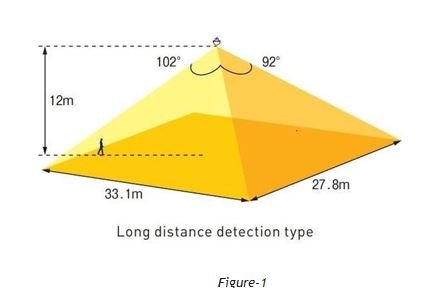

- Detection-angle/Detection -distance/Installation height are shown in the accompanying
- Detection angles are 92°(Vertical)/102°(Horizontal).

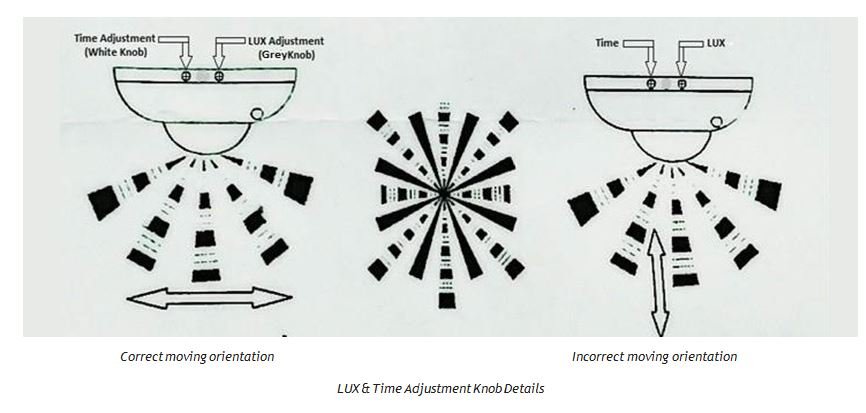

- You can adjust time delay (TIME)/ambient light (LUX) using adjustment knobs as shown in the
- Time delay is adjustable from 15 Sec to 9 Min (+/-10%). To increase time delay, please turn the adjustment knob
- Ambient light sensitivity level is adjustable between 5-1000 LUX.
- To use sensor in daylight conditions please turn the adjustment knob counterclockwise. In poor illuminated environment adjust the knob clockwise.
DIAGRAM
