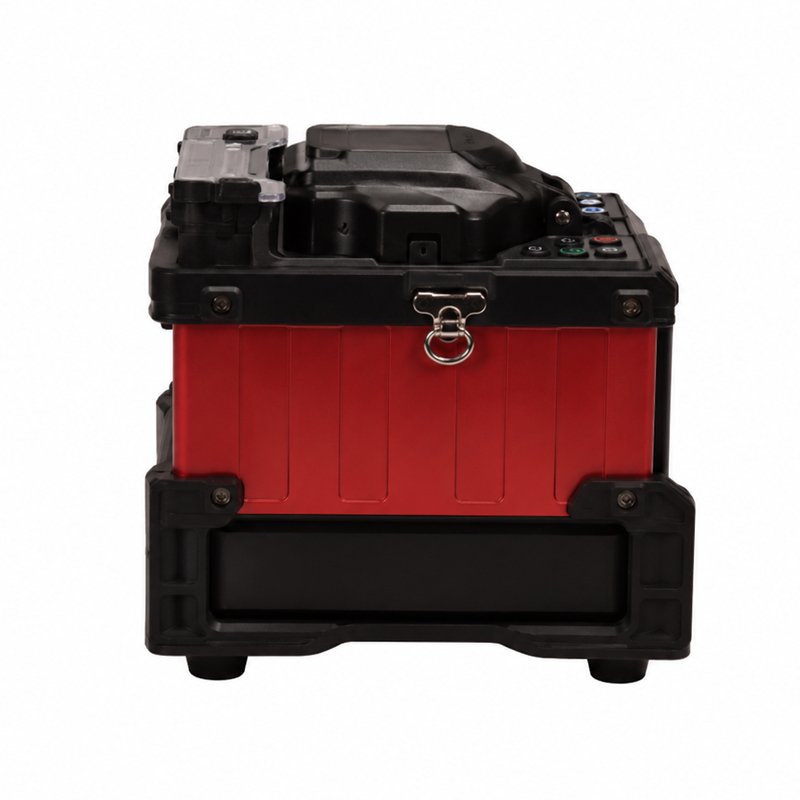

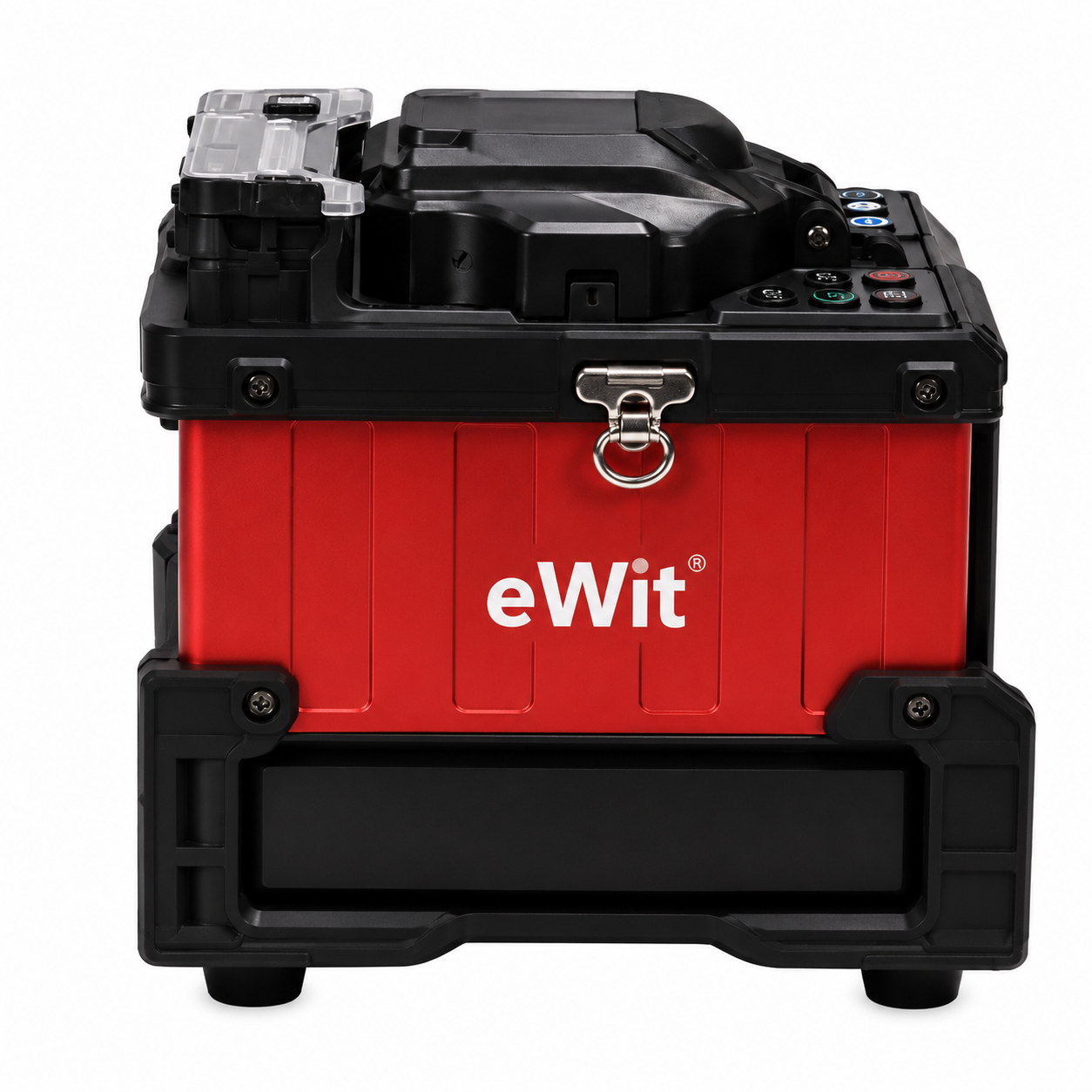

Fiber Splice Machine (INF-S21)

7s fast splicing
Core to core alignment technology
High quality, low loss, typical splicing loss
Water, dust, wind resistance
Titanium alloy body
5 directions anti shock bars
Software online upgrade through internet
24 hours online technical support.

Our portable Fusion Splicer (INF-S21), Fiber Optic Equipment is a mini type fusion splicing machine and have our own intellectual property right of fiber adjustment technology. It adopts advanced PAS fiber adjustment technology. Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume, the lightest weight, the most fast splicing speed.

Applicable Optical Fiber Types	SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655), EDF, BIF/UBIF (G.652)
Applicable Optical Fiber Core Number	Single core
Applicable Optical Fiber Diameter	Cladding Diameter: 90-150μm, Coating Diameter: 125~1000μm
Fusion splice Model	Re-store: 40 groups, User define: 80 groups
Average Fusion Splice Loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Echo Loss	Better 60dB
Fusion splice Duration Time	7 sec (typical parameter)
Heating time	Fusion-Protection Sleeves 15s Fast heating (customization)
Number of motors	4 / 6 optional
Password control	Optional
Operation method	Simple to use, one-touch operation, automatic welding with cover
Corrosion Resistance	Equipment components, Parts and materials meet composite anti-corrosion requirements, Anti-fluid pollution
Working aloft	Require additional configuration platform
Alignment	Core alignment, Cladding alignment, Precise Alignment
Loss Estimation of Fusion Splice	Exist
Optional Fixtures	0.9, 250, 3.0 separately Holders
