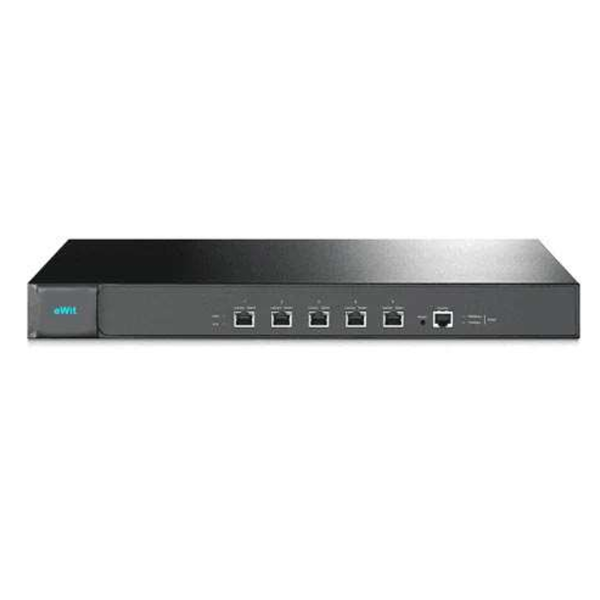

eWit WIRELESS CONTROLLER (EW-WC-150)
Auto-detect and centralized management, up to 150 CAPs. License-free management reduces the OPEX of enterprise network. Easy deployment without changing the existing network topology. Unified configuration of wireless networks, support mapping of SSID and VLAN. Support MAC authentication, portal authentication. Dual-link back up for management safety. Should support Band Steering feature that forces the dual-band capable clients to the 5 GHz band on dual-band access points. Should have Band balancing to balance the client load on radios by distributing clients between the 2.4 GHz and 5GHz radios. The Access Point should support IEEE 802.11r Fast BSS Transition and IEEE 802.11k Radio Resource Management neighbor reports. It should also provide client load balancing to enhance WLAN performance by distributing client connections across nearby access points. The Access Point should allow the creation of network access policies based on Layer 2, Layer 3, Layer 4, client operating systems, and client whitelisting. Should protect Wireless network from Denial of Service (DoS) attacks and Intrusion attempts.
| HARDWARE FEATURES | |
|---|---|
| Installation | Rack-mount |
| Processor | 1GHz Dual-core MIPS64 network dedicated processors |
| Memory | 256MB DDR3*2, 32MB Flash*1 |
| Interface | Gigabit Ethernet Port*5, Console Port*1 |
| Power Supply | 100～240V AC, 50/60Hz |
| LED | Port: Link/Act, 1000M/100M Device: PWR, SYS |
| Dimensions (W x D x H) | 17.3 x 8.7 x 1.7 in. (440 × 220 × 44 mm) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| FEATURES | |
| Management Scale | Up to 150 APs |
| Wireless Function | L3 Management Multi-SSID Load Balance Band Steering Rate Limit DHCP Server WMM Communication protocol |
| Wireless Security | SSID to VLAN Mapping AP Isolation SSID Isolation Encryption |
| AP Management | AP Automatic Discovery AP Unified Configuration AP Reboot Schedule AP Batch Firmware Upgrade Grouped AP management AP LED ON/OFF |
| Authentication | Web-based Management Captive Portal Authentication MAC Authentication |
| System Status | AP Status Client Status Authenticated User Status |
| System Management | Configuration Backup/Import Ping/Tracert Tool System Log |
| Certification | CE, FCC, RoHS |
