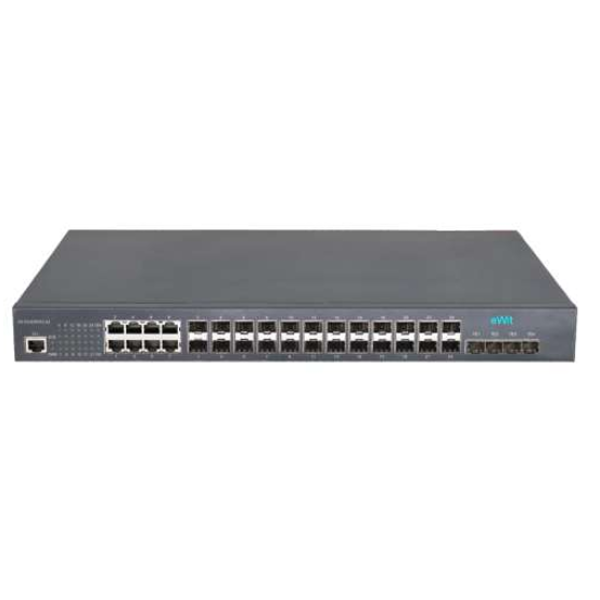

eWit 10GE L3 Ethernet Switch
Key Features:
• Supports 16 SFP Ports + 8 Combo Ports & 4 10GE SFP+ Ports
• Versatile IPv6 Solution
• Supports VSS stacking
• Standard 19-inch rack-mount
• Supports EAPS & ERPS ring technology
Introduction:
The EWIT EW-24PMPOE10GSF is a next-generation 10GE aggregation switch designed for medium to large-scale
networks, including government institutions, enterprises, internet cafes, and diskless workstation environments. Built on high-performance hardware and a robust software platform, it offers advanced features such as powerful ACLs, flexible QinQ, 1:1 or N:1 VLAN switching, Ethernet OAM, QoS, and industry-grade 10GE Ether-ring support, ensuring reliable operation in complex environments. Additionally, it supports Layer-3 routing protocols for enhanced network
performance and scalability.
Technical Specifications
| General Specifications | |
|---|---|
| Model | EW-24PMPOE10GSF |
| Interface | 16 SFP Ports + 8 Combo Ports & 4 10G SFP+ ports, Console 1 RJ45 port |
| Backplane Bandwidth | 128Gbps |
| Forwarding Rate (Mpps with 64 bytes) | 96Mpps |
| Flash | 16 MB |
| DRAM | 256 MB |
| Jumbo Frame | 9K |
| MAC | 16K |
| Buffer Size | 1.5 MB |
| Interface VLAN | 64 |
| Routing Table | 512 |
| Chassis Dimensions (WxDxH) | 440x280x44 (mm) |
| Chassis Weight (empty) | 4 kg |
| Package Dimensions (WxDxH) | 575x448x94 (mm) |
| Package Weight | 5.2 kg |
| Power Consumption (no load) | < 18W |
| Power Consumption (Full load) | < 38W |
| Power Supply | DUAL AC 100-240V |
| Fan | 2 |
| Total Output BTU | 153.58 |
| Noise@25°C | 45 dBA |
| MTBF | >200,000 H |
| L2 Features | |
| VLAN | 4K Active VLAN QinQ & Selective QinQ GVRP Private VLAN Voice-VLAN |
| Spanning Tree & Multicast | IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave MVR, IGMP filter |
| L3 Features | |
| IP Routing | Static route RIP, OSPF, IPv4 Dual stack |
| IPv6 | ICMPv6, DHCPv6, ACLv6 IPv6 Telnet IPv6 neighbor discovery Path MTU discovery MLD V1/V2, MLD snooping IPv6 Static Routing RIPng, OSPFv3 Manual tunnel ISATAP tunnel 6 to 4 tunnel |
| Security & Authentication | |
| Security | Port isolation Port security and IP+MAC+port binding MAC sticky DAI & IP source guard (IPv4) IEEE 802.1x, AAA Radius and TACACS+ L2/L3/L4 ACL flow identification and filtration |
| Anti-Attack | DDoS, TCP’s SYN Flood, UDP Flood, etc. Broadcast/multicast/unknown unicast storm-control |
| Encryption | MD5, SHA-256, RSA-1024, AES256, etc |
| DHCP | |
| DHCP Features | DHCP server/relay/client DHCP snooping/option82 |
| Reliability | |
| Reliability | Static/LACP link aggregation, Interface backup EAPS and ERPS ISSU Uninterrupted system upgrade Upto 4 Units per stack VRRP UDLD |
| Management | |
| Management Methods | Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3 RMON |
| File Transfer | TFTP, FTP, SFTP |
| System Tools | NTP, ZTP, SPAN, RSPAN Dying gasp |
| Accessories & Environment | |
| Accessories | Power cord Rack mounting kits Console cable |
| Environment | Operating Temperature: 0°C -50°C Operating Humidity: 10%-90% non-condensing Storage Temperature: -20°C to -70°C Storage Humidity: 5%-95% non-condensing |
