| GENERIC | |
|---|---|
| Construction | The mirror is fixed into a flat platform suitably padded with cushion material below the mirror which is fixed onto a trolley mounted on ball bearing caster wheels for smooth operation. The trolley is fitted with telescopic detachable and adjustable rods/handle. Telescopic rods having only axial movement and rotation is restricted and lock-able in desired position by way of quick – release clip liver type clutch locking system along with a suitable detachable handle. |
| Scope of usage | To view underside of vehicles / tables etc for any hidden explosives / suspected devices |
| Protecting shield over the mirror | Removable protecting shield made of waterproof cloth and high density poly urethane foam provided over the mirror to protect it during transportation |
| Fixing details | Adjustable- inspection mirror can be swiveled and locked securely into required place |
| Lighting system | Lighting system comprising LED Light / Torch (3 Volt, 5 Watts) with adjustable mounting for focusing / Aligning with mirror is provided |
| MIRROR | Mirror Type | Plane |
| Shape of mirror | Rectangular |
| Mirror size (cm) (Diameter in case of circular and length x width in case of rectangular) | 30.48 x 30.48 |
| TROLLEY DETAILS | |
| No. of Wheels in the trolley (nos) | 4 |
| In case of adjustable / swivel type of fixing, Dia. of wheels of the trolley | 75 centimeter |
| Material of Trolley Platform and telescopic rods and handle | Weatherproof powder coated steel |
| Dia. of front wheels of the Trolley, In case of fixed type of fixing, (cm) | 40 centimeter |
| Material of Trolley Wheels | Poly Carbonate or Polyurethane |
| Dia. of rear wheels of the Trolley, In case of fixed type of fixing, (cm) | 75 centimeter |
| Trolley Dimensions (cm) | 600 centimeter |
| Dimensions of different sections of telescopic rods | rods in 3 sections |
| Adjustable length of the telescopic rods (cm) | 50-120 cm |
| Wooden carry case | Wooden carry case made of 10 mm thick waterproof plywood duly clad with thermocol foam protection against rubbing & scratching of paint / coated surfaces is provided |

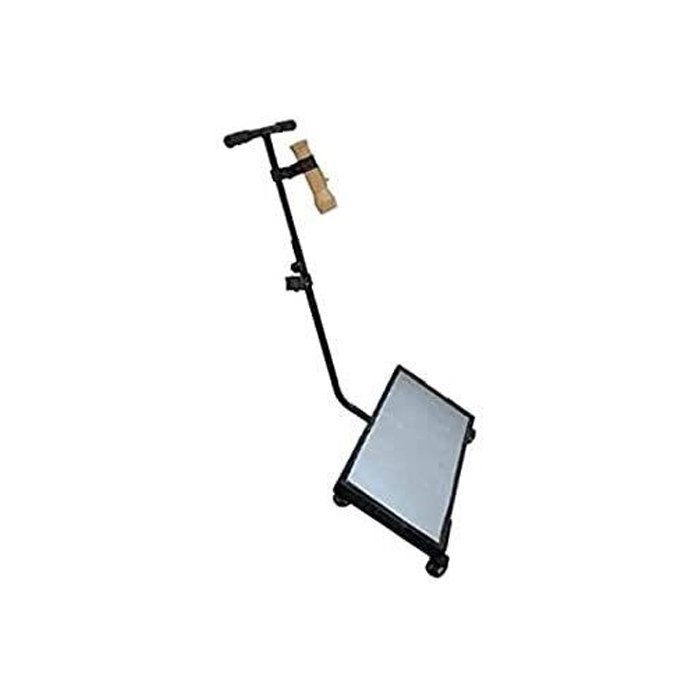

Ewit Trolley Type Rectangular Plane Security Mirrors
| Specifiction | |
|---|---|
| Fixing details | Adjustable- inspection mirror can be swiveled and locked securely into required place |
| Lighting system | Lighting system comprising LED Light / Torch (3 Volt, 5 Watts) with adjustable mounting for focusing / Aligning with mirror is provided |
| Mirror Type | Plane |
| Shape of mirror | Rectangular |
| Mirror size (cm) (Diameter in case of circular and length x width in case of rectangular) | 30.48 x 30.48 |
| Material of Trolley Platform and telescopic rods and handle | Weatherproof powder coated steelS |
