Description
‘
| GENERIC | ||
|---|---|---|

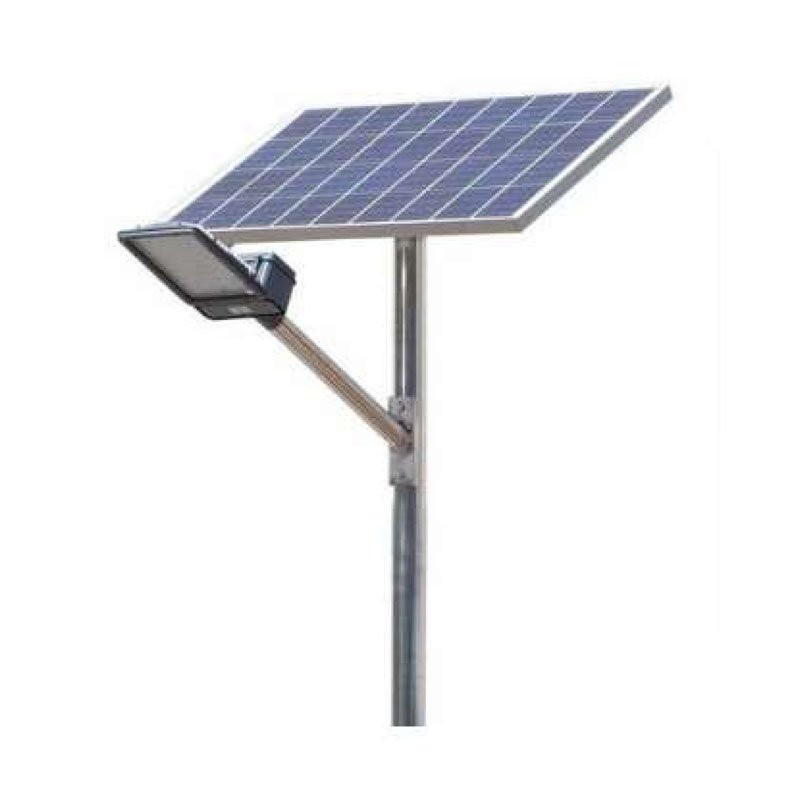

| White LED based solar street lighting system as per | as per MNRE Specification (Specification uploaded) | |
| Uploaded specification has been seen and understood | Yes | |
| PV MODULE | ||
| Minimum Power output of PV Module | 75 Wp | |
| PV Module type | Crystalline Silicon Terrestrial Photovoltaic (PV) modules | |
| Minimum effieiency of PV Module (in %) | 14 | |
| PV Module manufactured in | India | |
| BATTERY | ||
| Battery voltage, Minimum (in Volts) | 12.8 | |
| Battery capacity, Minimum (in Ah) | 30 | |
| Battery type | Lithium Ferro Phosphate | |
| Battery enclosure | Builtin Luminaire with IP65 protection | |
| LIGHT SOURCE | ||
| Light source | White Light Emitting Diode (W-LED) | |
| Rating | 12 Watt | |
| Total luminous flux | ≥ 1500 lm. | |
| Luminous efficacy (i.e. system efficacy) | ≥ 125 lm/W. | |
| Color Temperature | 5500 K to 6500 K | |
| ELECTRONICS | ||
| Overall total Efficiency of the Electronics | >/=90% | |
| Ingress Protection (IP) for Optical and Control gear compartment | IP 65 | |
| Necessary lengths of wires/cables, switches suitable for DC use and fuses should be provided | Yes | |
| MECHANICAL COMPONENTS | ||
| Conformity to the specification for steel Pole | as per IS:1161 | |
| Pole Class | Medium | |
| Height of pole (in m) | 6 | |
| A corrosion resistant metallic frame structure should be fixed on the pole to hold the SPV module | Yes | |
| The pole should have the provision to hold the luminaire. | Yes | |
| WARRANTY | ||
| Minimum Warranty for street lighting system (including the battery) from the date of supply (in Months) | 60 | |
| Minimum Warranty for PV module(s) from the date of supply (in Years) | 25 | |
| Minimum warranty for PV modules output peak watt capacity, which should not be less than 90% at the end of (in Years) | 10 | |
| Minimum warranty for PV modules output peak watt capacity, which should not be less than 80% at the end of (in Years) | 25 | |
| CERTIFICATIONS | ||
| Availability of Type test report from Central Government/NABL/ILAC accrediated laboratory to prove conformity to the specification. | Yes | |
| Test report number – Must declare | 190720003 | |
| Report date – Must declare | 28-03-20 | |
| Name of lab – Must declare Bharti | Automation | |
| Address of lab – Must declare | Banglore | |
| Agreed to furnish valid BIS CRS certificates for the applicable items as on date to buyer / consignee on demand | Yes | |
| Agreed to furnish all the test reports and certificates to the buyer/consignee on demand | Yes | |
