EW-IP40250Z

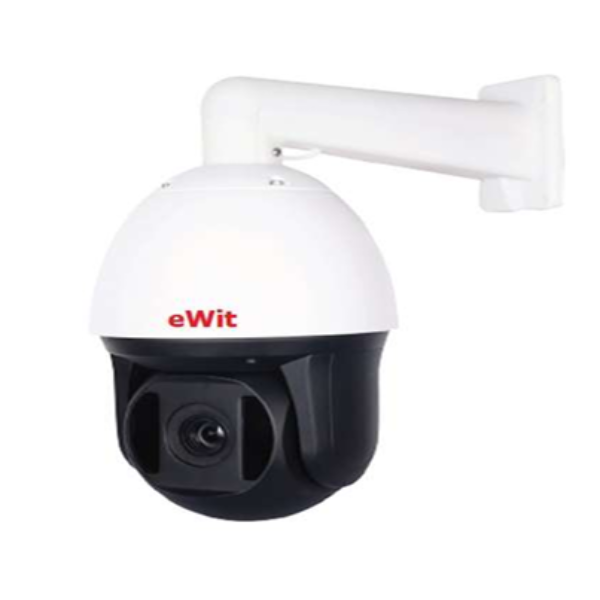

eWit EW-IP40250Z, 4MP 36x Network IP PTZ Speed Dome adopts 1/2.8″ progressive scan CMOS chip. With the 36× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Key Features:
• 1/2.8” 4MP PS CMOS Image Sensor
• Max. 50/60fps@1080P
• Powerful 36x Optical and 16x Digital zoom
• WDR (120dB), 3D DNR, Day/Night (ICR), EIS, Defog, ROI, BLC, HLC
• Support Starlight Technology • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern, auto pan
• IR Range of 250 Meter, IP67, Support PoE+
• Max 400° /s pan speed, 360° endless pan rotation
• Built-in 1/1 alarm in/out
Description
Product Specification
| Feature | Value |
|---|---|
| Specification | |
| Image Sensor | 1/2.8” Progressive Scan CMOS Sensor |
| Effective Pixels | 3072(H) x 2048(V) |
| System Signal | PAL/NTSC |
| Resolution | 4 MP |
| Camera | |
| Minimum Illumination | Color: 0.005 Lux (F 1.2, IR On), B/W: 0.001 Lux (F1.2, IR On), 0 Lux @ with IR On |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain Control | Auto/Manual |
| Shutter Time | 1/25s to 1/100000s |
| Auto Exposure | Automatic Level Control/Electronic Level Control |
| Signal Process | Digital Signal Process |
| Day Night IR Cut Filter | Auto/(ICR)/Color/B/W |
| Privacy Mask | 24 Programmable Privacy Masks, Mask Color Configurable |
| Focus Mode | Auto/Manual |
| ROI | Support |
| RAM/ROM | 1GB/4GB |
| WDR | 120 dB WDR |
| DNR | 3D DNR |
| AGC Control | Auto/Manual |
| IR Intensity | Automatic |
| PTZ Controls | Yes |
| S/N Ratio | >50db |
| Back Light Compensation | BLC/HLC/WDR (120db) |
| Lens | |
| Focal Length | 4.5~162MM |
| Digital Zoom | 16X |
| Optical Zoom | 36X |
| Aperture Range | F1.6~F3.0 |
| IRIS Control | Auto/Manual |
| Zoom Speed | 3.6s Approx. |
| Angel of View | H: 61.2°~2.32°, V: 31.92°~1.34°, D: 63.71°~2.71° |
| Focus Control | Auto/Semi Auto/Manual |
| Close Focus Distance | 100MM~1000MM |
| IR | |
| IR Range | 250 Meter |
| Smart IR | Yes |
| PTZ | |
| PAN Travel | 0°~360° endless, Pan Speed: 0.1° ~ 300°/sec |
| Tilt Travel | -15° ~ 90° auto flip 180°, Tilt Speed: 0.02° ~100°/sec |
| Manual Speed | Pan: 0.2° ~200° /s; Tilt: 0.1° ~115° /s |
| Preset Speed | Pan: 400° /s; Tilt: 300° /s |
| Power Up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Presets | 300 |
| Proportional Zoom | Available |
| Power of Memory | Yes |
| Pattern Scan | 4 Pattern Scans, Record Time Over 10 Minutes for Each Scan |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| Patrol Scan | 8 Patrols, up to 32 Presets for Each Patrol |
| 3D Positioning | Yes |
| PTZ Position Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Compression | |
| Video Compression | Interstream; H.265; H.264+; H.264B; H.264M; H.264H; MJPEG) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3Kbps~20480Kbps, H.265: 3Kbps~20480Kbps |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
| Audio Bit Rate | H.264: 32Kbps~8192Kbps, H.265: 32Kbps~8192Kbps |
| Smart Feature | |
| Basic Event | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
| Smart Event | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| Smart Record | ANR |
| ROI/Defog/AWB/BLC/HLC | Support |
| Power UP Cation | Auto Restore to Previous PTZ and Lens Status After Power Failure |
| Speed Setup | Human-Oriented Focal Length |
| Special Feature | Defog, IR Range up to 250m, Up to 300 Presets, 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Image | |
| Max. Resolution | 3072× 2048 |
| Video Streaming | Main Stream: 4M/3M/1080P/1.3M/720P (1–25/30 fps); Sub Stream1: D1/CIF (1–25/30 fps); Sub Stream2: 2MP/1.3MP/720P (1–25/30 fps) |
| Image Setting | Saturation, Brightness, Contrast, Sharpness |
| OSD | 16X16, 32X32, 48X48, 64X64, 96X96 Total 5 Regions |
| Motion Detection | Support |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Network | |
| Event Trigger | Motion/Tampering Detection; Audio Detection; Network Disconnection Detection; IP Conflict Detection; Memory Card State Detection; Memory Space Detection; Power Exception Detection |
| Video Analytics | Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Video Abnormal, Audio Abnormal |
| IVS | Tripwire and Intrusion. Support Alarm Triggering by Target Types (Human and Vehicle). Support Filtering False Alarms Caused by Animals Rustling Leaves, Bright Lights |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF Profile S&G, API |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Simultaneous Live View | Up to 20 channels |
| Security Measures | User Authentication (ID and PW), Host Authentication (MAC Address); HTTPS Encryption; IEEE 802.1x Port Based Network Access Control; IP Address Filtering |
| Smart Phone | iPhone, iPad, Android Phone |
| Web Browser | IE 8 to 11, Chrome 31.0+, Firefox 30.0+ |
| Interface | |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, Hi-PoE |
| Audio Input/ Output | 1-Ch Audio Input, 2 to 2.4 V[p-p], 1 KΩ $\pm$ 10%, 1-Ch Audio Output, Line Level, Impedance: 600 Ω |
| Alarm Input/ Output | 4 2-Ch Alarm Input/1-ch Alarm Output |
| On Board Storage | Support SD/Micro SD Card up to 256GB |
| General | |
| Language | 32 Language |
| Power | 24 VAC, 2.5 A, 50/60 Hz and Hi-PoE, 42.5 to 57 VDC, 1.41 A Max.: 13W, including max. 22W for IR On |
| Working Temperature | $-40^{\circ}C$ to $70^{\circ}C$ ($-40^{\circ}F$ to $158^{\circ}F$) |
| Working Humidity | $\le 90\%$ |
| Protection Level | IP67, IK10 |
| Material | ADC 12, PC+10% GF (Metal) |
| Weight | 3.5 Kg |
| Certificate | BIS, CE, FC, ROHS, GDPR |
| Country of Origin | India |
