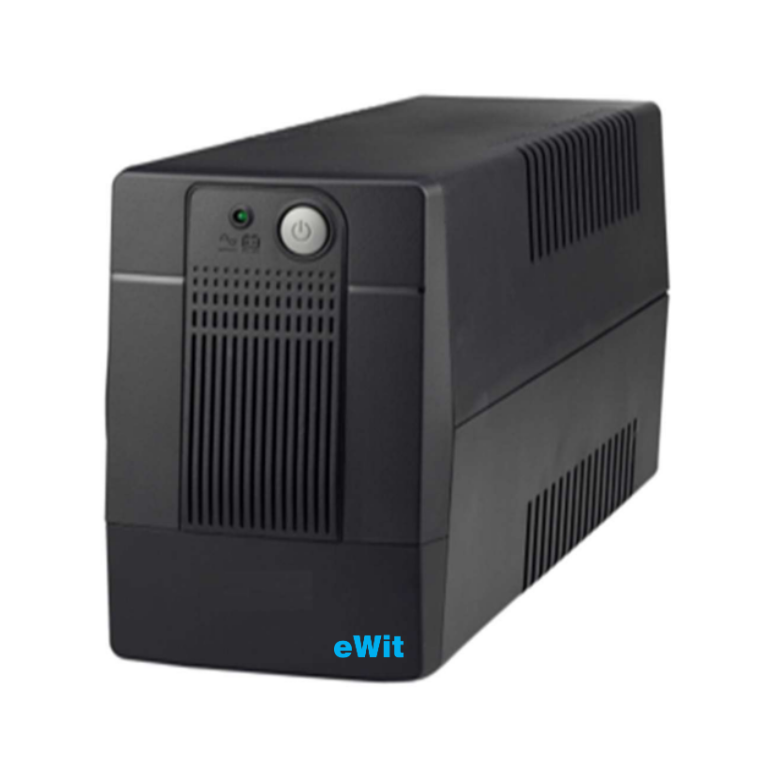

EW-EO1002
Key Features
- Line interactive UPS
- Double Boost
- Auto restart while AC is recovering
- Microcontroller Based
- Generator Compatible
- Wide Input Range
- Automatic Voltage Regulation (AVR)
Description
Specifications
| Capacity | 1000VA / 600W |
|---|---|
| Input Nominal Voltage | 220-240 VAC |
| Input Voltage Range | 140-300 VAC |
| Input Frequency | 50/60 Hz |
| Plug Type | 3 Pin plug |
| Voltage Range (AC Mode) | 230VAC ± 5% |
| Voltage Range (Batt. Mode) | 230VAC ± 10% |
| Output Frequency Range (Batt. Mode) | 50/60 Hz ±1% |
| Transfer Time | 4 – 8 ms typ. |
| Wave Form | Simulated Sine Wave |
| No. of Output Sockets | 4 |
| Protections | Overload, Short Circuit, Over Discharge, Over Charge |
| Battery Type | 12V 7Ah x 2 Nos |
| Charging Current | 1.2A |
| Recharge Time | 6 – 8H typ. (up to 90% Capacity After Complete Discharge) |
| No. of LEDs | 3 LEDs |
| AC Mode | Green LED Glows |
| Battery Mode | Orange LED blinks every 10 seconds |
| Fault Indicator | Red LED Glows |
| Battery Mode Alarm | Beeping Every 30 seconds |
| Low Battery Alarm | Beeping Every 1 second |
| Overload Alarm | Beeping Every 0.5 second |
| Fault Alarm | Continuous Beeping |
| Net Weight | 7.39 kg |
| Package Dimensions (W x D x H) | 375 x 175 x 248 mm |
| Operational Temperature | 0-40⁰C |
| Noise Level | < 45dB |
| Protection | IP21 |
| Casing | Plastic |
| Certification | ISO, CE, FCC, ROHS |
| Country of Origin | India |
