4G/3G feature:

1.Use of industrial 4G module, stable, long life, Anti-interference ability; 4G main chip:ZX297520M,WIFI chip：RTL8192ES-CG;

2. 4G all Netcom, support telecommunications, Unicom, mobile 4G / 3G / 2G, support Europe \ US \ Japan \ African 4G standards;
3. Network type :FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE；
4. Operating frequency: LTE B1/B3/B8/B38/B39/B40/B41，WCDMA 2100/900MHz，TD-SCDMA B34/B39，GSM/GPRS/EDGE: 900/ 1800MHz；
5. Rate:FDD-LTE/TDD-LTE:up speed 50M / down speed 150Mbps,HSPA+:up speed 5.76M / down speed 21Mbps
   TD-SCDMA: up speed 2.2Mbps / down speed 2.8Mbps;
6. Support network equipment using wired and wireless WIFI two access methods;With wireless router function, the maximum support 8 devices WIFI access (IPC \ phone \ computer);
7. WIFI:2412MHz-2472MHz，802.11b/g/n,The maximum transfer rate is up to 72Mbps;USIM/SIM card: Micro SIM card
8. Built-in WEB client, can view the 4G signal strength, modify the login password, wireless access password and others;

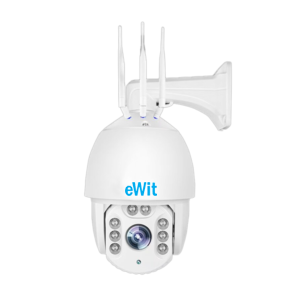

PTZ camera feature：

Function Characteristic:

1.Adopt high performance 1/2.8″ CMOS,Support dual stream compression technology.

2.Using imported dot matrix large glass lamps and imported high-speed glass lamp light,laser Lamp light, to ensure the night vision distance 100 m; product life can reach 50,000 hours.

3.Intelligent infrared control technology can automatically control the infrared light according to the environment. Under the premise of ensuring monitoring results, it can effectively enhance the infrared lamp’s life and ensure the product stability.

4.Constant current circuit design, to ensure stable operation of the infrared light. And it won’t reduce the infrared lamps’ life which caused by the changing of the power supply.

5.Efficient cooling structure, using physical means heat, which can effectively reduce the temperature of the inside dome camera, to prevent the inner to be fogging, and to ensure the machine’s stability.

Technical Parameter:
