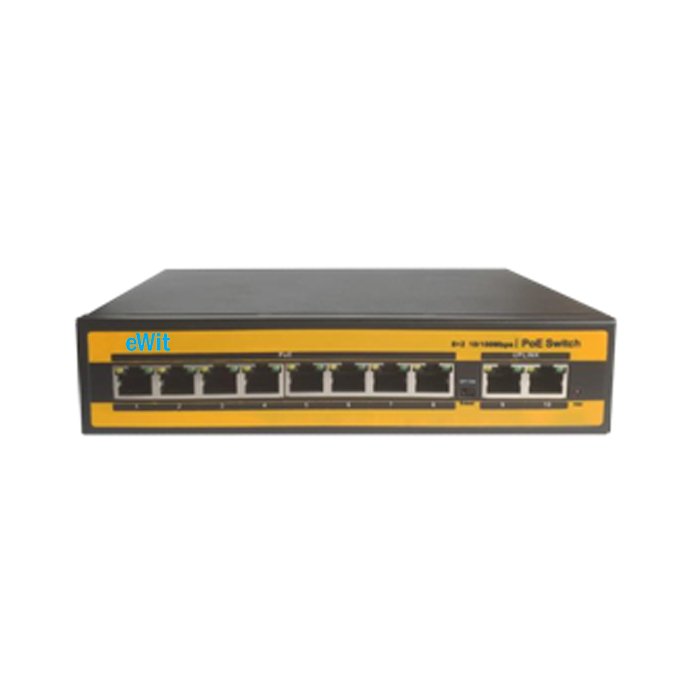

10/100Mbps8+2Port250m PoESwitch
- 8*10/100Mbps PoE ports, 2*10/100Mbps uplink port
- Support 3af/at
- Support restrain network storm,VLANfunction
- Support Max Transmission distance up to 250m with PoE Power
- All port supported by MDI/MDIX auto flip and self-negotiation
- Built-in powersupply;
- Maximum power of single PoE port: 30 W;
- Maximum PoE power:150 W;
- Adopts store-and-forward architecture;
- Fanless, natural cooling, small,compact andquiet design, suitablefor desktoporwall
- Support lightning protection 2000V
Description
Overview
The switch is a compact 8+2 port PoE switch,with 8 10/100 Mbps PoE Ports, and 2 10/100Mbps Uplink Port,The 8 PoE ports can automatically detect and provide power for any connected 802.3af/at Powered Device(PD), such as VOIP phones,IP Cameras,all PoE ports support the IEE802.3af/atstandard,withamaximum outputof 30W eachport
Application Diagram
Dimensions
Specification
|
Power |
Power Adapter Voltage | AC 110V-240V | |
| Consumption | 120W(52V, 2.3A) | ||
|
Network Connector |
Network Port | PoE Ethernet Port | 1～8 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100Mbps | ||
|
Transmission Distance |
1～8 Port : 100Mbps:0~100m;
10Mbps: 0~250m; |
||
| Uplink Port : 0 ~ 100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
|
Network Switch |
Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab | |
| Switching Capacity | 2.0Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 1.488Mbps | ||
| MAC Table | 1K | ||
|
Packet Forwarding rate |
10Mbps: 14880pps/port
100Mbps: 148800pps/port |
||
|
Power Over Ethernet |
PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | End-Span(1/2+;3/6-) | ||
| PoE Power | af=15.4W,at=30W for each port | ||
|
RJ45 port |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for
Half-duplex mode |
|
|
LED Indicator |
LED Indicator |
LINK/ACT.100Mbps;PoE Status Indicator; Power
indicator;Extender |
|
|
Environmental |
Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
|
Mechanical |
Dimension (L×W×H) | 202mm*140mm*45mm | |
| Color | Black | ||
| Weight | 1.05kg | ||
Order Information
| Part No | Description of product | Unit |
|
ND1P802F |
10 ports switch with 8*10/100M PoE ports,2*10/100M Uplink Port,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance100meters(100Mbps),250meters(10Mbps) | pc |
