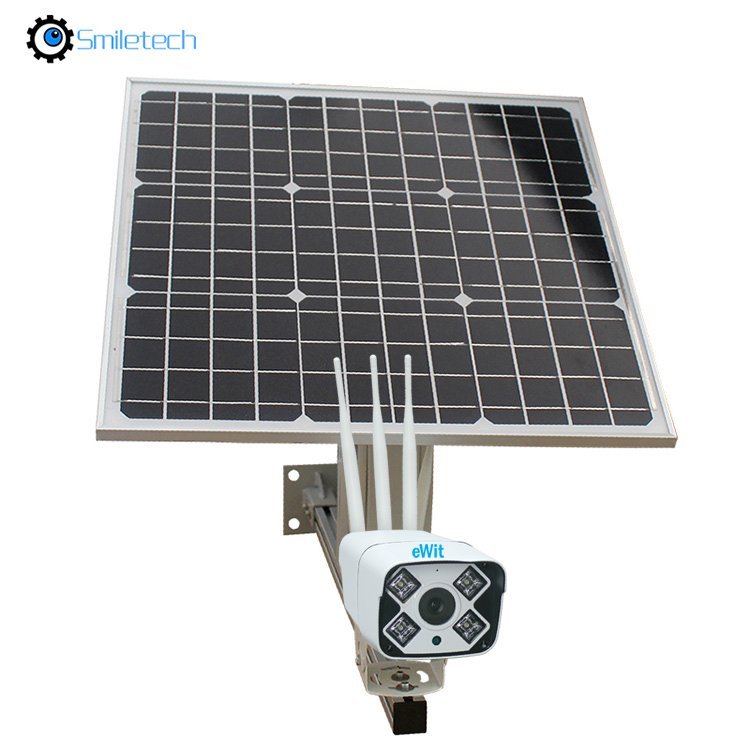

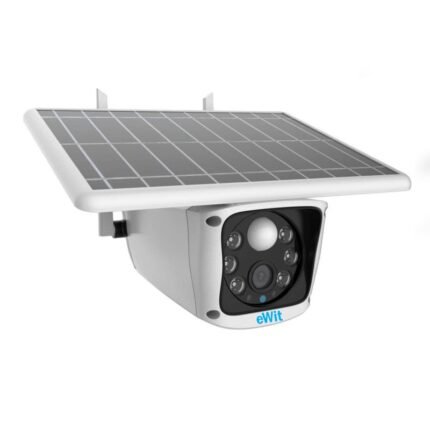

Solar Panel Feature:
- Use of high-performance monocrystalline silicon solar panels, aluminum alloy frame;
- High strength tempered glass floor;
- Integrated junction box, waterproof IP66;
- Standard with A + grade 18650 ternary lithium battery;
- Battery built-in charge protection board, effectively prevent overcharge and over discharge, so that the battery life longer;
- Solar panels with metal wall bracket, can be adjusted to the solar direction;
- Size :50W (630×540×18mm),70W (770×671×25mm), 100W (1196×541×30mm);
- Lithium Battery: 50AH,70AH.
4G/3G Main Feature:
1.Use of industrial 4G module, stable, long life, Anti-interference ability; 4G main chip:ZX297520M,WIFI chip：RTL8192ES-CG;
- 4G all Netcom, support telecommunications, Unicom, mobile 4G / 3G / 2G, support Europe \ US \ Japan \ African 4G standards;
- Network type :FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE；
- Operating frequency: LTE B1/B3/B8/B38/B39/B40/B41，WCDMA 2100/900MHz，TD-SCDMA B34/B39，GSM/GPRS/EDGE: 900/ 1800MHz；
- Rate:FDD-LTE/TDD-LTE:up speed 50M / down speed 150Mbps,HSPA+:up speed 5.76M / down speed 21Mbps
TD-SCDMA: up speed 2.2Mbps / down speed 2.8Mbps; - Support network equipment using wired and wireless WIFI two access methods;With wireless router function, the maximum support 8 devices WIFI access (IPC \ phone \ computer);
- WIFI:2412MHz-2472MHz，802.11b/g/n,The maximum transfer rate is up to 72Mbps;USIM/SIM card: Micro SIM card
- Built-in WEB client, can view the 4G signal strength, modify the login password, wireless access password and others;
IP Camera Main Feature:
- Adopt in 1/2.9″ SONY Low Illumination CMOS Sensor,support Onvif.
- H.264/H.265 video compression,2.0MP/4.0MP/5.0MP resolution,support TF card slot(Max support 128G),5DB 4G antenna,5DB WIFI antenna.
- Build-in IR-CUT,support 2pcs SMD LED light,60m IR distance.
- Support dual-stream·Support 32K ~ 8M adjustable, frame rate 1-30 frames / sec adjustable.
5.Support WEB configuration,motion detention,Alarm/POE/Audio optional function.
- Supports MJPEG capture Support remote management software for unified client, Easy7 platform applications, providing the perfect SDK development package.
| Technical Parameter: | ||||
|---|---|---|---|---|
| Model | SMT-H539N-4G | SMT-H539X-4G | SMT-H4039N-4G | SMT-H5039N-4G |
| Imaging sensor | 1/2.9” Sony CMOS sensor | 1/2.9″ Sony Stavis CMOS | 1/3”OV CMOS sensor | 1/2.7”OV CMOS sensor |
| Chip | IMX323+HI3516CV300 | IMX307+HI3516E | OV4689+HI3516D | OS05A10+HI3516D |
| Lens | 2.0MP HD 2.8-12mm Lens | 4.0MP/5.0MP HD 2.7-13.5mm Lens | ||
| Signal system | PAL / NTSC adjustable | |||
| Min. illumination | 0.1Lux @ F1.2 (Color) (0 Lux IR LED On) | |||
| Main steam | 2.0MP,1920*1080&30fps | 2.0MP,1920*1080&30fps | 4.0MP,2592*1520&20fps | 5.0MP,2560*1920&15fps |
| Deputy stream | 1280*720&30fps | 1280*720&30fps | 2048*1536&30fps, 1920×1080&30fps | 2048*1536&30fps, 1920×1080&30fps |
| Bit Rate | Support 32k-8m adjustable,1-30 fps frame rate adjustable (CBR/VBR) | |||
| Image compression | H264/H264+,Baseline/Main Profile/High Profile；H.265/H.265+ Main Profile；MJPEG | |||
| Electronic shutter | 1/25s~1/10000s; automatic | |||
| White balance | Auto | |||
| DNR | 3D-DNR | |||
| SNR | ≥50dB | |||
| DWDR | Support | |||
| Privacy masking | support | |||
| IR LED | 2pcs SMD LED | |||
| IR distance | 60m | |||
| Image adjustment | Through IE can adjust Saturation, brightness, contrast, sharpness | |||
| Network protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |||
| Intelligent alarm | Motion detection | |||
| Optional functions | POE / Audio / Alarm/Smart bracket | |||
| Mobile App | Support iPhone、iPad、Android | |||
| Network interface | One RJ45 Ethernet interface，10M/100M self-adaption | |||
| Work environment | -35℃ ~ 60℃, humidity is less than 95% (no condensation) | |||
| Power supply | DC12V/2A,<3W | |||
| Waterproof | IP66 | |||
| Size | ￠183×91×66 mm | |||
| Weight | 900g | |||
