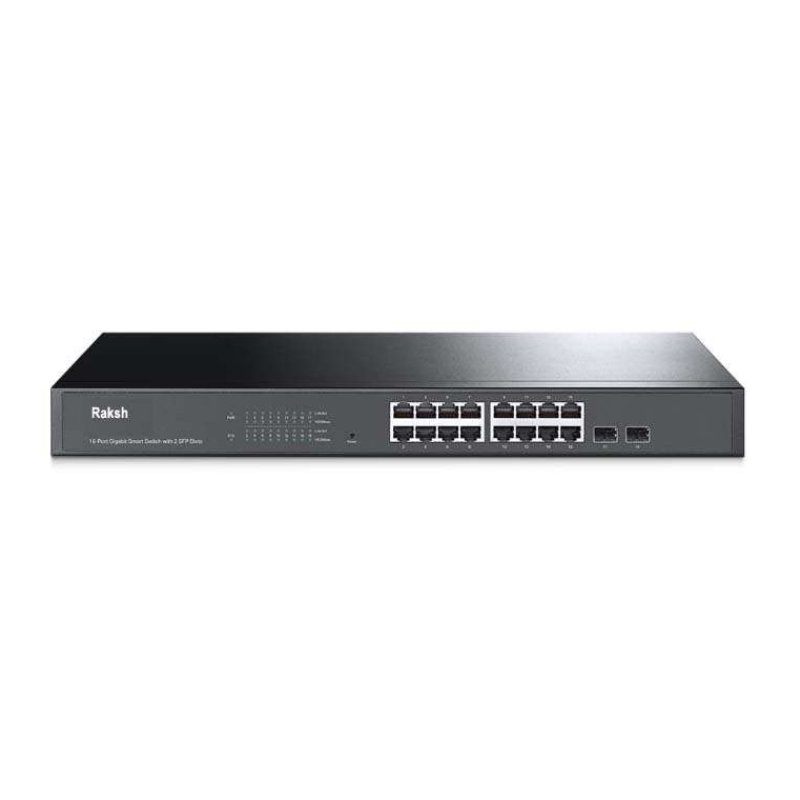

RK-GS1016N

RK-GS1016N

General
Model	RK-GS1016N
Interface	· 16× 10/100/1000 Mbps RJ45 Ports · 2× Gigabit SFP Slots
Flash	32 MB
DRAM	256 MB
Port Standard	IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber); IEEE 802.3ae: 10 Gigabit Ethernet over fiber
Performance
Switching Capacity	36 Gbps
Packet Forwarding Rate	26.8 Mpps
MAC Address Table	8K
Jumbo Frame	9 KB
Physical & Environment
Power Supply	100-240 V AC~50/60 Hz
Max Power Consumption	12.3 W (220 V/50 Hz)
Max Heat Dissipation	41.97 BTU/hr
Standby Power Consumption	8.67 W (110 V/60 HZ)
Dimensions (W x D x H)	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Fan Quantity	Fanless
Installation	Rack Mountable
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Operation Humidity	10% to 90% RH, non-condensing
Storage Humidity	5% to 90% RH, non-condensing
Certification	CE, FCC, RoHS
Software Features
Quality of Service	· 8 priority queues · 802.1p CoS/DSCP priority · Queue scheduling · SP (Strict Priority) · WRR (Weighted Round Robin) · SP+WRR · Bandwidth Control – Port/Flow based Rating Limiting · Smoother Performance · Action for Flows · Mirror (to supported interface) · Redirect (to supported interface) · Rate Limit · QoS Remark
L3 Features	· 16 IPv4/IPv6 Interfaces · Static Routing – 48 static routes · Static ARP · 316 ARP Entries · Proxy ARP · Gratuitous ARP · DHCP Server · DHCP Relay · DHCP L2 Relay
L2 Features	· Link Aggregation – Static link aggregation – 802.3ad LACP – Up to 8 aggregation groups and up to 8 ports per group · Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
L2 Multicast	· Supports 511 (IPv4, IPv6) IGMP groups · IGMP Snooping · IGMP v1/v2/v3 Snooping · Fast Leave · IGMP Snooping Querier · IGMP Authentication · MVR · MLD Snooping · MLD v1/v2 Snooping · MLD Snooping Querier · Static Group Config · Limited IP Multicast · Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	· Automatic Device Discovery · Batch Configuration · Batch Firmware Upgrading · Intelligent Network Monitoring · Abnormal Event Warnings · Unified Configuration · Reboot Schedule
VLAN	· VLAN Group – Max 4K VLAN Groups · 802.1q Tagged VLAN · MAC VLAN: 12 Entries · Protocol VLAN: Protocol Template 16, Protocol VLAN 16 · GVRP · VLAN VPN (QinQ) · Port-Based QinQ · Selective QinQ · Voice VLAN
Access Control List	· Time-based ACL · MAC ACL · Source MAC · Destination MAC · VLAN ID · User Priority · Ether Type · IP ACL · Source IP · Destination IP · TCP/UDP Port · IPv6 ACL · Policy · Mirroring · Redirect · Rate Limit · QoS Remark · ACL apply to Port/VLAN
Security	· IP-MAC-Port Binding · DHCP Snooping · ARP Inspection · IPv4 Source Guard · IPv6-MAC-Port Binding · DHCPv6 Snooping · ND Detection · IPv6 Source Guard · DoS Defend · Static/Dynamic Port Security · Broadcast/Multicast/Unicast Storm Control · 802.1X · VLAN Assignment · AAA (including TACACS+) · Port Isolation
IPv6	· IPv6 Dual IPv4/IPv6 · Multicast Listener Discovery (MLD) Snooping · IPv6 ACL · IPv6 Interface · Static IPv6 Routing · IPv6 neighbor discovery (ND) · DHCPv6 Client · Ping6 · Tracert6 · IPv6 SNMP · IPv6 SSH · IPv6 SSL · Http/Https · IPv6 TFTP
Management Features	· Web-based GUI · Command Line Interface (CLI) through console port, telnet · SNMPv1/v2c/v3 · Trap/Inform · RMON (1, 2, 3, 9 groups) · SDM Template · DHCP/BOOTP Client · 802.1ab LLDP/LLDP-MED · DHCP AutoInstall · Dual Image, Dual Configuration · CPU Monitoring · Cable Diagnostics · EEE · Password Recovery · SNTP · System Log
MIBs	· MIB II (RFC1213) · Bridge MIB (RFC1493) · P/Q-Bridge MIB (RFC2674) · Radius Accounting Client MIB (RFC2620) · Radius Authentication Client MIB (RFC2618) · Remote Ping, Traceroute MIB (RFC2925) · RMON MIB(RFC1757, rmon 1,2,3,9)
