| Cross-Section (N x S mm²) | No. of Conductors x OD (mm) | OD (mm) | Weight (kg/km) | Max Conductor Resistance (Ω/km at 20°C) | |
|---|---|---|---|---|---|
| Min | Max | ||||
| 2×0.75 | 2×24/0.2 | 6.0 | 7.6 | 50 | 26 |
| 2×1.0 | 2×32/0.2 | 6.4 | 7.8 | 57.8 | 19.5 |
| 2×1.5 | 2×30/0.25 | 7.2 | 8.8 | 74.7 | 13.3 |
| 2×2.5 | 2×49/0.25 | 8.8 | 11.0 | 120 | 7.98 |
| 3×0.75 | 3×24/0.2 | 6.4 | 8.0 | 63.1 | 26 |
| 3×1.0 | 3×32/0.2 | 6.8 | 8.4 | 74.0 | 19.5 |
| 3×1.5 | 3×30/0.25 | 7.8 | 9.6 | 102.0 | 13.3 |
| 3×2.5 | 3×49/0.25 | 9.6 | 11.5 | 162.0 | 7.98 |
| 4×0.75 | 4×24/0.2 | 7.0 | 8.6 | 78.5 | 26.0 |
| 4×1.0 | 4×32/0.2 | 7.6 | 9.2 | 97.2 | 19.5 |
| 4×1.5 | 4×30/0.25 | 8.8 | 11.0 | 133.0 | 13.3 |
| 4×2.5 | 4×49/0.25 | 10.5 | 12.5 | 204.0 | 7.98 |
| 5×0.75 | 5×24/0.2 | 7.8 | 9.4 | 96.9 | 26.0 |
| 5×1.0 | 5×32/0.2 | 8.2 | 11.0 | 115 | 19.5 |
| 5×1.5 | 5×30/0.25 | 9.8 | 12.0 | 158 | 13.3 |
| 5×2.5 | 5×49/0.25 | 11.5 | 14.0 | 249 | 7.98 |

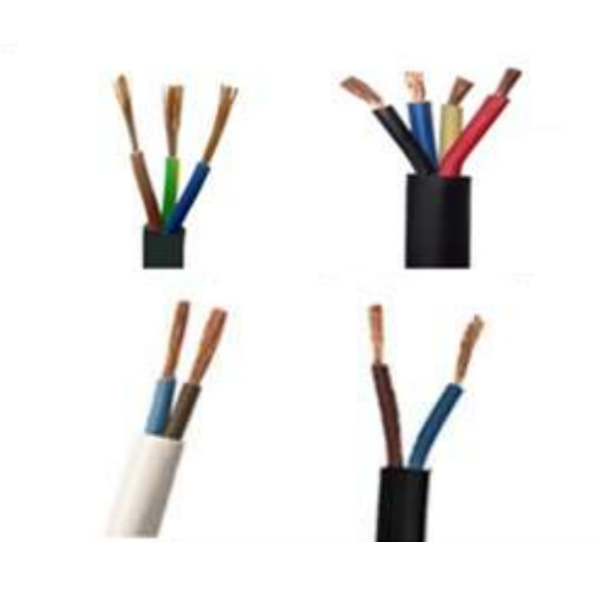

Power Cable
