Optical Cleaver (Model-2)
Features:
- Bare Fiber Diameter: 125μm
- Outercoat diameter: 0.25–0.9mm
- Fiber Type: Single Fiber
- Cleaved Angle: 0.5°
- Blade Life: 48000
- Dimension: 605746mm
- Weight: 266g
Package:
- Packing list:
- Fiber Cleaver *1
- Inner Hexagon *1
- Container Box *1
- Manual *1
Description

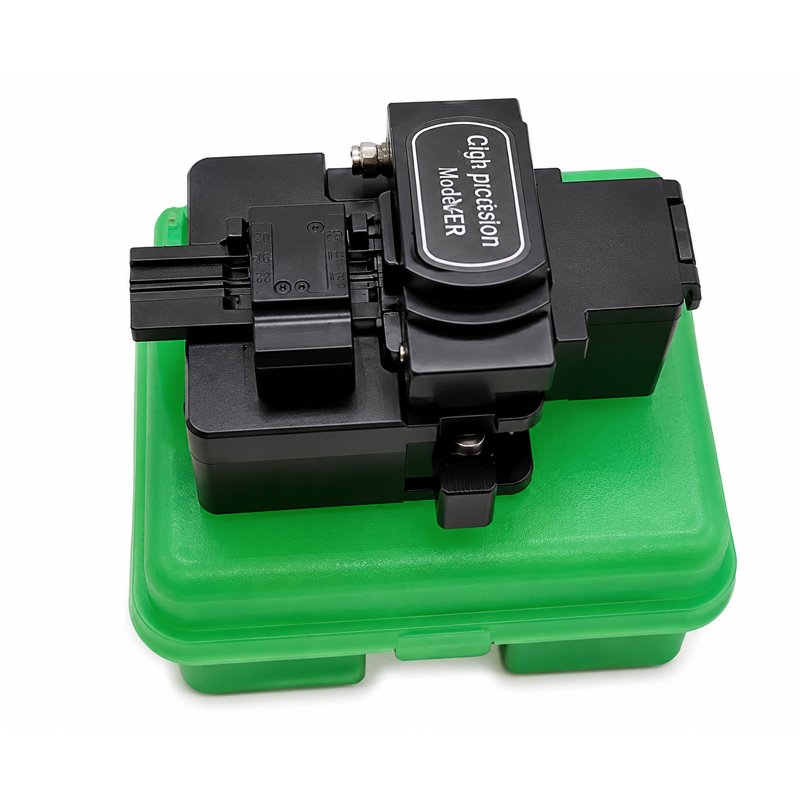

This high precision optical fiber cleaver is used for fiber cutting and especially more focus on FTTx field.
The Ultra-fine Tungsten Steel Blade provides up to 48,000 times cleaves by easy and simple 16 blade spots.
It is installed with fiber holder which is applicable to 0.25mm, 0.9mm, 3.0mm fibers. It also has an automatic collector for fiber shards and off cuts.
