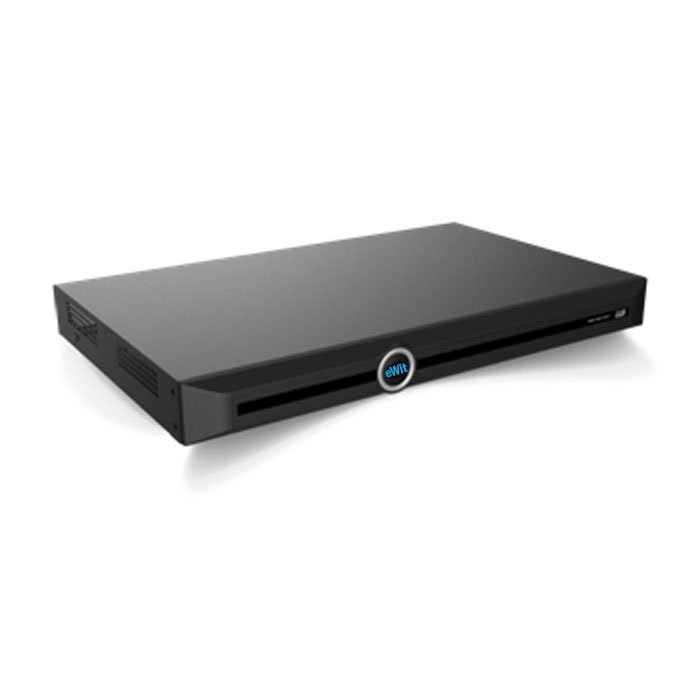

I-HNVR-1240

H.265 2HDD 40 Channel NVR

The new EWit series of Network Video Recorders (NVRs) is beneficial to customers who want a higher quality of video surveillance enhanced by HD and an advanced setup. This product can be used for video surveillance in banks, offices, manufacturing industries, warehouses, and parking lots – where image quality and clarity is a key priority. The smart features offered by the new Impact series of NVRs greatly help in the effective analysis of the video feed, while optimizing storage.

Product Enquiry

Category: ELECTRONICS

Description
Reviews (0)

FEATURES AND BENEFITS
HD INPUT • IH+265/H.265/H.264 video formats • Connectable to the third- party network cameras • Up to 40 channel input • Supports live view, storage, and playback of the connected camera at up to 12MP resolution	HD OUTPUT • HDMI and VGA simultaneous output • HDMI Video output at up to 4K (3840 × 2160) resolution	HD STORAGE • 2 SATA interfaces, up to 10TB for each HDD • IH+265 compression effectively reduces the storage space and costs by up to 75%
HD TRANSMISSION • 2×RJ45 self-adaptive 10/100/1000 Mbps network interfaces	VARIOUS APPLICATIONS • Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc. • VCA detection alarm is supported • Smart search for the selected area in the video and smart playback to improve the playback efficiency • Web6 supports plug-in free browsing and can preview videos on all browsers

FEATURES AND BENEFITS

HD INPUT

• IH+265/H.265/H.264 video formats

• Connectable to the third- party network cameras

• Up to 40 channel input

• Supports live view, storage, and playback of the connected camera at up to 12MP resolution

HD OUTPUT

• HDMI and VGA simultaneous output

• HDMI Video output at up to 4K (3840 × 2160) resolution

HD STORAGE

• 2 SATA interfaces, up to 10TB for each HDD

• IH+265 compression effectively reduces the storage space and costs by up to 75%

HD TRANSMISSION

• 2×RJ45 self-adaptive 10/100/1000 Mbps network interfaces

VARIOUS APPLICATIONS

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to improve the playback efficiency

• Web6 supports plug-in free browsing and can preview videos on all browsers

SPECIFICATIONS

MATERIAL SPECIFICATIONS
INPUT
Video Input	40-ch
Max Resolution	12MP
Two-way Audio Input	1-ch, 3.5mm
Bandwidth	Income 320Mbps; Outgoing 320Mbps
OUTPUT
HDMI/VGA Output	HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
Screen Split	1/3/4/6/8/9/10/13/16/20/25/36/40/64
Audio Output	1xRCA
DECODING
Decoding Format	IH+265/H.265/H.264
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability	3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 32x720P, 40x4CIF
Synchronous Playback	3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 16x720P
Records Encryption	Yes
HARD DISK
SATA	2 SATA interface for 2 HDDs
Capacity	Up to 10TB for each HDD
EXTERNAL INTERFACE
Network Interface	2xRJ45 self-adaptive 10/100/1000 Mbps network interface
USB Interface	1xUSB 2.0, 1xUSB 3.0
Serial Interface	1xRS-485, 1xRS-232
Alarm In/Out	16/4
NETWORK
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS
System Compatibility	ONVIF (PROFILE S/T/G)
GENERAL
Web Version	Web6
Language	English
Operating Conditions	-10°C~55°C, 10%~90% RH
Power Supply	100~240V AC, 50~60 Hz
Consumption (without HDD)	≤25W (without HDD)
Chassis	1U
Dimensions	47.5×277×440mm, (1.87×10.91×17.32 inch)
Weight (without HDD)	2.3Kg (5.07lb)
