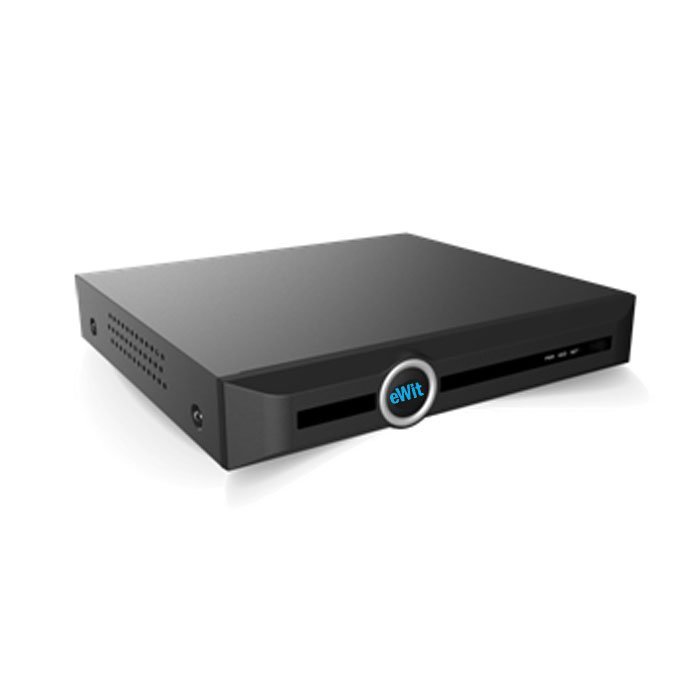

I-HNVR-1105

H.265 1 HDD 5ch NVR

The new EWit series of Network Video Recorders (NVRs) is beneficial to customers who want a higher quality of video surveillance enhanced by HD and an advanced setup. This product can be used for video surveillance in banks, offices, manufacturing industries, warehouses, and parking lots – where image quality and clarity is a key priority. The smart features offered by the new EWit series of NVRs greatly help in the effective analysis of the video feed, while optimizing storage.

Product Enquiry

Category: ELECTRONICS

Description
Reviews (0)

FEATURES AND BENEFITS
HD INPUT • IH+265/H.265/H.264 video formats • Connectable to the third- party network cameras • Supports live view, storage, and playback of the connected camera at up to 6MP resolution	HD OUTPUT • HDMI and VGA simultaneous output • HDMI Video output at up to 4K (3840 × 2160) resolution	HD STORAGE • 1 SATA interfaces, up to 10TB for 1 HDD • IH+265 compression effectively reduces the storage space and costs by up to 75%
HD TRANSMISSION • 1×RJ45 self-adaptive 10/100 Mbps network interface	VARIOUS APPLICATIONS • Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc. • VCA detection alarm is supported • Web6 supports plug-in free browsing and can preview videos on all browsers

FEATURES AND BENEFITS

HD INPUT

• IH+265/H.265/H.264

video formats

• Connectable to the third- party network cameras

• Supports live view, storage, and playback of the connected camera at up to 6MP resolution

HD OUTPUT

• HDMI and VGA simultaneous output

• HDMI Video output at up to 4K (3840 × 2160) resolution

HD STORAGE

• 1 SATA interfaces, up to 10TB for 1 HDD

• IH+265 compression effectively reduces the storage space and costs by up to 75%

HD TRANSMISSION

• 1×RJ45 self-adaptive 10/100 Mbps network interface

VARIOUS APPLICATIONS

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.

• VCA detection alarm is supported

• Web6 supports plug-in free browsing and can preview videos on all browsers

SPECIFICATIONS

MATERIAL SPECIFICATIONS
INPUT
Video Input	5-ch
Max Resolution	6MP
Bandwidth	Incoming 50Mbps; Outgoing 40Mbps
OUTPUT
HDMI/VGA Output	HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800
Screen Split	1/3/4/5/6/7/9
Audio Output	1xRCA
DECODING
Decoding Format	IH+265/H.265/H.264
Recording Resolution	6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability	1×6MP, 1×5MP, 1×4MP, 1×3MP, 4×1080P, 5×720P, 5×4CIF

Synchronous Playback	1×6MP, 1×5MP, 1×4MP, 1×3MP, 3×1080P, 4×720P
Records Encryption	Yes
HARD DISK
SATA	1 SATA interface for 1 HDDs
Capacity	Up to 10TB for each HDD
EXTERNAL INTERFACE
Network Interface	1xRJ45 self-adaptive 10/100 Mbps network interface
USB Interface	2xUSB 2.0
NETWORK
Protocols	TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, Telnet, RTMP
System Compatibility	ONVIF (PROFILE S/T), SDK, P2P
GENERAL
Web Version	Web6
Language	English
Operating Conditions	-10°C~55°C, 10%~90% RH
Power Supply	DC12V 3.33A
Consumption (without HDD)	≤10W (without HDD)
Chassis	1U
Dimensions	44×255×231mm, (1.78×10.04×9.09 inch)
Weight (without HDD)	0.8Kg (1.76lb)
