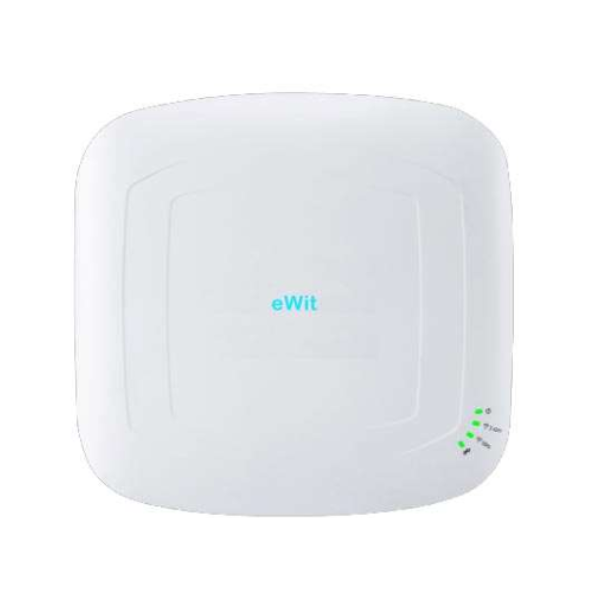

EW-WAP-X6 is a high-performance dual-band gigabit wireless access point developed by EWIT, based on the latest
802.11ax (Wi-Fi 6) standard. It delivers a combined maximum wireless throughput of up to 2975 Mbps. The device
operates simultaneously on both 2.4GHz and 5GHz frequency bands. The 2.4GHz band supports speeds of up to 575
Mbps, while the 5GHz band offers up to 2400 Mbps. EW-WAP-X6 is equipped with advanced wireless technologies
including MU-MIMO, OFDMA, spatial multiplexing, and Target Wake Time (TWT), ensuring high efficiency, lower
latency, and better performance in dense network environments.

• The Access Points must be compatible with IEEE 802.11a/b/g/n/ac/ax standards and feature dual-radio functionality
  in compliance with the Wi-Fi 6 specification.
• The Access Point must support at least 4×4:4 MIMO on the 5 GHz band and 2×2:2 MIMO on the 2.4 GHz band (or
  higher). It should deliver a minimum data rate of 2400 Mbps on 5 GHz and at least 560 Mbps on 2.4 GHz.
• The Access Point shall be equipped with one 2.5 Gbps Ethernet port, one 1 Gbps Ethernet port, and a USB port. It
  should also support IoT technologies, including Bluetooth and Zigbee.
• The Access Points should support centralized management while also having the capability to operate as standalone
  devices.
• The Access Point should support full MIMO operation and be compatible with PoE, PoE+, uPoE, or PoH for power
  delivery.
• Security measures must be implemented to safeguard communication between the Access Point controller and the
  Access Points.
• The Access Point should support DC power input as an alternative to PoE for power supply.
• The AP should have a receive sensitivity of -98dBm
• The Access Point should be capable of detecting dual-band clients and automatically steering them to the 5 GHz
  band instead of the 2.4 GHz band.
• The AP should provide an antenna gain of minimum 3dBi on both the bands.
• The AP should provide minimum Tx Power of 26dBm on both the bands and Should support 1GB RAM and 512 MB flash.
• The AP should support 20, 40, 80, 160/80+80MHz channelization.
• The Access Point should support WPA2 and WPA3 Enterprise authentication with AES/CCMP encryption, along with
  authentication through 802.1X and Active Directory and access point should support 802.1q VLAN tagging.
• The access point should support WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i security
• The Access Point should concurrently support high-definition IP video, voice, and data applications without requiring
  any configuration changes. This capability must be demonstrable.
• The Access Point should support WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v.
• The AP should have the capability to support minimum 30 BSSID’s
• Should support 500 or more clients per support IPv6 dual stack from day one
• The Access Point should support mesh configuration where cable infrastructure may not be available either directly
  or through the controller
• AP should support DHCP and NAT
• The Access Point should support rate limiting, application recognition and control, access control lists, and device
  fingerprinting.
• Device should be UL 2043 Plenum Rated.
• Operating Temperature: 0ºC (32ºF) – 40ºC (104ºF). Operating Humidity: up to 95% non-condensing.
• Should be WiFi certified and WPC approved
• Mechanism for physical device locking using padlock /Kensington lock / equivalent
• Access Point to be provided with 24/7 tac support and warranty for 5 years
