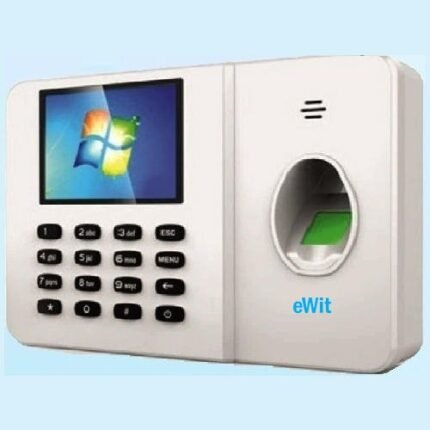

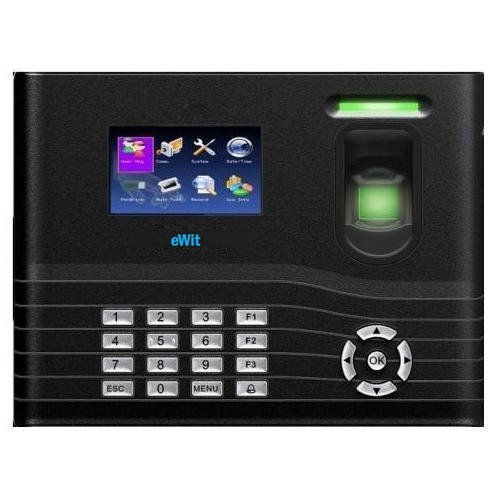

eWit OAXC-B01 Biometric System

OAXC-B01 is an innovative biometric fingerprint reader for time attendance and access control applications, Built-in 2000 mAh backup battery can eliminate power-failure problems. The OAXC-B01 supports optional GPRS and Wi-Fi and features the fastest commercial-based fingerprint matching algorithm and eWit high-performance, high-image quality optical fingerprint sensor. The 3″ TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and makes sure the data transmission terminal and PC can be easily done within several seconds.

Product Enquiry

Categories: BIOMETRIC, Biometric Attendance Machine, ELECTRONICS

Description
Reviews (0)

Features:

3″ Color TFT screen
ZK Fingerprint Sensor
Reads Fingerprint and/or Card
Multi-language in text and audio
Built-in Serial and Ethernet ports
Built-in battery backup provides approx. 4 hours continuous operation
Optional built-in wireless Wi-Fi or GPRS for wireless communication
SDK available for OEM customers and software developers

Specification:

Fingerprint Capacity	3,000
Record Capacity	100000
Display	3-inch Screen
Communication	TCP/IP, RS232-485, USB-host/client
Standard Functions	Work code, SMS, DST, Built-in Battery, Multiple Verify Mode,
	Self-Service Query, Automatic Status Switch
Optional Functions	ID/Mifare/HID, External Printer and Bell
Software ePersona	1.6
Power Supply	DC 12V 3A
Verification Speed	≤0.5 Sec.
Operating Temp.	0 °C- 45 °C
Operating Humidity	20%-80%
Dimension	211,5 × 159,4 × 47,8 mm (Length × Width × Thickness)
Net Weight	1.40 kg
