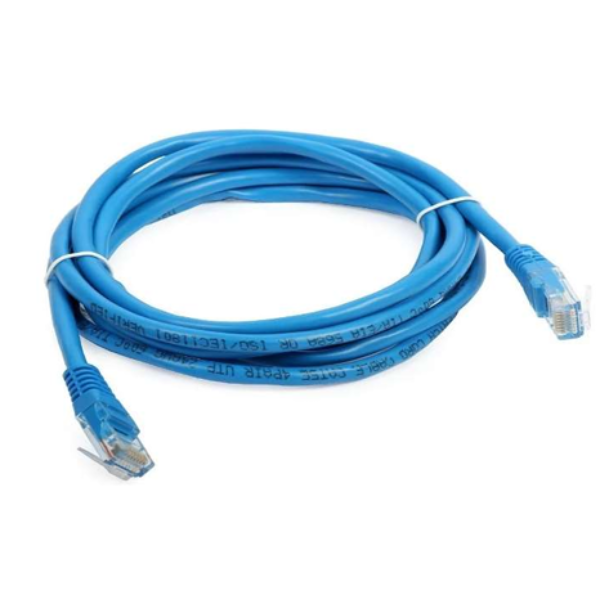

eWit Cat 6 Patch Cord
eWit solid cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by the TIA/EIA-568B.2 / TIA/EIA-568C.2 and IEC 60603-7-4 standards. As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. eWit cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.
EW-CAT6PC
• 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)
• 4 Pairs Unshielded Twisted Pair (UTP) Cable
• Flame property: The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1 (UL); FT-1
(CSA) standards.
| Cable Specifications | |
|---|---|
| Conductor Size | 24 AWG |
| Length | 1 Metre |
| Conductor Metal | Bare Copper |
| Color Code | Gray |
| Insulation Material | HDPE |
| Jacket Material | FR-PVC |
| Heat-resistant | 600 |
| Modular Connector/Plug | |
| Type | RJ-45 8P for Transparence color |
| Gold Plating | 03MUo |
| Contact Blade | Copper/ Alloy |
| Temperature Range | 200 to 750 °C |
| Dielectric Withstanding Voltage | 1000V DC/min < 05A |
| Insulation Resistance | 500 MΩ, 1000 DC/Min |
| Durability | 750 matching cycles |
| Cable-to-Plug Tensile Strength | 20lbs (89N) (min.) |
| UL Applications | (PC) UL94-V-0 |
