EW-ST408
Product Description

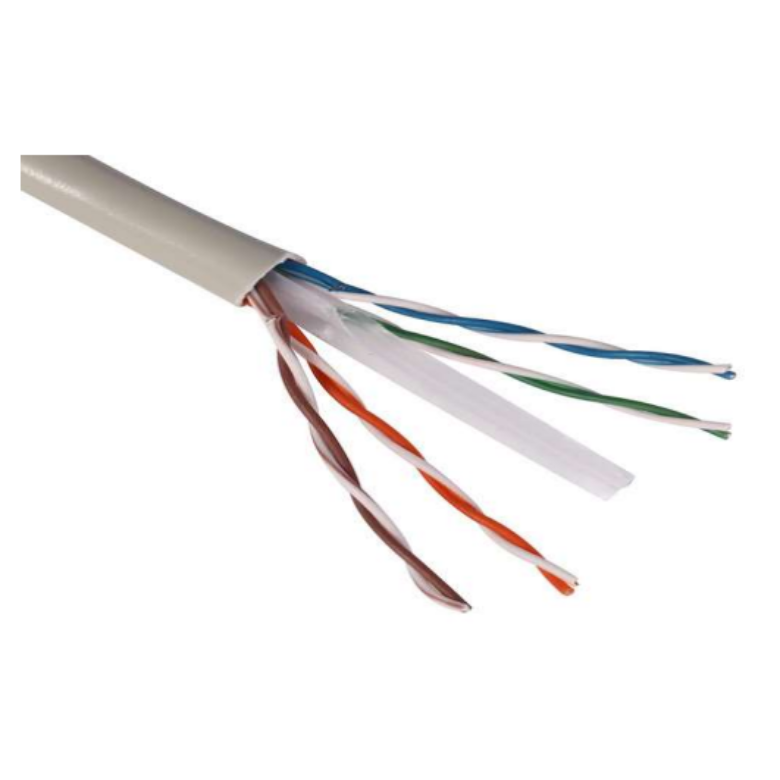

eWit 24/23 AWG copper wire insulated with Polyethylene. Two insulated conductors twisted together to form a pair, and four such pairs separated by a cross filler form the core unit jacketed with flame retardant PVC/LSZH. Enhanced performance cable enables delivering high-speed network.
Flame Rating
PVC-CM/CMR/CMX LSZH-IEC 60332-1; IEC 60754 1&2; IEC 61034-2. Specified and tested up to 250MHz or higher if required. Compliant to ANSI/TIA 568-C.2 Cat6, ISO/IEC 11801 Class E.
Description
Product Application
- 10 Base T (IEEE 802.3)
- 100 Base T (IEEE 802.3U)
- 1000 BASE-T (IEEE 802.3ab)
- 1000 BASE-TX
- TP-PMD (ANSI X3T9.5)
- 100 Mbps CDDI
- ATM 155
- 4/16 Mbps Token Ring (IEEE 802.5)
- Meets IEEE802.3af & 802.3at PoE
Features & Specifications
| Standard Length | 305 Meters |
|---|---|
| Cable Type | STP Solid CAT6 |
| No. of Wires | 4 Pair |
| Insulation | High Density Polyethylene |
| Rip Cord Material | Nylon |
| Pairs | 2 Insulated conductors twisted together |
| Construction | 23AWG |
| Sheath | FR-PVC, Insulation thickness 0.2mm nominal |
| Insulation Thickness | 0.22±0.02mm |
| Insulation Diameter | 0.93±0.05mm |
| Characteristic Impedance | 100 ± 15Ω |
| Insulation Resistance | Min. 5000 mega ohms-km at 20°C |
| Cable Diameter | 6.1 mm nominal |
| Insulation Material | Aluminium/Polyester Foil + Tinned copper Braiding |
| Conductor Resistance | ≤ 9.38 Ω/100m |
| Insulation Resistance | 100M Ω |
| Delay Skew | < 45nS |
| NVP (%) | 69% |
| Mutual Capacitance | < 5.6nF/100m |
| Resistance Unbalance | 5% Max |
| Capacitance Unbalance | 330 pF/100m |
| Temperature Rating | -20°C to +70°C |
| Operating Voltage | 72V |
| Bending Radius | <25.4mm at -20°C ±1°C |
| Pulling Force | ≥ 11.5 Kg |
| Dielectric Strength | 1.0KV DC or 0.75KV AC for 1 min |
| Certification & Standards | ISO, CE, FC, ROHS |
