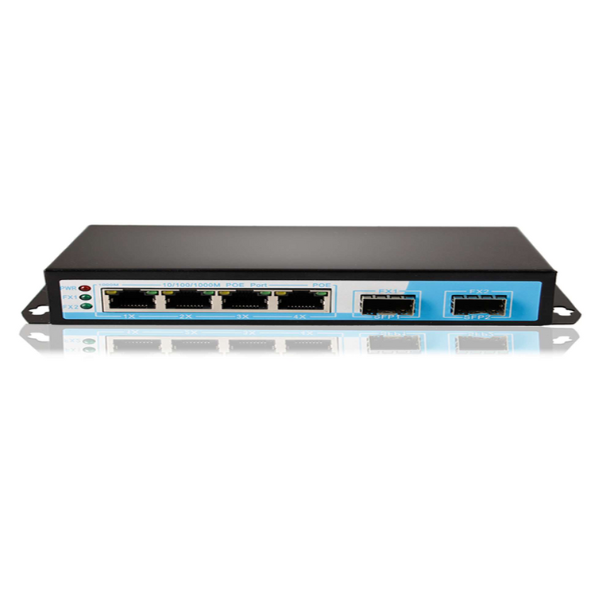

EW-S4PGF2
Specification:-
| Network Interface: | 4 10/100/1000Mbps PoE RJ45 port (port 1 port 4) 2 1000Mbps SFP Slots |
| Standard Network Protocols: | IEEE802.3 10BASE-T, IEEE 802.3u 100BASE-TX, ANSI/IEEE 802.3 NWay Auto-Negotiation, IEEE802.3x Flow Control, IEEE 802.3af/at standard |
| Forwarding Method: | Store-and-Forward |
| Flow Control: | Back-Pressure Flow Control in IEEE 802.3x Full Duplex |
| MAC address Table: | 1K QoS |
| Switching Capacity: | 1.2 GBPS |
| Packet Forwarding Rate: | 10M: 14,800pps 100M: 148,800pps |
| Forwarding Mode: | Store-and-forward switching |
| Packet Buffer Memory: | 4K |
| PoE Ports: | 1 To 4 |
| Jumbo Frame: | 10240 Bytes |
| PoE Power Budget: | 38W |
| VLAN: | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/MAC/Protocol-based VLAN Management VLAN configuration |
| Operating Temperature: | 0 °C to 40 °C |
| Storage Temperature: | -40 °C ~ 70 °C |
| Storage Humidity: | 5% to 95% RH Non-Condensing |
| Power Input: | 48V DC, 0.8 A Reverse Connection Protection |
| Certification: | CE, FCC, ROHS, ISO |
