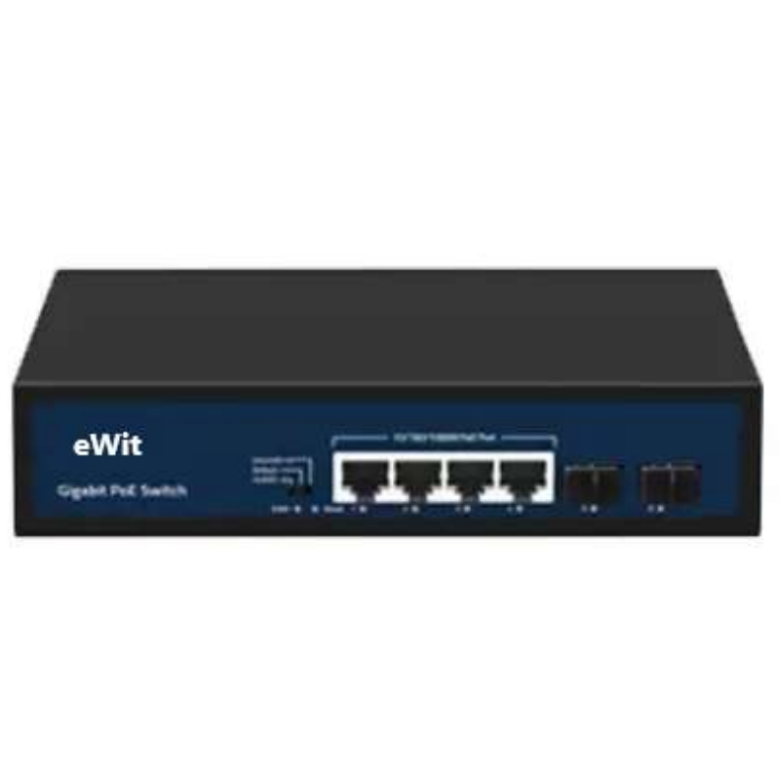

EW-P04E

Technical Specifications

PoE Ports	4: 100/1000Mbps PoE ports RJ45 ports
Uplink Ports	2: 1/100/1000 Ethernet Port
PoE Protocol	PoE (IEEE802.3af), PoE+ (IEEE802.3at) Hi-PoE
RJ45 Port	4: 10/100/1000Base-Tx RJ45 ports
Packet Buffer Memory	4MB
Flow Control	IEEE 802.3af, IEEE802.3at
MAC Table Size	Built-in over Current Protection
NTP	Support, Support Dual DC Power Backup
DHCP	Support
Switching Capacity	1 Gbps
VLAN	Support
Spanning Tree	STP, RTSP, MSTP
LLDP	Support, 250m Switch
Capability	10Gbps Forwarding Mode, Store and forward
Forwarding Rate	100Mbps: 14880pps, 1000Mbps: 14800pps
Working Temperature	–10°C to 55°C (14°F to 131°F)
Weight	1.5 KG
Certification	ISO, CE, FC, ROHS
