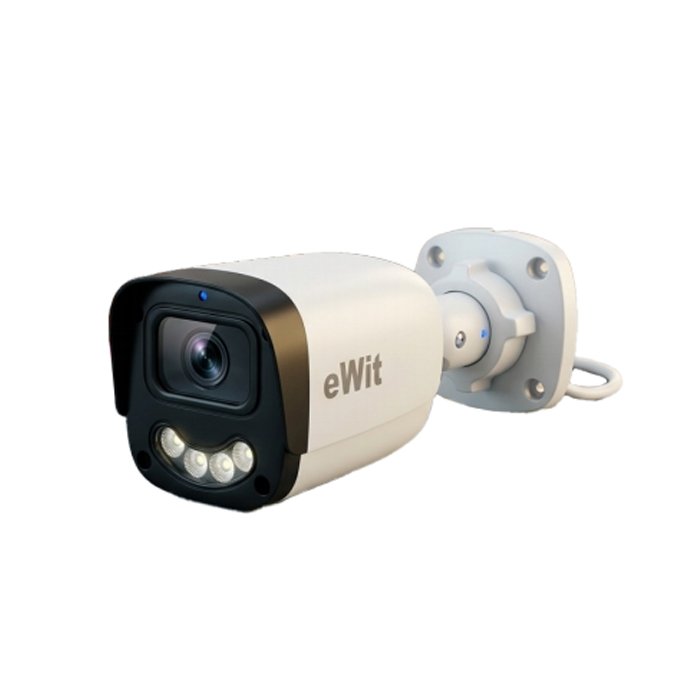

EW-IP8050B
With simple installation, easy operation, and an excellent performance-to-cost ratio, this camera series is ideal for small and medium-sized environments, including homes, residences, small retail stores, and other small and medium-sized businesses.
Featuring the latest Power over Ethernet (PoE) technology, the camera simplifies installation by receiving power and transmitting data through a single Ethernet cable, reducing the need for separate power connections. Additionally, the Region of Interest (ROI) feature allows users to focus on specific areas of a scene while maintaining overall situational awareness.
Key Features
-
1/2.7″ Progressive Scan CMOS Sensor
-
Resolution: 3840 × 2160 @ 15 fps; MJPEG up to 2688 × 1520 @ 25/30 fps
-
Lens: 3.6 mm Fixed Lens
-
Minimum Illumination: Color: 0.01 Lux @ (F1.4, 30 IRE)
-
Video Compression: H.265, H.265+, H.264, H.264+ Dual-Stream Encoding
-
Wide Dynamic Range (WDR): 120 dB
-
3D Digital Noise Reduction (3D DNR)
-
Infrared (IR) Range: Up to 30 meters
-
Alarm I/O Support
| Camera | Image Sensor | 1/2.7” Progressive Scan CMOS Image Sensor (0.9407 CM) |
| Scanning System | Progressive | |
| Min. Illumination |
Color: 0.01 Lux @ (F1.4, 30 IRE) B/W: 0.001 Lux @ (F1.4, 30 IRE) 0 Lux with IR On |
|
| Shutter Time | 1/3s – 1/100000 sec | |
| Slow Shutter | Yes | |
| P-IRIS | Yes | |
| DNR | 3D DNR | |
| Max. Image Resolution | 8 Mega Pixel (3840×2160) | |
| Day& Night | IR Cut Filter. | |
| WDR | WDR 120db | |
| BLC/AGC/SI | Auto/Manual | |
| Gain Control | Auto/Manual | |
| NR | 3D DNR | |
| S/N Ratio | >58db | |
| RAM/ROM | 256GB/128GB | |
| Camera | White Balance | Auto/Manual/Natural/Street Lamp/Outdoor/Regional |
| Camera | Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Camera Lens | Focal Length | 3.6MM (2.8MM Optional) |
| IRIS | Fixed | |
| Lens Type | Fixed Lens | |
| Lens Mount | Integrated | |
| Max Aperture | F1.4 | |
| DORI |
3.6MM: D-98.7M, O-39.5M, R-19.7M, I-9.9M 2.8MM: D-84.8M, O-33.9M, R-17.0M, I-8.5M |
|
| Angle of View |
3.6MM: Horizontal: 86°, Vertical: 49°, Diagonal: 100° 2.8MM: Horizontal: 110°, Vertical: 58°, Diagonal: 132° |
|
| Camera Lens | Close Focus Distance | 2.8mm~1.5M, 3.6: 1.9M |
| IR | IR Range | Up to 30 Meter |
| Wavelength | 850nm | |
| Sharpness | HLC | 50Hz:25fps CIF (352×288) 60Hz:30fps CIF (352×240) |
| BLC | Support | |
| OSD | 8 OSD | |
| ROI | 4 Area | |
| Defog | Support | |
| AWB | Support | |
| AGC | Support | |
| Compression | Video Compression |
Main Stream: H.265/H.264/H.265+/H.264+ Sub Stream/ Third Stream/Fourth Stream/Fifth Stream/Custom Stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile | |
| H.264+ | Main Stream Supports | |
| H.265 Type | Main Profile | |
| H.265+ | Main stream supports | |
| Video Bit Rate | H.265: 3Kbps-8192Kbps, H.265: 3Kbps-8192Kbps | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
