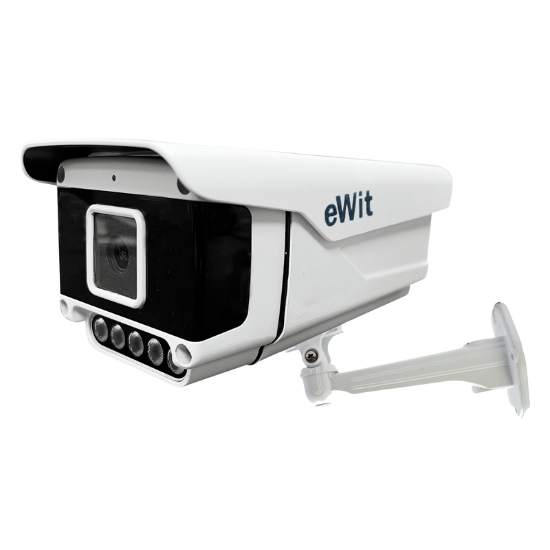

EW-IP8050B
With features of simple installation, easy operation, and high performance-cost ratio,
this series camera is applicable to small and medium-sized scenes such as homes/residences,
small retail stores, and other small and medium-sized enterprises.
This product uses the latest PoE technology to troubleshoot the occurrence of system issues,
making it easier to use. With the help of this technology, the camera consumes power directly
from the power supply and does not require any mid-way switches.
Regions of Interest (ROI) is a user-defined feature that allows the operator to monitor specific
areas of a scene while maintaining overall situational awareness of less important areas.
Key Features
- 1/1.8” Progressive Scan CMOS
- 2688×1520 @ 30 fps, MJPEG up to 1920×1080 @ 30 fps
- 10–50 mm Motorized Lens
- Color: 0.001 Lux @ (F1.2, AGC ON)
- H.265, H.265+, H.264, H.264+
- 140 dB WDR
- 3D DNR
- IR Range up to 30 meters
- Built-in Micro SD / SDHC / SDXC Card Slot, up to 256 GB
- Alarm I/O
Description
| Camera | |
|---|---|
| Image Sensor | 1/1.8” Progressive Scan CMOS Image Sensor (1.411cm) |
| Processor | High-Performance Embedded Processor |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.0001 Lux @ (F1.2, AGC On), B/W: 0.00001 Lux with IR On |
| Effective Pixels | 2688 (H) × 1520 (V) |
| Shutter Time | 1/50s – 1/100000 sec |
| Slow Shutter | Yes |
| Shutter Mode | Single Shutter |
| P-IRIS | Yes |
| DNR | 3D DNR |
| Image | |
| Max Image Resolution | 4MP (2688 × 1520) @ 50fps / 60fps |
| Day & Night | IR Cut Filter |
| WDR | DWDR 140dB |
| BLC / GC / SI | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| S/N Ratio | >56dB |
| Back Light Compensation | Auto BLC / HLC / WDR / 140dB |
| White Balance | Auto / Manual / Natural / Street Lamp / Outdoor / Regional |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–180°, Rotate: 0°–360° |
| Camera Lens | |
| Focal Length | 10–50 mm |
| Lens Type | Motorized Varifocal Lens |
| Lens Mount | Integrated |
| IRIS Control | Fixed / Auto / Manual / P-IRIS |
| Max Aperture | F1.33 |
| Focus | Auto / Semi-Auto / Manual |
| Field of View | Horizontal: 9.4°–40.8°, Vertical: 5.4°–22.9°, Diagonal: 10.7°–46.9° |
| Built-in ANPR | Automatic License Plate Recognition System |
| Infrared | |
| IR Range | Up to 30 meters |
| Wavelength | 850 nm |
| Compression | |
| Video Compression | H.265 / H.264 / H.265+ / H.264+ |
| H.264 Type | Baseline / Main / High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR / VBR |
| Audio | |
| Audio Support | Yes |
| Noise Filtering | Yes |
| Sampling Rate | 8kHz / 16kHz / 32kHz / 44.1kHz / 48kHz |
| Network | |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, RTP, SMTP, SNMP, IPv4/IPv6 |
| Users | 32 |
| Privacy Masking | 4 Areas |
| Mobile Support | iPhone, iPad, Android |
| Integration | ONVIF (Profile S), SDK & API |
| Interface | |
| Ethernet | 1 × RJ45 10/100 Mbps |
| Audio I/O | 1 Input / 1 Output |
| Alarm I/O | 3 Input / 2 Output |
| Video Output | 1Vp-p Composite (75Ω CVBS) |
| Reset Button | Yes |
| Storage | Micro SD / SDHC / SDXC (Up to 256GB) |
| General | |
| Operating Temperature | -40°C to +65°C |
| Humidity | 10% – 90% |
| Power Supply | PoE (802.3at), Max 18W |
| Power Consumption | Max 13W |
| Weather Proof | IP67, IK10 |
| Weight | 480g |
| Casing | Metal |
| Certifications | BIS, CE, FCC, RoHS, GDPR |
| Country of Origin | India |
