EW-IP50300Z

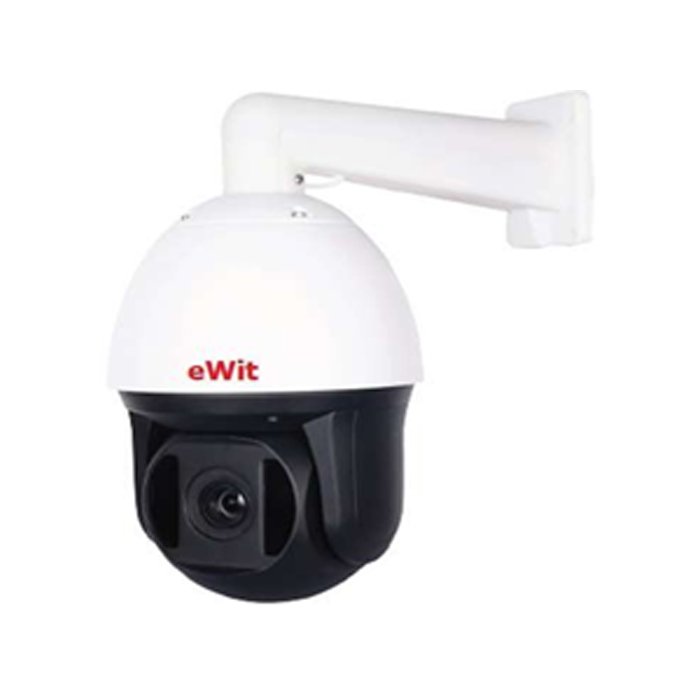

eWit EW-IP50300Z, 5MP 44x Network IP PTZ Speed Dome adopts 1/2.7″ progressive scan CMOS chip. With the 44× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Description
Key Features: –
- 1/2.7” 5MP PS CMOS Image Sensor
- 50/60fps@1080P
- Powerful 44x Optical and 16x Digital zoom
- WDR (140dB), 3D DNR, Day/Night (ICR), EIS, Defog, ROI, BLC, HLC
- Support Starlight Technology Up to 300 presets, auto scan, 8 tour, 5 pattern, auto pan
- IR Range of 300 Meter, IP67, Support PoE+
- Max 400° /s pan speed, 360° endless pan rotation
- Built-in 2/1 alarm in/out
| Camera | |
|---|---|
| Image Sensor: | 1/2.7” Progressive Scan CMOS Sensor |
| Effective Pixels: | 2592(H) x 1944(V) |
| System Signal: | PAL/NTSC |
| Resolution: | 5 MP |
| Minimum Illumination: | Color: 0.005 Lux @ (F1.2) B/W: 0.001 Lux @ IR LED On |
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/ Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain Control: | Auto/Manual |
| Shutter Time: | 50Hz: 1/2s to 1/100000s |
| Auto Exposure: | Automatic Level Control/Electronic Level Control |
| Signal Process: | Digital Signal Process |
| Privacy Mask: | 24 Programmable Privacy Masks, Mask Color Configurable |
| Focus Mode: | Auto/Manual |
| WDR: | 140 dB WDR |
| DNR: | 3D DNR |
| AGC Control: | Auto/Manual |
| IR Intensity: | Automatic |
| PTZ Controls: | Yes |
| S/N Ratio: | >50db |
| Back Light Compensation: | BLC/HLC/WDR (120db) |
| Lens | |
| Focal Length: | 4.6~203MM |
| Digital Zoom: | 16X |
| Optical Zoom: | 44X |
| IRIS Type: | Auto/Manual |
| Aperture Range: | F1.6~3.0 |
| Zoom Speed: | 3.6s Approx. |
| Field of View: | 2.32°~61.2° |
| Focus Control: | Auto/Manual |
| Close Focus Distance: | 100~1000mm (Wide-Tele) |
| IR | |
| IR Range: | 300 Meter |
| Smart IR: | Yes |
| PTZ | |
| Pan Range: | 0~360° Endless |
| Tilt Range: | Auto Flip from -0° to 90° |
| PAN Speed: | 0.1°/s to 200°/s Preset Speed: 400°/s |
| Tilt Speed: | 0°/s to 100°/s Preset Speed: 320°/s |
| Presets: | 300 |
| Preset Speed: | Pan: 400° /s; Tilt: 300° /s |
| Proportional Zoom: | Available |
| Power of Memory: | Yes |
| Pattern Scan: | 4 Pattern Scans, Record Time Over 10 Minutes for Each Scan |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| Patrol Scan: | 8 Patrols, up to 32 Presets for Each Patrol |
| 3D Positioning: | Yes |
| PTZ Position Display: | Yes |
| Preset Freezing: | Yes |
| Scheduled Task: |
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Compression Standard | |
| Video Compression: |
Main stream: 1080P/720P/1.3M (1 ~ 50/60fps), Sub stream1: D1/CIF (1 ~ 25/30fps), Sub stream2: 1080P/1.3M/720P/D1/ CIF (1 ~ 25/30fps) |
| H.264 Type: | Baseline Profile/Main Profile/High Profile |
| H.264+: | Yes |
| H.265 Type: | Baseline Profile/Main Profile/High Profile |
| H.265+: | Yes |
| Bit Rate Control: | CBR/VBR |
| Video Bit Rate: | 32Kbps~16Mbps |
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate: | 16Kbps~16Mbps |
| SVC: | Yes |
| Smart Feature | |
| Basic Event: | Motion Detection, Video Tampering Detection, Exception |
| Smart Event: |
Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| Smart Record: | ANR |
| ROI/Defog/AWB/BLC/HLC: | Support |
| Auto-Tracking: | Yes |
| Special Feature: | Defog, IR Range up to 300m, Up to 500 Presets, 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Image | |
| Max. Resolution: | 2592×1944 |
| Video Stream: |
Main Stream: 30fps@(2592×1944), 45fps@(2048×1536), 60fps@ (1920×1080, 1280×960, 1280×720, 704×576) Sub Stream: 60fps@ (704×576, 640×480, 640×360) Third Stream: 30fps@ (1920×1080, 1280×720, 704×576) |
| Image Setting: | Saturation, Brightness, Contrast, Sharpness |
| OSD: | 16X16, 32X32,48X48, 64X64, 96X96 Total 5 Regions |
| Privacy Masking: | 5 Areas |
| Region of Interest: | 4 Areas |
| Image Enhancement: |
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Antiflicker, Corridor Mode, Deblur, Watermark |
| Network | |
| Event Trigger: | Motion Detection, Network Disable Alarm, IP Conflict, Mac Conflict Detection |
| Advanced Function: | Auto Tracking, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Video Analytics: |
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection (Face Detection) , People Counting, Object Left, Object Removed |
| API: | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protocols: |
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Simultaneous Live View: | Up to 20 channels |
| User/Host: | Up to 32 users 3 levels: Administrator, Operator and User |
| Security Measures: |
User Authentication (ID and PW), Host Authentication (MAC Address); HTTPS Encryption; IEEE 802.1x Port- Based Network Access Control; IP Address Filtering |
| Web Browser: | IE 8 to 11, Chrome 31.0+, Firefox 30.0+ |
| Interface | |
| Network Interface: | 1 RJ45 10 M/100 M Ethernet, Hi-PoE |
| Audio Input/ Output: | 1-Ch Audio Input, 2 to 2.4 V[p-p], 1 KΩ ± 10% 1-Ch Audio Output, Line Level, Impedance: 600 Ω |
| Alarm Input/ Output: | 2-Ch Alarm Input/2-ch Alarm Output |
| On Board Storage: | Support SD Micro SD Card Up to 256GB |
| General | |
| Language: | Up to 15 Language |
| Power: | 24 VAC, 2.2 A, 50/60 Hz and Hi-PoE, 42.5 to 57 VDC, 1.41 A Max.: 30 W, including max. 10W for IR |
| Working Temperature: | -40°C to 70°C (-22°F to 149°F) |
| Working Humidity: | ≤ 90% |
| Protection Level: | IP67, IK10 |
| Material: | ADC 12, PC+10% GF |
| Weight: | 4 Kg |
| Certificate: | BIS, CE, FC, ROHS, GDPR |
| Country of Origin: | India |
