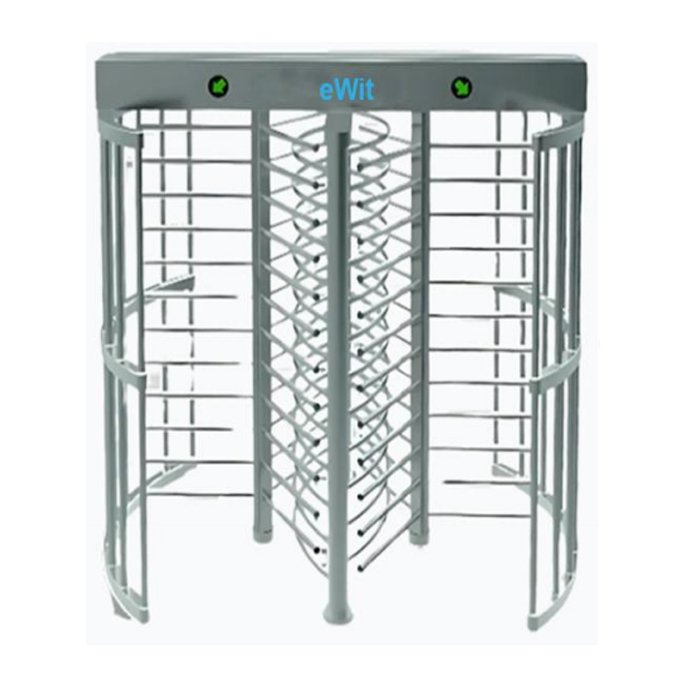

EW-FHT23D
Dual Lane Full Height Turnstile Gate
EW-FHT23D is a Double Lane 3 Rod Full Height Turnstile driven by a DC Brushless Motor, allowing users to pass with very small passing resistance. It supports multiple operating modes including bi-directional, single-directional, always free, and always locked.
It comes with an LED direction indicator and an automatic opening/closing function when powered off. The turnstile features an Anti-hit function—if the turnstile touches a passing person, it stops immediately and automatically restarts operation, ensuring safe and reliable access control.
Key Features
- Designed for heavy-duty operation with aesthetics in mind
- Minimal exposed hardware for sleek appearance and safety
- Heavy gauge materials meeting ASTM standards
- Consists of rotor assembly, shield, barrier section, mechanism housing, and ceiling plate
- Dual lane operation for independent to and from entry/exit operations
- LED direction indicators on each side
- Automatic reset and power-off automatic opening/closing function
- Supports integration with any RFID or Biometric Reader through NO input
Description
Technical Specifications
| Specification | Details |
|---|---|
| Integration | Face, Fingerprint, Card, Password & QR |
| Protection Level | IP44 |
| Humidity | 95% |
| Power Supply | 100V ~ 240V AC |
| Solenoid / Motor | 24V DC 100% |
| Operating Voltage | 12V Plus |
| Passage Width | < 550 mm (Dual Lane) |
| Arms | Standard: 3 Spokes @ 120° Angle × 10 Rotating Arms Optional: 4 Spokes @ 90° Angle × 10 Rotating Arms |
| Frequency | 50 – 60 Hz |
| Electromagnetic Drive | DC |
| Operating Temperature Range | -25°C to +70°C |
| Power Consumption | 30W |
| Dimensions | 2100 × 1500 × 2310 mm |
