| Specifications | |
|---|---|
| Biometric Access Control Hardware Architecture | Device with inbuilt Controller |
| Type of Biometric Device | Finger Print Scanning |
| Biometric Access Control Software Architecture | Web Based (On premise server solution) |
| Types of Biometric Credentials Required | Finger + RFID Card+ Pin |
| Type of RFID Card Supported | EM Prox |
| Maximum Fingerprint Template Storage Capacity (Number) | 2400 |
| Maximum Palm Templates Storage Capacity in Palm Vein Device (Number) | 0 |
| Screen Type | Non Touch |
| Microcontroller | 64 bit |
| RAM (MB) | 256 |
| Storage (GB) | 4 |
| USB Ports for Communication/Data Transfer | YES |
| If Yes, Number of USB Ports | 1 |
| LAN Connectivity | YES |
| If Yes, Type of LAN Connectivity | Ethernet 10/100/1000 |
| Wi-Fi Connectivity | NO |
| If Yes, Type of Wi Fi Connectivity | 802.11 a/b/g/n |
| Type of Data Supported | 4G/Lte |
| Auxiliary Input/output Ports | YES |
| Tamper Detection | YES |
| Buzzer | YES |
| External Reader Support | NO |
| Exit Switch Support | NO |
| Door Lock Supported | NO |
| Type of Lock Supported | NA |
| Biometric Matching Modes Supported | 1 : N |
| Operating System Support | Windows 32-bit |
| Database Server Support | MS SQL 2012 Standard |
| Web based User Friendly GUI Application | NO |
| DE Duplication function at local and central level | NO |
| Any time anywhere Enrolment | NO |
| Anyone anywhere Access | NO |
| Real-time monitoring of door controllers from centralized location | YES |
| Automatic Template Distribution of Biometric Templates on Assigned Devices to User | YES |
| Automatically push the data to server by the door controller | YES |
| API Support for Third Party Software Integrations | yes |
| SMS Notifications Supported | NO |
| E-mail Notifications Supported | NO |
| Automatic E-mail Scheduler Facility for Different Reports | NO |
| Automatic Database Backup Facility at Scheduled Time | YES |
| Backend Database support | MS SQL 2008 R2 or above |
| Multi Location Connectivity | YES |
| E map Feature | YES |
| Security Guard Tour Feature Support | NO |
| Employee Anti-pass back Feature Support | NO |
| Door Interlocking Support | NO |
| 2 Person Authentication Feature for Secured Area | NO |
| Customized Report Generation Facility | YES |
| Employee specific Multiple Access level Support | YES |
| Network Based Integration with External Access Barrier Devices | NO |
| Support of Integration with Video Surveillance | NO |
| Elevator Access Control Feature Support | NO |
| Fire Alarm Integration Support | NO |
| BIS Registration Under CRS of Meity | YES |
| BIS Registration Number and its validity | NA |
| RoHS Compliance | YES |
| Other Certifications Available | CE |
| Type Test Certificate Covering all parameters and Environmental tests from STQC certified lab | NO |
| If Yes, TTC Number and Date | NA |
| If Yes, Name of the Lab | NA |
| If Yes, Address of the Lab | NA |
| Power Source Requirement | 230 V +/- 10% V AC, 50 Hz |
| Battery Backup Unit Support | YES |
| Installation and commissioning is included in the scope of supply | YES |
| Warranty (Years) | 1 |

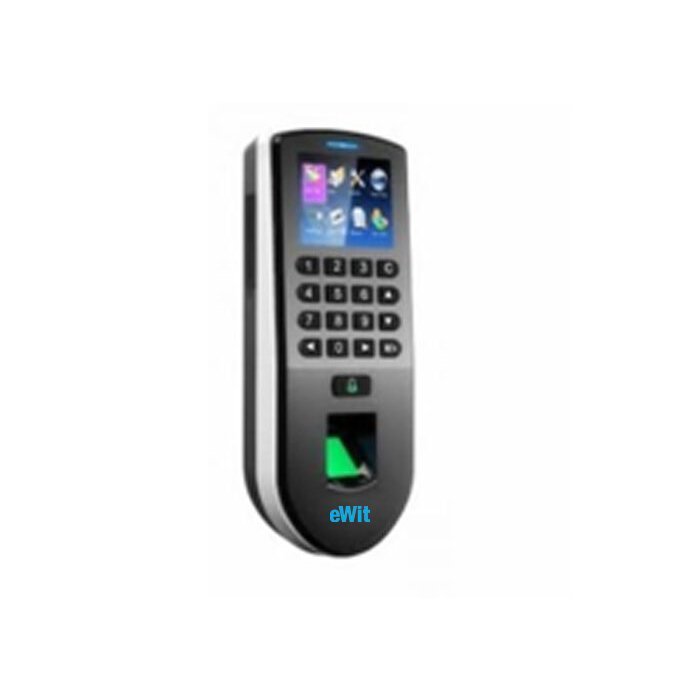

EW-F19
