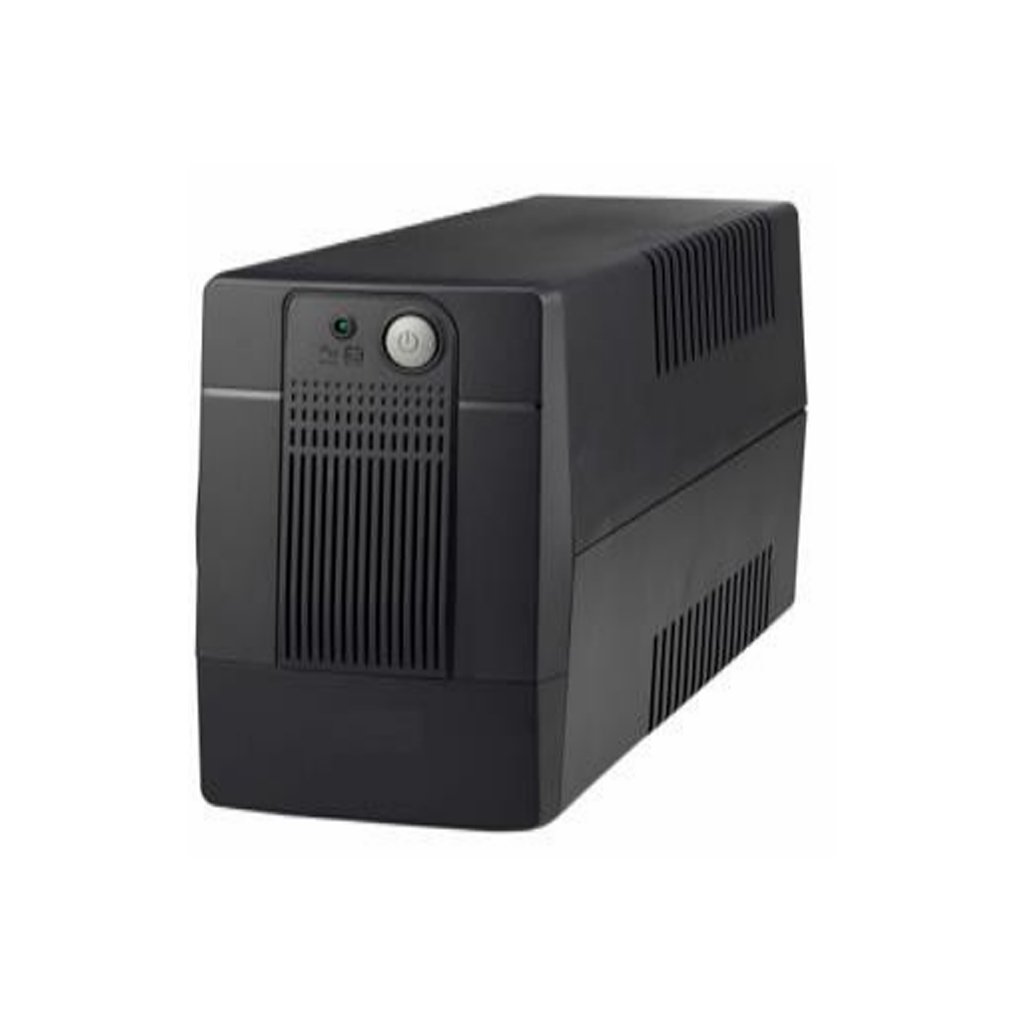

EW-EO1602
Key Features-
- Lineinteractive UPS
- DoubleBoost
- Autorestart while AC is recovering
- MicrocontrollerBased
- GeneratorCompatible
- WideInput Range
- Automatic Voltage Regulation (AVR)
Description
| Feature | Details |
| Capacity | |
| VA/W | 1600VA / 960W |
| Input | |
| Nominal Voltage | 220-240 VAC |
| Voltage Range | 140-300 VAC |
| Frequency | 50/60 Hz |
| Plug Type | 3 Pin plug |
| Output | |
| Voltage Range (AC mode) | 230VAC ± 5% |
| Voltage Range (Batt. mode) | 230VAC ± 10% |
| Frequency Range (Batt. mode) | 50/60 Hz ±1% |
| Transfer Time | 4 – 8 ms typ. |
| Wave Form | Simulated Sine Wave |
| No. of Output Sockets | 4 |
| Protections | Overload, Short Circuit, Over Discharge & Over Charge |
| Battery | |
| Battery Type | 12V 9Ah x 2 Nos |
| Charging Current | 1.2A |
| Recharge Time | 6 – 8H typ. (up to 90%) |
| Indicators | |
| No. of LEDs | 3 LEDs |
| AC Mode | Green LED Glows |
| Battery Mode | Orange LED blinks (10 sec interval) |
| Fault | Red LED Glows |
| Alarm | |
| Battery Mode | Beeping Every 30 seconds |
| Low Battery | Beeping Every 1 second |
| Overload | Beeping Every 0.5 second |
| Fault | Continuous Beeping |
| Physical Details | |
| Net Weight | 7.39 kg |
| Package Dimension | 375 x 175 x 248 mm |
| Environmental Factors | |
| Operational Temperature | 0-40°C |
| Noise Level | < 45dB |
| Protection | IP21 |
| Casing | Plastic |
| Certification | ISO, CE, FCC, ROHS |
| Country of Origin | India |
