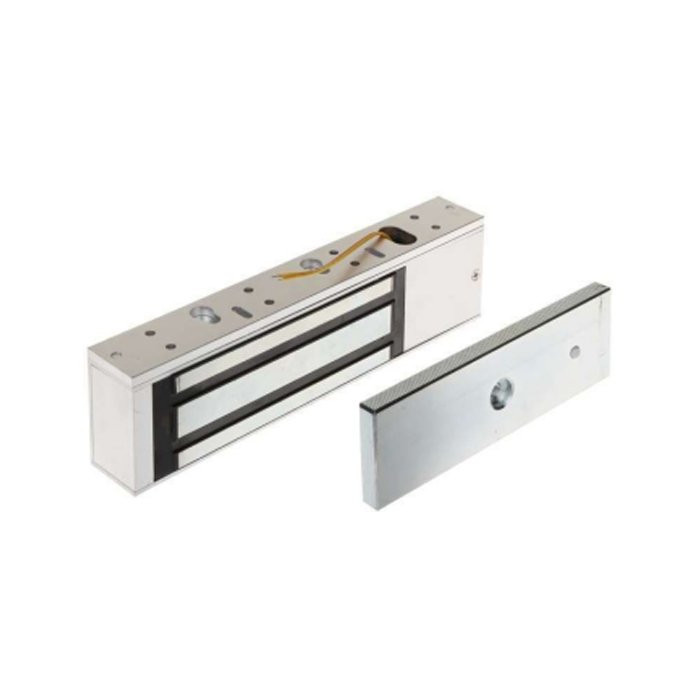

EW-EM60L
The EM60L series electromagnetic locks are renown with its excellent holding force and the remarkable features.
The series compliance CE, FCC and ROHS test are manufactured under the highest quality control to achieve the commitment to customer who always satisfied with maximum quality and reliability.
Features:-
- Idealfor Double Swing Doors
- DualVoltage Selectable (12VDC)
- LowCurrent Consumption
- ReliableHolding Force
- HallEffect Sensor Monitoring Output
- Green/RedLED Indication for EM Lock Status
- Durableand Silent Operation
- CosmeticizeAnodized Aluminum Casing
- Surge& Spike Protection PCB
- AntiTamper Jam Nuts
- FullRange of Optional Brackets
- AntiResidual Magnetism Kick off Button
Description
| Specification | |
| Voltage Output: | 12VDC |
| Current Draw: | 12V/500mA |
| Holding Force: | 600 lbH |
| Magnet Size | 250 x 42 x 26 mm |
| Armature Size | 180 x 38 x 11 mm |
| Hall Effect Contact: | SPDT rated 2A at 24 VDC |
| Anti-Rust Surface Treatment: | -17dB -19dB |
| Operating Temperature: | (-10 to 55)0C (14 to 131)0F |
| Housing Finishing | Anodized Aluminum |
| Operating Humidity: | 0~95% (Non Condensing) |
| Weight: | 2.2Â KG |
| Certificate: | CE, FCC, ROHS |
