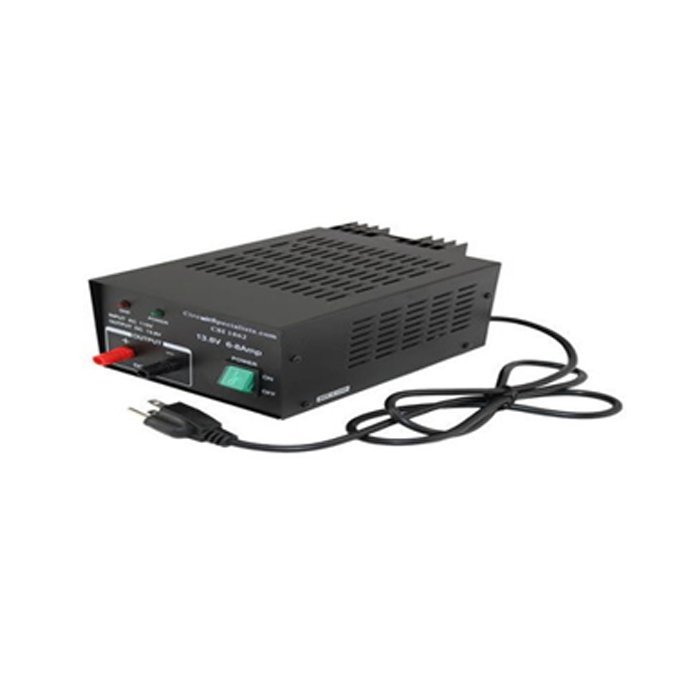

EW-DCPS 12V 10AMP

Category: ELECTRONICS

Description
Reviews (0)

GENERIC
DC Regulated power supply as per	QRs/Specification approved by CRPF vide Lr.No.BV7/2018- 19C(DRPS) dated.14.01.2019
OUTPUT
Variable voltage range	0 to 30 V (+10%)
Variable voltage control	Single turn coarse and fine control, continuously adjustable
Variable current range	0 to 30 A (+10%)
Variable current control	Single turn coarse and fine control, continuously adjustable
Configuration	Constant Voltage and Constant Current
Load regulation	≤ +/- 0.1% + 2 mV for V 10% change in line voltage
Line regulation	≤ +/- 0.1% + 2 mV for load change on zero to full load
Ripple and Noise	1 mV RMS Max. 20 Hz to 20 MHz
Stability under constant line, load and temperature – in Constant Voltage mode	< +/-0.2% +/-10 mV
Stability under constant line, load and temperature – in Current mode	< +/-0.2% +/- 0.5 mA
Transient response	0.1 set to within 10 mV of set output voltage for load change from 50% to 90%
Total output power	Nominal: 900 Watts, Maximum: 2000 Watts
Meters	Display to indicate Volts and Amps.
Voltage and current accuracy	≤ +/- 0.5% ref. voltage 1 volt
Terminals	Provided on the front / rear panel
INPUT
voltage / Frequency	220 V +/- 10%, 50 Hz, Single Phase AC
Total input VA	1300 VA or better @ 65% effieiency
Input current rating	Nominal: 5.05 Amps @ 220m Volts, Maximum: 0.28 Amps @ 207 Volts
Connection	3 Pin, 15 Amps Moulded cord
PROTECTION
Overload & Short circuit (Through CC/CV Mode)	DC Fuse + MCB as well as AC MCB or over voltage protection / over current protection
INPUT
voltage / Frequency	220 V +/- 10%, 50 Hz, Single Phase AC
Total input VA	1300 VA or better @ 65% effieiency
Input current rating	Nominal: 5.05 Amps @ 220m Volts, Maximum: 0.28 Amps @ 207 Volts
Connection	3 Pin, 15 Amps Moulded cord
PROTECTION
Overload & Short circuit (Through CC/CV Mode)	DC Fuse + MCB as well as AC MCB or over voltage protection / over current protection
