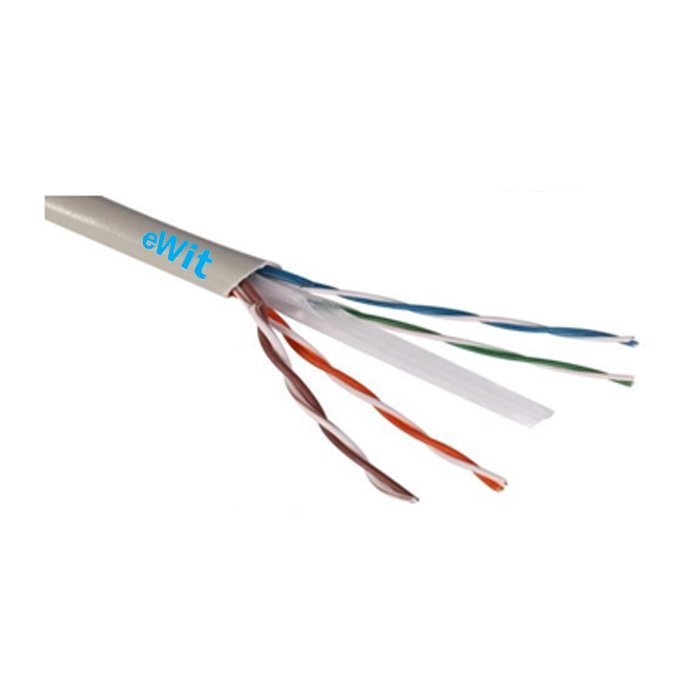

EW-CT408
| Features | Specification |
|---|---|
| Cable Type: | UTP Solid CAT6 |
| No of Wires: | 4 Pair |
| Insulation | High Density Polyethylene |
| Rip Cord Material: | Nylon |
| Pairs | 2 Insulated conductors twisted together |
| Construction: | 23AWG |
| Sheath | FR-PVC Insulation thickness 0.2mm nominal |
| Insulation Thickness: | 0.22±0.02mm |
| Insulation Diameter: | 0.93±0.05mm |
| Characterstic Impedance | 100 ± 15Ω |
| Insulation Resistance: | Min. 5000 mega ohms-km at 20°C |
| Cable diameter | 6.1 mm nominal |
| Insulation Material: | Aluminum/ Polyester Foil + Tinned copper Braiding |
| Conductor Resistance | ≤ 9.38 Ω/100m |
| Insulation Resistance: | 100M Ω |
| Delay Skew | <45nS |
| NVP (%) | 69% |
| Mutual Capacitance | ‹ 5.6nF/100m |
| Resistance unbalance | 5% Max |
| Temperature Rating: | -20° to +70°C |
| Operating Voltage | 72V |
| Dielectric Strength | 1.0KV dc or 0.75KV ac for 1min |
| Certification & Standards: | ISO, CE, FC, ROHS |
