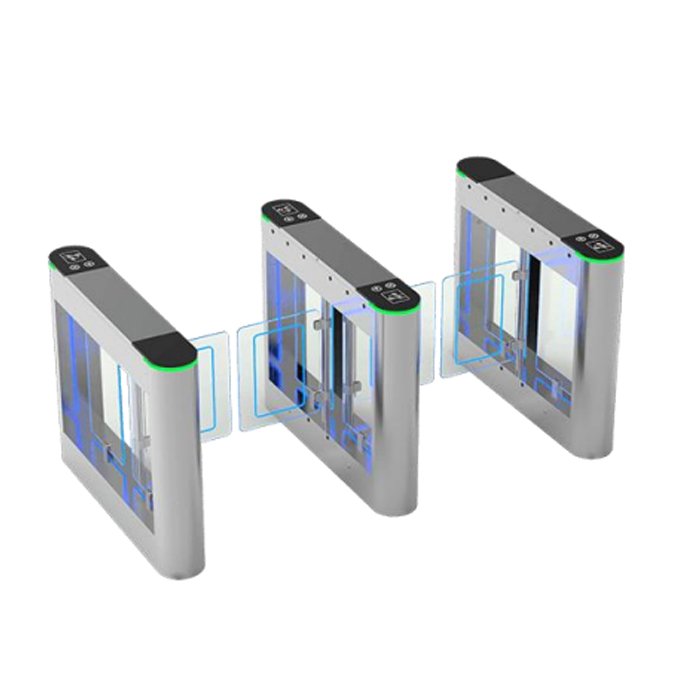

EW-ASG2601 / EW-ASG2602
Automatic Swing Gate
EW-ASG2601 / EW-ASG2602 is a fully Automatic Swing Gate Barrier powered by a 24V Brushless DC Motor. It supports multiple access modes, including card swiping, face recognition, fingerprint verification, infrared induction automatic opening, and button opening.
The device features accurate identification technology along with advanced safety functions such as wrong entry and forced entry infrared alarms. It ensures fast, efficient, and secure access control, offering a user-friendly and highly convenient experience.
Key Features
- 28 Million movement life cycles for ultra-durable, continuous heavy-duty performance
- Fast 0.5–0.8 second running speed for high efficiency
- Features fault self-inspection and voice prompt system for easy operation and maintenance
- High-grade infrared sensors with high light resistance (up to 100,000 lux) and 6 ms rapid response time
- Advanced infrared alarm triggered immediately in case of unauthorized or wrong-direction entry
- Automatic reset function (default 3s) cancels passage permission if user does not cross
- Audible and visual alarms for tailgating, illegal intrusion, and gate forced closure
- Anti-tailgating and anti-collision single-person passage verification
Description
Technical Specifications
| Specification | Details |
|---|---|
| Integration | Face, Finger, Card, PIN & QR |
| Housing Material | SS304, Tempered Glass, Acrylic |
| Passage Width | Standard 600 mm (≤ 900 mm can be customized) |
| Running Speed | 0.5 – 0.8 sec |
| Mechanism | 24V Brushless DC Motor, Low Noise |
| Dimension | 1400 (L) × 200 (W) × 980 (H) mm |
| Infrared & Safety Sensor | 6 Infrared & 2 Safety Sensors (6-8 Pairs) |
| Traffic Direction | Bi-Directional |
| Flow Rate | 30 – 40 People / min |
| Life Cycle | 28 Million Times |
| Power Consumption | 40 – 60 W |
| Operating Temperature | -20°C to +70°C |
| Installation | Indoor & Outdoor Use |
