Description
| Make & Model | |
|---|---|
| Make | ewit |

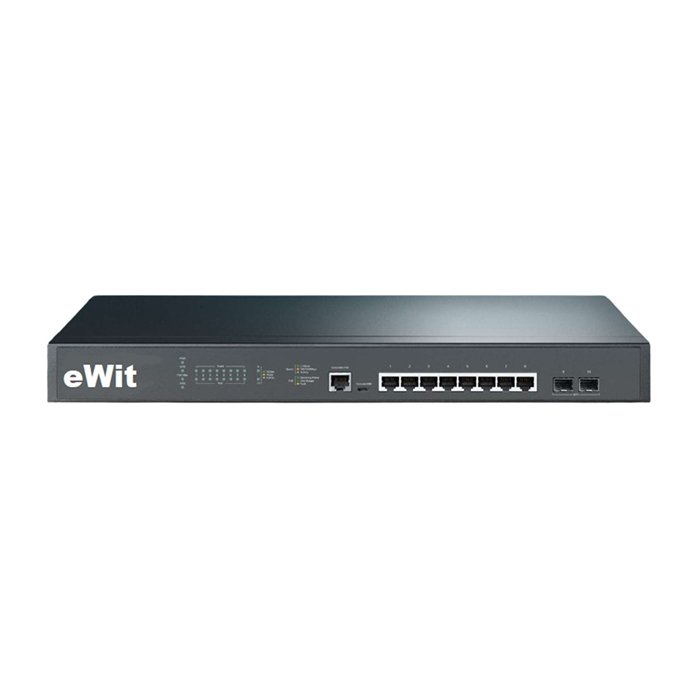

| Model | EW-8PMPOE10G2CR |
| Specification | |
| Type of Switch | Managed |
| Technology | PoE+ |
| Number of 1G Copper Ports | 8 |
| Number of 10G Copper Ports | 0 |
| Number of 1 G SFP Port (Uplink) | 2 |
| Specification | |
| Number of 10 G SFP+ Port (Uplink) | 0 |
| Multi-Gigabit Support | Yes |
| Redundant Power supply ( from day one) | Available |
| Console Port | Available |
| Switching Capacity-Non Blocking (Gbps) | 80 |
| Throughput (MPPS) | 160.7 |
| Operating System | Available |
| Dedicated Stacking Port/Slot ( from day one) | Not Available |
| Stacking Bandwidth (Gbps) | 0 |
| Basic Layer-3 Protocol | IP Interfaces: – IPv4: Max 256, IPv6: Max 256, Static Routing – Max 1,024, IPv6: Max 512, Proxy ARP, DHCP Server |
| Security Feature | Port Isolation, CPU-Defend, ARP Inspection (Dynamic ARP Inspection), DoS Defend, IP-MAC-Port Binding, IPv6-MAC |
| Management Protocol | Web-based GUI, Command Line Interface (CLI) through console port, telnet, SNMPv1/v2c/v3, SDM Template, SNTP, EEE |
| QoS | Class of Service, Bandwidth Control, Voice VLAN, User-Defined OUI, Smoother Performance, Action for Flows |
| Operating Temperature Range (Degree C) | 0–45 ℃ (32–113 ℉) |
| Operating Humidity (RH)(%) | -40–70 ℃ (-40–158 ℉) |
| IPv6 Ready from day one and dully certified | Yes |
| PoE Power Budget ( Watt ) | 1440 |
| On Site OEM Warranty | 1 Year |
| Additional Specification Parameters | |
| Configuration | Facility to download, upload config.bin/configuration file. Brand is reputed like existing D-Link network switch |
| Additional specification | 10G SFP+ Interface :-2 -Switching capacity :-80 Gbps -Store & forwarding trans. -Operating temp:- -5 to 50 deg C -Storage Temperature:- -40 ~ 70 deg C -Storage Humidity:- 0% ~ 95% RH -DRAM Size:- 256MB -FAN :-Smart fan – Web based GUI |
