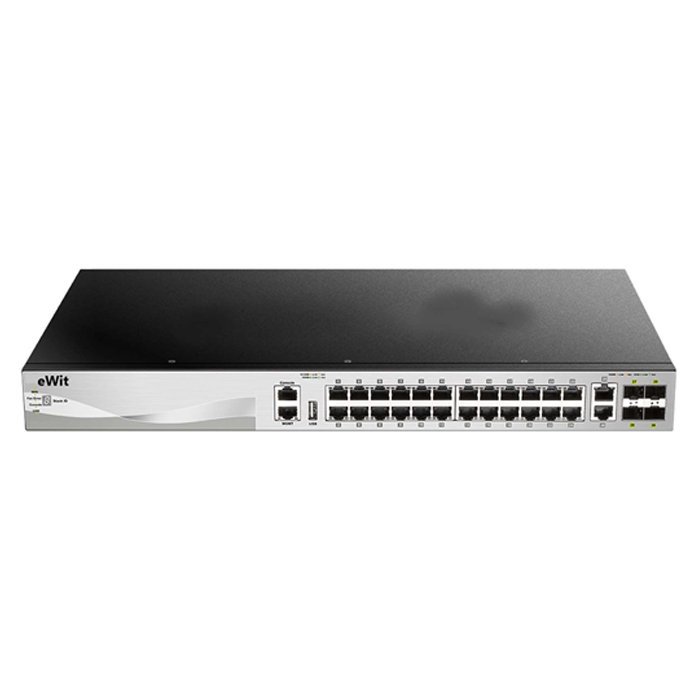

EW-24PMNPOE10G4CR

Description
Reviews (0)

Make & Model
Make	ewit
Model	EW-24PMNPOE10G4CR
Specification
Type of Switch	Managed
Technology	Non PoE
Number of 1G Copper Ports	24
Number of 10G Copper Ports	2
Number of 1 G SFP Port (Uplink)	0
Number of 10 G SFP+ Port (Uplink)	4
Multi-Gigabit Support	Yes
Redundant Power supply ( from day one)	Available
Console Port	Available
Switching Capacity-Non Blocking (Gbps)	168
Throughput (MPPS)	125
Operating System	Available
Dedicated Stacking Port/Slot ( from day one)	Supported
Stacking Bandwidth (Gbps)	40
Basic Layer-3 Protocol	Static routing, RIP, OSPF, ARP
Security Feature	Port security, Strom control, VLAN, ACL, MAC Port Binding
Management Protocol	CLI, Web GUI, SNMP v1,v2c,v3, Telnet, SSH
QoS	802.1p, SP, WRR, Bandwidth Control
Operating Temperature Range (Degree C)	-5 to 50° C
Operating Humidity (RH)(%)	10% to 90% RH
IPv6 Ready from day one and dully certified	Yes
PoE Power Budget ( Watt )	0
On Site OEM Warranty	1 Year
Additional Specification Parameters
Configuration	Facility to download, upload config.bin/configuration file. Brand is reputed like existing D-Link network switch
Warranty	1 + year
Additional specification	SSH, SSL: Yes 4 x 10GBASE-T/SFP+ Combo ports Interface: 100BaseTX/1000Base-T/10GBase-T 10G SFP+ interface: 4 Auto MDI/MDIX: Yes CPU speed: Min 1.2 GHz DRAM size: Min 512MB Flash Memory Size: Min 128 (Nand Flash) Switching capacity: 480 Gbps Operation Humidity: 0% ~ 95% RH Storage Humidity: 0% ~ 95% RH Standby Power Consumption: 85.1 W Storage Temperature: -40 ~ 70 deg C
Special features	Network Time Protocol (NTP), Simple Network Time Protocol (SNTP), Precision Time Protocol (PTP) protocol should be provided Web-based GUI: Yes Command Line Interface (CLI): Yes Basic Layer-3 Protocol: 255 static ARP entries Static route: 64 IPv4 static routes, 32 IPv6 static routes 4 IP Interface Security Feature: IPv6 DHCP snooping, Time-based ACL, 802.1X, SSH v2 # SSL v1/2/3 Port security, ARP inspection — IP inspection
Operating parameters	Management Protocol: Telnet Server, SNMP v1/v2c/v3 # SNMP traps # System log # RMON v1 # RMON v2 # LLDP, FULL CLI QoS: 8 outbound queues, Queue handling — Strict priority — Weighted Round Robin (WRR) Operating Temperature Range (Degree C): (-5 to 50°C) Operating Humidity RH %: 0% to 95% RH IPv6 Ready from day one and dully certified: Yes
