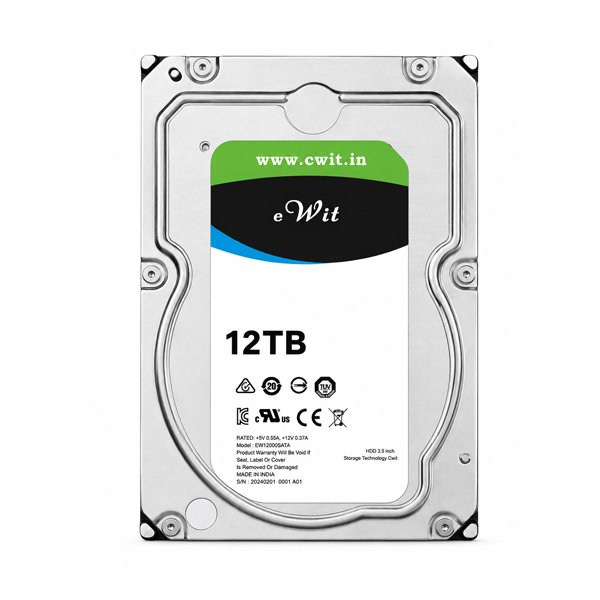

EW-12000HD12
With eWit surveillance storage, you have a drive engineered for high temperature, always-on surveillance systems so you can rely on quality video playback when you need it most. Whether you’re protecting loved ones or monitoring your business, eWit offers performance you can trust. eWit Storage Solutions – With surveillance systems, nothing but the best is good enough. The eWit 3.5-inch EW-10000HD10 is built to meet the highest demands. With support for up to 64 high resolution surveillance video cameras simultaneously and up to 12 TB capacity, it brings everything into clear view. Each eWit products is built with the highest-quality components and has passed rigorous tests to ensure 24 x 7 reliability and performance. That’s eWit quality you can trust under the harshest working conditions.
HIGHLIGHTS
- 3.5″ SATA Hard Drive
- 5400 rpm/5700rpm/7200rpm
- Up to 256 MB buffer
- Capacity up to 12TB
- Support for up to 64 cameras per drive
- All Frame technology
- Up to 16 AI channels for Deep Learning analytics on AI-enabled NVRs (12TB & 16TB capacities)
- 24/7 operation
| Type | Internal |
|---|---|
| Form Factor | 3.5″ |
| Advanced Format (AF) | Yes |
| Tarnish Resistant Components | Yes |
| Capacity | 12 TB |
| Cameras Support | 64 |
| No. of USB 2 Port | 0 |
| Interface | SATA 6 Gb/s |
| Buffer to Host | 150 MB |
| Workload Rating | 180 TB/year |
| OS Supported | Windows |
| NVR Ready | Yes |
| Bay Count Support | 8 |
| Cache | 256 MB |
| Performance Class | 5400 / 5700 / 7200 RPM |
| MTBF | 1,000,000 Hours |
| Nonrecoverable Read Errors per Bits Read, Max | <1 per 1015 |
| Load/Unload Cycle | 600,000 |
| Water Resistant | No |
| Shock Resistant | No |
| Weight | 1380 Grams |
| Wattage | 12 Watts |
| Voltage Tolerance (5V) | ±5% |
| Voltage Tolerance (12V) | ±10% |
| Operating Temperature Range | -10°C to +65°C |
| Operating Humidity | 95% RH |
| Certification | ISO, CE, FCC, ROHS |
| Country of Origin | India |
