Description
| Make & Model | |
|---|---|
| Make | ewit |

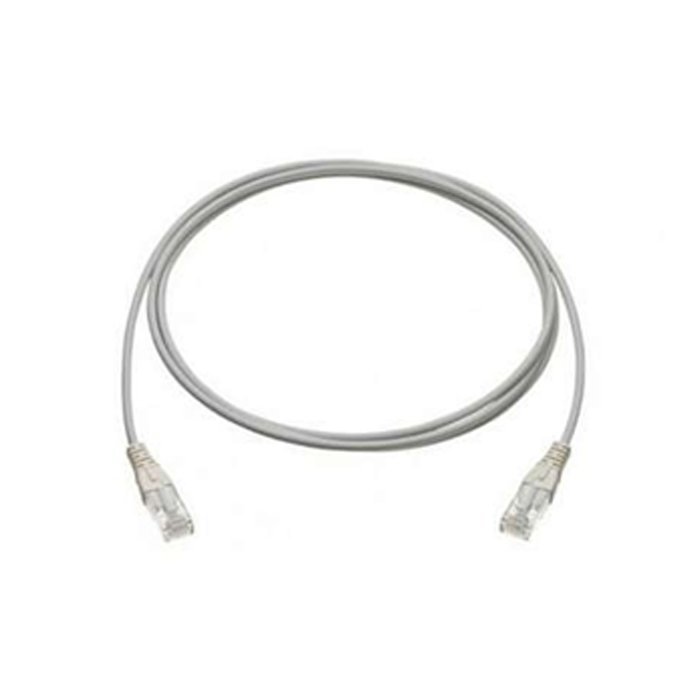

| Model | Cat 6 patch cord |
| GENERIC | |
| Cate 6 patch cord conforming to ANSI/TIA/EIA-568 C.2 or ISO/IEC:11801 latest | Yes |
| Patch cord type : Category 6 Unshielded/Unshielded twisted pair or Category 6 Foiled/Unshileded twisted pair | CAT6 U/UTP |
| Patch cord colour | Grey |
| Conductor diameter | 24 to 26 AWG |
| Length of Patch cord (Mtrs) | 1.0 |
| CONSTRUCTIONAL | |
| Applications: 0BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3) , 100VG- AnyLAN (IEEE802.12), 250 MHz Broadband Video, Voice, T1, ISDN, 155/ 622 Mbps ATM , Power over Ethernet (POE, POE+, 4 PPOE) |
Yes |
| Termination type / Connection type | Insulation Piercing Connection (IPC) |
| Modular plug | RJ45 |
| Plug insertion durability | ≥ 750 mating cycles” |
| Conductor Materail | Stranded copper |
| Conductor Insulation Material | Polyethelene |
| Cable jacket material | Fire retardant PVC |
| Storage temperature range | -20 deg.C to +60 deg.C |
| Operating temperature range | -20 deg.C to +60 deg.C |
| CERTIFICATIONS | |
| Category 6 pacth cord shall have valid verified certificate in channel from ETL /3P /GHMT /Delta/Intertek /UL as per CAT 6 standards ANSI//TIA/EIA-568 C.2 latest or ISO/IEC:11801 latest |
Yes |
| If “Yes” Certificate number – Must declare | YES |
| UL Marking on Cable | Yes |
| Availability of complete and satisfactory type test Report from Central Government / NABL/ ILAC accredited laboratory as per Governing Specification | Yes |
| Test report number | 102617288 |
| Report date | 3.3.2018 |
| Name and address of lab | BANGLORE |
| All the test reports shall furnish to the buyer/consignee on demand | Yes |
